Allen-Bradley 1746-IB16/C Replacement for SLC 500

Product Overview

Allen-Bradley 1746-IB16/C Replacement for SLC 500: Smooth Migration & Legacy System Upgrade

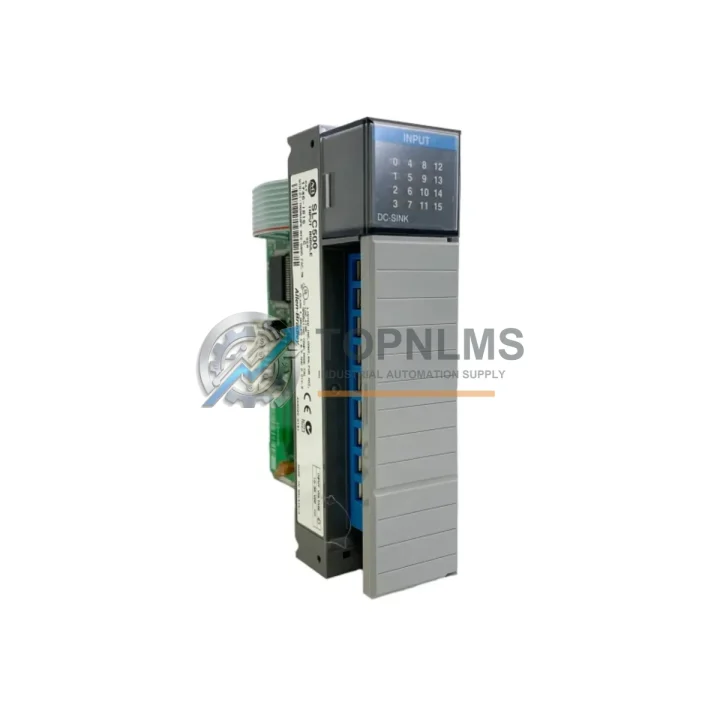

The Allen-Bradley 1746-IB16/C is a 16-point, 24VDC sink (NPN) digital input module designed for the SLC 500 modular chassis platform. As Rockwell Automation progressively phases out legacy SLC 500 hardware, facilities running aging 1746-series racks face increasing pressure to source reliable replacement modules before production continuity is compromised. This listing provides a verified, tested 1746-IB16/C replacement unit — fully compatible with the original wiring harness, I/O addressing scheme, and RSLogix 500 program structure — enabling a drop-in swap with minimal engineering intervention and zero re-programming of the existing ladder logic.

Whether your plant is executing a like-for-like spare-parts replacement to extend the life of an existing SLC 500 system, or staging a phased migration toward a ControlLogix or CompactLogix platform, the 1746-IB16/C serves as the critical bridge module that keeps your control cabinet operational during the transition window. Field engineers consistently report that the most time-consuming aspect of SLC 500 maintenance is sourcing authentic, revision-matched modules on short notice. TOPNLMS maintains ready stock of the 1746-IB16/C and ships globally within 24–48 hours of order confirmation.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful SLC 500 migration or spare-parts replacement rarely involves a single module in isolation. In practice, field engineers sourcing the 1746-IB16/C are simultaneously managing a broader set of hardware dependencies within the same control cabinet. The 1746-IB16/C installs into a 1746-A7 or 1746-A10 modular chassis, which is typically powered by a 1746-P4 power supply module — both of which should be inspected and potentially replaced during any planned maintenance window to avoid cascading failures.

On the output side, the 1746-IB16/C is commonly paired with a 1746-OB16 16-point 24VDC source output module or a 1746-OW16 relay output module for mixed discrete I/O applications. Analog signal conditioning requirements in the same rack are typically handled by the 1746-NI4 analog input module or the 1746-NO4I analog output module, both of which share the same backplane slot form factor and are addressable through the same RSLogix 500 project file.

Communication between the SLC 500 processor and upstream SCADA or DCS systems is most commonly managed through the 1747-SDN DeviceNet Scanner module or the 1747-KE DH-485 to RS-232 interface module. If the migration path leads toward a ControlLogix platform, a 1756-DHRIO ControlLogix DH+/Remote I/O bridge module can be introduced to maintain communication with existing SLC 500 remote I/O drops during the transition period, avoiding a full cutover and the associated downtime risk.

For facilities where the SLC 500 processor itself — such as the 1747-L541 or 1747-L553 — is approaching end-of-life, the 1746-IB16/C replacement can serve as a stabilizing measure while a parallel ControlLogix or CompactLogix migration is planned. In such scenarios, the existing field wiring, terminal blocks, and I/O module slots remain unchanged, and only the processor and communication modules are upgraded in a subsequent phase. This staged approach significantly reduces the risk of a full-system cutover and allows production to continue uninterrupted.

Retrofit Guidance FAQ

Q: Will the 1746-IB16/C work as a direct replacement without modifying my RSLogix 500 program?
A: Yes. The 1746-IB16/C uses the same I/O addressing structure (I:x.0 word) as all previous revisions of the 1746-IB16. No ladder logic changes are required. Simply power down the chassis, swap the module, and resume operation.

Q: Is the field wiring connector compatible with the original module?
A: Yes. The 1746-IB16/C uses the same 40-pin removable wiring arm (1746-RT25 or equivalent). Your existing field wiring harness can be transferred directly to the replacement module without re-termination.

Q: What communication protocols does the SLC 500 system support with this module installed?
A: The SLC 500 platform supports DH+ (Data Highway Plus), DH-485, and RS-232 DF1 protocols at the processor level. The 1746-IB16/C is a discrete I/O module and communicates exclusively over the SLC 500 backplane — it does not require independent protocol configuration.

Q: Can this module be used in a ControlLogix or CompactLogix chassis?
A: No. The 1746-IB16/C is designed exclusively for the 1746-series SLC 500 modular chassis. It is not physically or electrically compatible with 1756 ControlLogix or 1769 CompactLogix chassis. For ControlLogix migrations, a 1756-IB16 or 1756-IB32 module is the appropriate replacement.

Q: How do I verify the revision level of the module I receive?
A: The revision letter (e.g., /C) is printed on the module label and encoded in the catalog number. TOPNLMS ships the revision specified in the order. If your application requires a specific revision for firmware compatibility, please confirm at the time of order.

Q: What is the physical installation space requirement?
A: The 1746-IB16/C occupies a single slot in any 1746-series chassis (A4, A7, A10, or A13). No adjacent slot clearance is required. The module dimensions and mounting mechanism are identical across all 1746 I/O modules.

Warranty Assurance

Every 1746-IB16/C unit shipped by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each module undergoes a functional verification process including backplane communication check, input channel continuity test, and visual inspection for physical damage or counterfeit indicators. Units that do not pass inspection are quarantined and never shipped.

In the event of a confirmed defect within the warranty period, TOPNLMS will arrange a replacement unit at no additional cost. Our after-sales response target is 24 hours for initial acknowledgment and 72 hours for resolution confirmation. For time-critical production environments, we recommend requesting an advance replacement unit, which can be shipped before the defective unit is returned, subject to a refundable deposit.

TOPNLMS sources 1746-IB16/C units from verified industrial surplus and authorized distribution channels. All units are stored in ESD-safe, climate-controlled warehousing to preserve module integrity. Certificates of conformance and test reports are available upon request for quality-assurance documentation requirements.

For procurement inquiries, bulk pricing, or technical pre-sales support, contact our industrial automation team directly.
