Allen-Bradley 1746-IA8 Replacement for SLC 500 Series: Smooth Migration & Legacy System Compatibility

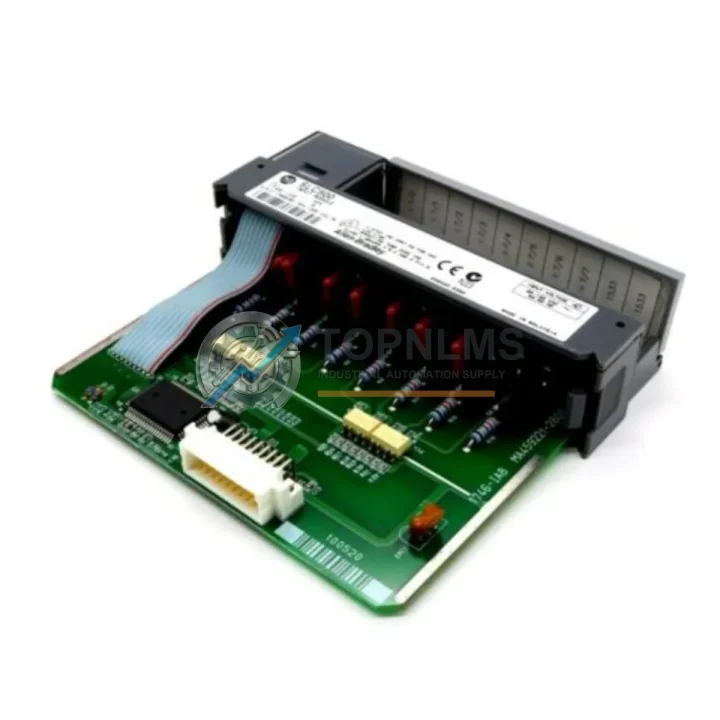

The Allen-Bradley 1746-IA8 is an 8-point, 120V AC discrete input module designed for the SLC 500 modular chassis platform. As Rockwell Automation progressively phases out legacy SLC 500 components, many facilities running SLC 5/03, SLC 5/04, and SLC 5/05 processors are facing the challenge of sourcing reliable replacement modules without triggering a full system overhaul. The 1746-IA8 remains one of the most widely deployed AC input modules in North American and Asia-Pacific manufacturing environments, and its direct replacement is critical to maintaining production continuity.

At TOPNLMS, we supply tested and verified 1746-IA8 modules to support your migration strategy — whether you are performing a like-for-like swap of a failed module, building a spare-parts buffer, or executing a phased upgrade from an older SLC 500 chassis to a more current control architecture. Each unit is inspected prior to shipment and backed by a 12-month warranty.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful SLC 500 migration rarely involves a single module. In most retrofit projects, the 1746-IA8 replacement is part of a broader I/O refresh that may also include discrete output modules such as the 1746-OB8 (8-point 24V DC output) or the 1746-OA8 (8-point 120V AC output), which share the same chassis slot and RTB wiring convention. Engineers upgrading aging control panels often replace the entire I/O complement in a single maintenance window to reduce future unplanned downtime.

For facilities migrating from SLC 500 to the ControlLogix or CompactLogix platform, the 1746-IA8 is frequently used as a transitional module while the new 1756-IB16 or 1769-IQ16 I/O modules are being commissioned in parallel. During this bridge period, the existing SLC 500 chassis — typically a 1746-A10 or 1746-A13 rack — continues to handle field wiring, while the new processor handles logic execution via a 1747-SN SLC 500 Remote I/O Scanner or a 1756-DHRIO Data Highway Plus / Remote I/O bridge module.

Power supply integrity is equally important during any I/O migration. The 1746-P2 or 1746-P4 SLC 500 power supply modules should be inspected and replaced if they are approaching end-of-life, as an unstable backplane voltage will cause intermittent faults even with new I/O modules installed. Similarly, if your control cabinet includes a 1747-L553 or 1747-L543 SLC 5/05 or 5/04 processor, verifying firmware revision compatibility with the replacement I/O module is a recommended pre-commissioning step.

For sites that rely on DeviceNet or DH-485 field networks, the 1747-SDN DeviceNet Scanner and 1747-AIC Advanced Interface Converter remain common companion components in SLC 500 panels. These communication modules are unaffected by an I/O module swap and do not require reconfiguration when replacing the 1746-IA8 on a like-for-like basis.

Retrofit Guidance FAQ

Q: Do I need to modify my RSLogix 500 program when replacing the 1746-IA8?
A: No. A direct 1746-IA8 replacement preserves the existing I/O address mapping. The module occupies the same chassis slot and uses the same logical address (e.g., I:1.0). No ladder logic changes are required.

Q: Is the wiring terminal block interchangeable?
A: Yes. The 1746-IA8 uses a standard removable terminal block (RTB). If the original RTB is intact, it can be transferred directly to the replacement module, eliminating the need to re-terminate field wiring and significantly reducing installation time.

Q: Can this module be used in a mixed-voltage SLC 500 chassis?
A: Yes. SLC 500 modular chassis support mixed I/O module types in any slot. The 1746-IA8 (120V AC input) can coexist in the same chassis with DC input modules (e.g., 1746-IB8), analog modules (e.g., 1746-NI8), and output modules without any slot restrictions.

Q: What is the input signal delay and how does it affect my application?
A: The 1746-IA8 has a nominal input filter delay of approximately 10ms, consistent with the original specification. For high-speed sensing applications, consider the 1746-ITB16 fast input module. For standard conveyor, pump, and valve control applications, the 1746-IA8 delay is within acceptable limits.

Q: How do I verify the module is functioning after installation?
A: After seating the module in the chassis and powering up, use RSLogix 500 online monitoring to verify that input bits toggle correctly when field devices are energized. The module’s LED indicators (one per input point) provide a quick visual confirmation of signal state without requiring a programming terminal.

Warranty Assurance

Every 1746-IA8 module shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to shipment, each unit undergoes a functional inspection to verify backplane connector integrity, terminal block condition, and LED indicator operation. Modules that do not pass inspection are not shipped.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund within the warranty period. Our after-sales response target is 24 hours for initial acknowledgment and 72 hours for resolution confirmation. We support customers across multiple time zones and can coordinate with your maintenance team to minimize the impact on production schedules.
