Allen-Bradley 1746-HT Replacement for SLC 500

Product Overview

Allen-Bradley 1746-HT Replacement for SLC 500: Smooth Migration, Zero Compromise

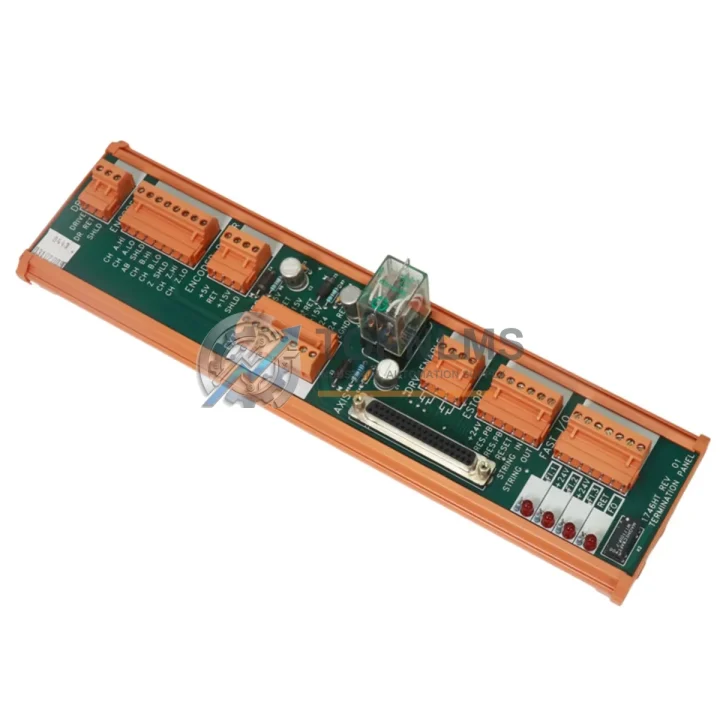

The Allen-Bradley 1746-HT is a dedicated I/O termination panel engineered for the SLC 500 modular I/O system, providing a structured, field-wiring interface that simplifies installation, reduces commissioning time, and supports clean, maintainable wiring in demanding industrial environments. As legacy SLC 500 systems approach end-of-life or require component-level replacement, the 1746-HT remains a critical spare — enabling engineers to restore full I/O functionality without rewiring field devices, reprogramming controllers, or modifying cabinet layouts.

For facilities running continuous production lines, the ability to swap a termination panel without disrupting field wiring is not a convenience — it is an operational necessity. The 1746-HT is designed precisely for this scenario: its screw-terminal field-wiring interface is physically and electrically compatible with the SLC 500 I/O chassis, allowing replacement to proceed during a planned maintenance window with minimal downtime exposure.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful SLC 500 migration or component replacement rarely involves a single part. The 1746-HT termination panel works in concert with a broader ecosystem of Allen-Bradley SLC 500 components, and understanding these interdependencies is essential for a smooth retrofit.

In most field installations, the 1746-HT is paired with discrete I/O modules such as the 1746-IA16 (16-point 120V AC input) or the 1746-OB16 (16-point 24V DC output), which plug directly into the SLC 500 modular chassis. The termination panel provides the field-side screw terminals that connect to sensors, actuators, solenoids, and field instruments — meaning that when the 1746-HT is replaced, none of these field connections need to be disturbed.

The SLC 500 chassis itself — available in 4-slot, 7-slot, 10-slot, and 13-slot configurations such as the 1746-A4 or 1746-A13 — houses the processor and I/O modules. If a chassis replacement accompanies the termination panel upgrade, the 1746-HT’s wiring harness transfers directly, preserving the existing field-wiring investment. The SLC 5/03 (1747-L532) and SLC 5/05 (1747-L553) processors, which support DH-485 and Ethernet/IP communications respectively, remain fully compatible with the 1746-HT without any programming changes.

For facilities also upgrading their communication infrastructure, the 1747-SDN DeviceNet Scanner or the 1747-KE DH-485/RS-232C Interface Module can be added to the same chassis without affecting the termination panel’s function. Similarly, the 1746-P2 or 1746-P4 power supply modules, which provide regulated 24V DC backplane power to the SLC 500 system, are unaffected by a 1746-HT swap and continue to power the I/O modules normally.

In control cabinets where signal isolation is required — particularly in environments with high electromagnetic interference from variable frequency drives, motor starters, or high-current switching equipment — signal isolators and surge protection devices are often installed between the 1746-HT terminals and field wiring. These passive protection components remain in place during a termination panel replacement, further reducing retrofit complexity.

For customers transitioning from older fixed SLC 500 platforms (such as the 1747-L20 or 1747-L30) to the modular SLC 500 architecture, the 1746-HT represents a key enabler: it allows field wiring from the legacy system to be reconnected to the new modular I/O without re-termination, significantly reducing commissioning labor and the risk of wiring errors during cutover.

Retrofit Guidance FAQ

Q1: Is the 1746-HT a direct drop-in replacement — will existing field wiring connect without modification?
Yes. The 1746-HT uses a standard screw-terminal field-wiring interface compatible with the SLC 500 modular I/O system. In a like-for-like replacement, field wiring connects to the same terminal positions without re-termination. Engineers should verify terminal labeling against the existing wiring diagram before reconnection, as a standard commissioning precaution.

Q2: Does replacing the 1746-HT require any changes to the SLC 500 controller program or I/O configuration?
No. The 1746-HT is a passive termination panel with no active logic, firmware, or addressable parameters. The SLC 500 processor and RSLogix 500 program are unaffected. I/O addressing, rung logic, and communication settings remain unchanged after replacement.

Q3: Is the 1746-HT compatible with both AC and DC I/O modules in the SLC 500 system?
Yes. The termination panel is compatible with the full range of 1746-series I/O modules, including AC input (1746-IA), DC input (1746-IB, 1746-IV), AC output (1746-OA), DC output (1746-OB, 1746-OV), and analog I/O modules. Compatibility should be confirmed against the specific I/O module’s wiring diagram for terminal assignment.

Q4: What if the physical cabinet space has been modified since the original installation — will the 1746-HT still fit?
The 1746-HT conforms to the standard SLC 500 modular I/O form factor and DIN-rail mounting dimensions. In most cases, it fits without cabinet modification. If the cabinet has been significantly altered, verify the available panel depth and terminal clearance against the 1746-HT installation drawing before ordering.

Warranty Assurance

Every Allen-Bradley 1746-HT shipped by TOPNLMS is covered by a 12-month warranty against functional defects, covering the full period from the date of shipment. Prior to dispatch, each unit undergoes a pre-shipment functional inspection to verify terminal integrity, mechanical condition, and compatibility markings. Units that do not pass inspection are not shipped.

In the event of a warranty claim, TOPNLMS provides direct replacement support. Customers are not required to navigate third-party RMA processes — our technical team handles warranty cases directly, with a target response time of one business day. Replacement units are dispatched from stock, minimizing the impact on production schedules.

For customers managing critical spare parts programs, TOPNLMS maintains ongoing inventory of SLC 500 components including the 1746-HT, supporting both immediate emergency orders and planned procurement cycles. Fast international shipping is available to minimize lead time for facilities outside mainland China.

Our procurement assurance commitment: verified stock, pre-shipment testing, 12-month warranty, direct after-sales support, and transparent communication at every stage of the order process.
