Allen-Bradley 1746-HSTP1 Ruggedized Stepper Control Module

Product Overview

Allen-Bradley 1746-HSTP1 Ruggedized Stepper Control Module: Industrial Resilience for Harsh Environments

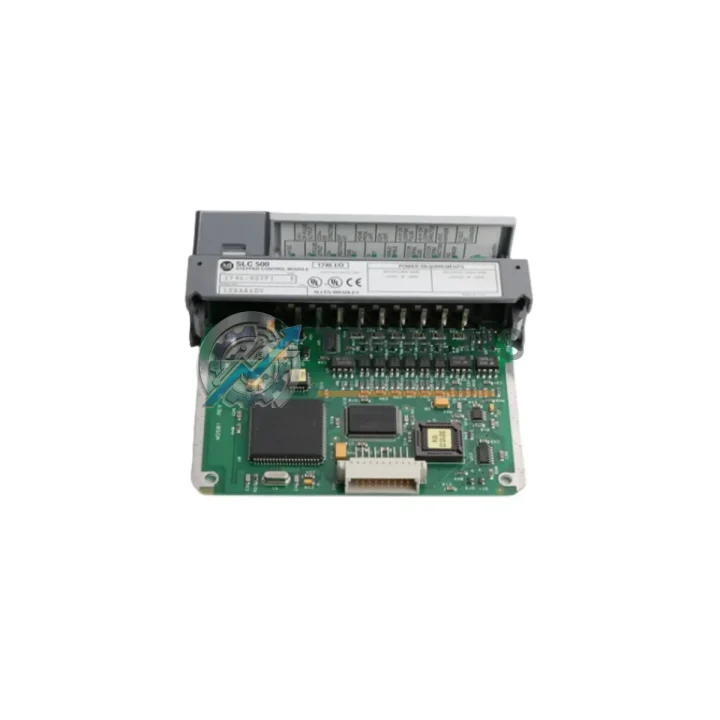

The Allen-Bradley 1746-HSTP1 is a single-axis stepper control module engineered for the SLC 500 programmable controller platform — one of Rockwell Automation’s most proven and widely deployed control architectures in industrial automation. Designed to deliver precise open-loop stepper motor control directly from the SLC 500 backplane, the 1746-HSTP1 is built to perform reliably in environments where temperature extremes, humidity, vibration, airborne particulates, and electromagnetic interference are everyday realities.

In continuous production lines, heavy manufacturing, and process-critical facilities, motion control reliability is non-negotiable. The 1746-HSTP1 integrates seamlessly into SLC 500 chassis configurations — including the 1746-A4, 1746-A7, 1746-A10, and 1746-A13 — and communicates natively with the SLC 5/03, 5/04, and 5/05 processors. Its deterministic pulse-and-direction output architecture ensures that stepper drives receive clean, noise-immune command signals even in electrically noisy environments typical of motor control centers, variable frequency drives, and high-current switching equipment.

Rugged Specifications Table

Comprehensive Protection Solutions

The 1746-HSTP1 does not operate in isolation — it is one critical node in a broader SLC 500 control system architecture. In a typical control cabinet deployment, it works alongside the 1746-OB16 digital output module and 1746-IB16 digital input module to handle discrete I/O for limit switches, proximity sensors, and safety interlocks. The 1746-P4 power supply provides stable, regulated backplane power to the entire chassis, ensuring that voltage fluctuations from heavy machinery startups do not propagate into the control logic.

For applications requiring network connectivity, the 1747-SDN DeviceNet Scanner module or the 1747-SCNR Remote I/O Scanner can be added to the same chassis, enabling the 1746-HSTP1 to participate in distributed control architectures across large plant floors. In facilities where the SLC 500 system must communicate upstream to a supervisory SCADA layer, the 1747-KE DH-485 to RS-232C Interface Module bridges the communication gap reliably.

On the motion side, the 1746-HSTP1 drives stepper motor drivers such as the 2098-DSD-005 Ultra 3000 series or compatible third-party stepper drives, delivering clean pulse trains even in environments with significant conducted and radiated EMI from nearby PowerFlex 40 or PowerFlex 400 variable frequency drives. Proper grounding of the control cabinet, combined with the use of 1492-CABLE series pre-wired terminal blocks and shielded cabling, further enhances the system’s immunity to interference.

For safety-critical zones, the 1746-HSTP1 is often deployed alongside 440C GuardMaster safety relays and 1791DS safety I/O modules, ensuring that the stepper axis can be safely de-energized and monitored as part of a machine safety circuit compliant with IEC 62061 or ISO 13849 requirements.

Application in Critical Infrastructure

In oil and gas upstream and midstream facilities, the 1746-HSTP1 is used to control valve actuators and metering pump drives where precise positioning is required under continuous duty cycles. Its tolerance for wide temperature swings and resistance to vibration from compressor stations and pump skids makes it a dependable choice for remote unmanned installations.

In mining and mineral processing, the module controls conveyor positioning systems, ore sampling mechanisms, and crusher feed rate actuators. The harsh combination of coal dust, silica particulates, high humidity, and ground-loop electrical noise in underground and surface mining environments demands a module with proven EMI immunity — a characteristic the 1746-HSTP1 delivers through its robust backplane isolation design.

In power generation and electrical utilities, the SLC 500 platform — with the 1746-HSTP1 as a motion control element — manages turbine auxiliary systems, cooling tower fan positioning, and switchgear control sequences. The module’s deterministic scan-time behavior ensures that motion commands are executed within predictable time windows, a critical requirement for grid-synchronized operations.

In water and wastewater treatment plants, the 1746-HSTP1 drives chemical dosing pump actuators and filter backwash valve positioners. The module’s ability to operate continuously in high-humidity environments — common in wet well pump stations and chemical storage areas — without performance degradation is a key operational advantage.

In metallurgy and steel production, where electromagnetic interference from induction furnaces and large DC drives is extreme, the 1746-HSTP1’s noise-immune pulse output architecture ensures that stepper positioning commands for rolling mill guides, ladle transfer cars, and billet handling systems are executed accurately, preventing costly misalignment and production downtime.

Security & Quality FAQ

Q1: What warranty coverage does TOPNLMS provide for the 1746-HSTP1?
All 1746-HSTP1 units supplied by TOPNLMS are covered by a 12-month warranty from the date of shipment. This covers functional defects identified under normal operating conditions. Our technical team provides pre-shipment inspection and functional verification for every unit, and we support warranty claims with direct replacement or full refund options.

Q2: How is each unit tested before shipment?
Every 1746-HSTP1 module undergoes a multi-point pre-shipment inspection including visual inspection for physical integrity, backplane connector verification, and where applicable, functional bench testing against known-good SLC 500 chassis configurations. Units are shipped in anti-static packaging with protective foam inserts to prevent transit damage.

Q3: Is the 1746-HSTP1 compatible with my existing SLC 500 system?
Yes. The 1746-HSTP1 is compatible with all standard SLC 500 chassis (1746-A4 through 1746-A13) and all SLC 5/01 through 5/05 processors. It is programmed using RSLogix 500 software. If you are integrating into an existing system and need compatibility confirmation for a specific chassis or processor revision, contact our technical team at [email protected] before ordering.

Q4: Can TOPNLMS support long-term or repeat procurement of the 1746-HSTP1?
Yes. TOPNLMS maintains ongoing inventory of SLC 500 series modules including the 1746-HSTP1 to support MRO (Maintenance, Repair & Operations) procurement, emergency replacement, and planned lifecycle management programs. We can provide lead-time commitments and volume pricing for facilities requiring scheduled spare parts replenishment. Contact us at [email protected] or +86 18359293191 to discuss your supply requirements.
