Allen-Bradley 1746-HSCE2 Ruggedized Counter Module

Product Overview

Allen-Bradley 1746-HSCE2 Ruggedized Counter Module: Industrial Resilience for Harsh Environments

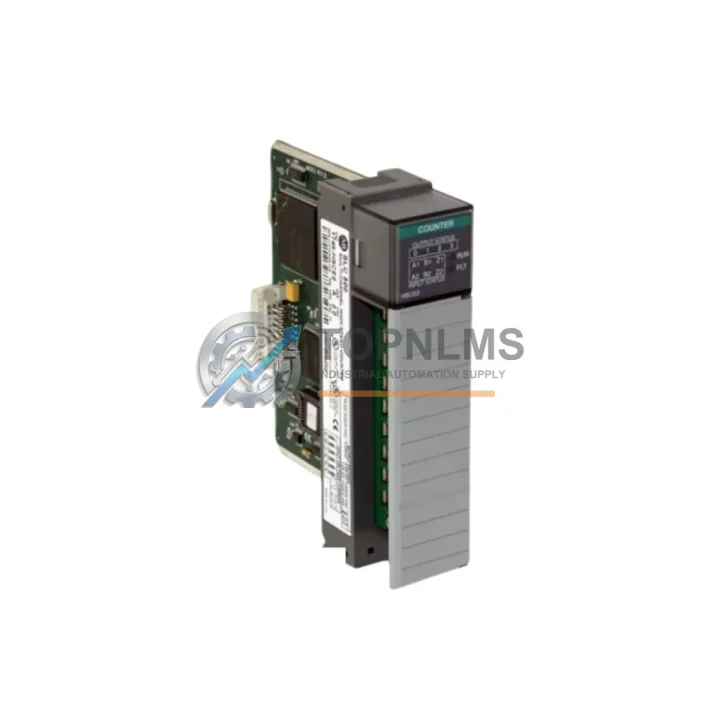

The Allen-Bradley 1746-HSCE2 is a dual-channel high-speed counter and encoder input module engineered for the SLC 500 programmable controller platform. Designed to operate reliably in the most demanding industrial environments — including high-temperature foundries, high-humidity water treatment facilities, dust-laden mining operations, and vibration-intensive heavy manufacturing lines — this module delivers precise pulse counting and quadrature encoder feedback where accuracy and uptime are non-negotiable.

Built to Rockwell Automation’s rigorous quality standards, the 1746-HSCE2 supports counting rates up to 1 MHz per channel, making it suitable for high-speed motion feedback, flow measurement, and position tracking in continuous production environments. Its robust hardware design provides inherent resistance to electromagnetic interference (EMI), a critical requirement in control cabinets co-located with variable frequency drives (VFDs), large motor starters, and high-current power distribution equipment. Whether installed in an offshore oil platform control room or a steel mill’s rolling line automation panel, the 1746-HSCE2 maintains signal integrity and counting accuracy without compromise.

In process industries such as oil and gas, petrochemical, and power generation, the 1746-HSCE2 is frequently deployed alongside the Allen-Bradley 1746-IB16 digital input module and the 1746-OB16 digital output module within the same SLC 500 chassis, forming a tightly integrated I/O subsystem. The module communicates seamlessly with the SLC 5/05 processor via the SLC 500 backplane, and its data is accessible through standard ladder logic instructions, simplifying integration into existing control programs without requiring specialized programming expertise.

For applications requiring coordinated motion or safety interlock logic, the 1746-HSCE2 is commonly paired with the Allen-Bradley 1746-SC4 serial communications module for upstream SCADA connectivity, and with the 1746-OW16 relay output module for direct actuator control based on counter threshold events. In safety-critical installations — such as chemical dosing systems or turbine overspeed protection — the module’s deterministic response time ensures that protective actions are triggered within the required safety time window.

The module’s dual-channel architecture allows simultaneous monitoring of two independent encoder or pulse-train sources, reducing the number of slots consumed in the SLC 500 chassis and lowering overall system cost. This is particularly valuable in compact control cabinets where rack space is at a premium. Each channel supports A, B, and Z (index) quadrature inputs, enabling full quadrature decoding for precise bidirectional position tracking — a capability essential in servo-assisted packaging lines, CNC material handling systems, and automated warehouse conveyors.

In mining and mineral processing environments, where conveyor belt speed monitoring and crusher rotation feedback are critical to production efficiency and equipment protection, the 1746-HSCE2 provides the reliable pulse input capability required to feed accurate data to the SLC 500 processor. When combined with the Allen-Bradley 1746-NI8 analog input module for temperature and pressure monitoring, and the 1746-NO4I analog output module for control signal generation, the SLC 500 system becomes a comprehensive process control solution capable of managing complex, multi-variable industrial processes.

Power utility substations and water treatment plants operating under IEC 61511 functional safety guidelines rely on the SLC 500 platform’s proven track record. The 1746-HSCE2, as a key I/O component, contributes to system availability by providing accurate feedback signals that allow the SLC 5/04 or SLC 5/05 processor to make informed control decisions. Its compatibility with the 1746-A13 thirteen-slot chassis and the 1746-P4 power supply ensures straightforward integration into both new installations and legacy system expansions.

For facilities managing spare parts inventories under a reliability-centered maintenance (RCM) program, the 1746-HSCE2 represents a high-value stocking item. Its role as a critical feedback interface means that an unplanned failure without a spare on hand can result in extended production downtime. TOPNLMS maintains verified stock of the 1746-HSCE2, with each unit subjected to functional testing prior to shipment to confirm channel integrity, counting accuracy, and backplane communication performance.

Rugged Specifications Table

Comprehensive Protection Solutions

A reliable SLC 500 control system is only as strong as its weakest I/O link. The 1746-HSCE2 is most effective when deployed as part of a fully integrated, protection-oriented control architecture. In a typical heavy-industry control cabinet, it operates alongside the Allen-Bradley 1746-IB32 32-point digital input module for field device status monitoring, and the 1746-OB32 digital output module for actuator command signals. Analog process variables — such as flow rates, pressures, and temperatures — are captured by the 1746-NI8 analog input module, while the 1746-NO4I provides 4–20 mA control outputs to positioners and control valves.

For installations requiring network connectivity, the 1747-AENTR EtherNet/IP adapter bridges the SLC 500 backplane to plant-level Ethernet networks, enabling real-time data exchange with Rockwell’s FactoryTalk View SCADA platform. In facilities where DeviceNet is the preferred fieldbus, the 1747-SDN DeviceNet scanner module provides seamless integration with distributed I/O nodes and intelligent field devices. Power integrity within the cabinet is maintained by the 1746-P7 high-capacity power supply, which delivers stable 24 VDC backplane power even under heavy I/O loading conditions.

Safety interlock functions are reinforced by the Allen-Bradley 1791DS-IB12 GuardLink safety I/O module in adjacent safety zones, while the 1746-OW16 relay output module provides dry-contact outputs for emergency stop circuits and alarm annunciators. Together, these components form a layered protection architecture that addresses signal accuracy, power stability, network transparency, and functional safety — all within a single, cohesive SLC 500 system.

Application in Critical Infrastructure

The 1746-HSCE2 has established a strong operational track record across the most demanding sectors of critical infrastructure. In oil and gas upstream operations, it monitors pump stroke counters and wellhead rotation sensors, providing the SLC 500 processor with the real-time data needed to optimize extraction rates and detect equipment anomalies before they escalate into failures. Offshore platform environments — characterized by salt-laden air, persistent vibration from wave action, and strict explosion-proof area classifications — place extreme demands on I/O hardware, and the 1746-HSCE2’s robust construction meets these challenges reliably.

In coal and hard-rock mining operations, the module tracks conveyor belt speed, crusher rotation, and hoist position with the precision required to prevent belt slip, overload trips, and hoist overrun events. Its high counting rate capability ensures that even at maximum conveyor speeds, no pulses are missed — a critical requirement for accurate tonnage measurement and production reporting. Underground mining installations, where diesel particulate, coal dust, and high humidity are constant environmental factors, benefit from the module’s sealed construction and industrial-grade component selection.

Power generation facilities — including thermal, hydroelectric, and combined-cycle gas turbine plants — use the 1746-HSCE2 for turbine speed monitoring, generator synchronization feedback, and auxiliary equipment position tracking. Water and wastewater treatment plants deploy it for flow totalizing, pump rotation monitoring, and chemical dosing pump stroke counting, where accurate measurement directly impacts regulatory compliance and public health outcomes. In steel and aluminum smelting operations, the module withstands the intense electromagnetic interference generated by arc furnaces and induction heating equipment, maintaining counting accuracy in environments where lesser hardware would produce erratic readings.

Security & Quality FAQ

Q1: What warranty coverage is provided with the 1746-HSCE2?
Every 1746-HSCE2 unit supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. This warranty covers functional defects identified under normal operating conditions consistent with Rockwell Automation’s published specifications. In the event of a warranty claim, TOPNLMS will arrange replacement or repair at no additional cost to the customer, subject to inspection and confirmation of the defect.

Q2: How is each unit tested before shipment?
All 1746-HSCE2 modules undergo a pre-shipment functional verification process that includes backplane communication testing, channel input response verification, and visual inspection for physical integrity. Modules sourced as surplus new are additionally inspected for storage condition compliance. Test records are available upon request for customers with traceability requirements under ISO 9001 or IEC 62381 procurement standards.

Q3: Is the 1746-HSCE2 compatible with all SLC 500 processors and chassis?
Yes. The 1746-HSCE2 is compatible with all SLC 500 series processors — including the SLC 5/01, 5/02, 5/03, 5/04, and 5/05 — and all standard SLC 500 chassis from the 1746-A4 (4-slot) through the 1746-A13 (13-slot). It is configured via RSLogix 500 software using standard ladder logic instructions. No special firmware or hardware modifications are required for integration into existing SLC 500 systems.

Q4: Can TOPNLMS support long-term supply and emergency replacement needs?
Yes. TOPNLMS maintains ongoing stock of the 1746-HSCE2 and other SLC 500 I/O modules to support both planned maintenance programs and emergency breakdown situations. For customers managing aging SLC 500 installations where Rockwell Automation has announced end-of-life status for certain components, TOPNLMS provides a reliable alternative supply channel with verified, tested inventory. Emergency orders can typically be processed and shipped within 24 hours of order confirmation.
