Allen-Bradley 1746-HS Ruggedized Motion Controller for Harsh Environments

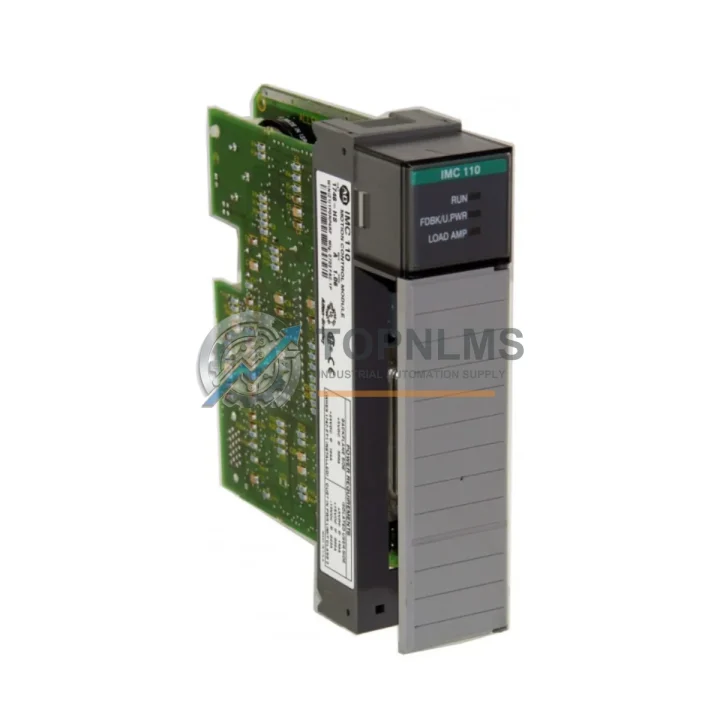

The Allen-Bradley 1746-HS IMC 110 Motion Controller Module is a high-performance, single-axis motion control solution engineered for the SLC 500 programmable controller platform. Designed to withstand the rigors of continuous industrial operation, the 1746-HS delivers precise closed-loop servo control in environments characterized by elevated temperatures, high humidity, airborne particulates, mechanical vibration, and electromagnetic interference (EMI). Whether deployed on a high-speed packaging line, a precision CNC machining cell, or a heavy-duty material handling system, this module provides the motion accuracy and system resilience that mission-critical automation demands.

At TOPNLMS, every 1746-HS unit is sourced through verified industrial supply channels, subjected to functional power-on testing, and shipped with a 12-month replacement warranty. Our inventory is maintained specifically to support urgent MRO (Maintenance, Repair & Operations) requirements, minimizing unplanned downtime for facilities that depend on SLC 500 architecture.

Rugged Specifications Table

Comprehensive Protection Solutions

The 1746-HS does not operate in isolation — it functions as the motion intelligence layer within a broader SLC 500 control architecture. In a typical control cabinet deployment, it works in close coordination with the 1746-OB16 digital output module and 1746-IB16 digital input module to manage discrete I/O signals for limit switches, home sensors, and fault interlocks. The servo drive interface connects to compatible drives such as the Kinetix 300 or third-party servo amplifiers via encoder feedback and analog command signals, enabling tight velocity and position loop closure.

For system-level power integrity — a critical factor in motion control stability — the 1746-P4 power supply provides regulated backplane power across the chassis, ensuring the 1746-HS and co-resident modules such as the 1746-NO4I analog output module receive clean, stable voltage even under fluctuating plant load conditions. In facilities with significant EMI exposure, such as those operating large variable frequency drives (VFDs) or welding equipment nearby, proper grounding of the 1746-A7 or 1746-A10 chassis is essential to protect the motion controller’s encoder signal integrity.

Communication between the SLC 500 rack and supervisory SCADA or MES systems is typically handled through the 1747-SDN DeviceNet Scanner Module or the 1747-AENTR EtherNet/IP Adapter, allowing real-time position data and fault status to be transmitted upstream without interrupting the motion control scan cycle. In safety-critical zones, the 1746-HS is often paired with a 1791DS-IB8XOBV4 GuardLink safety I/O module or a standalone safety relay module to enforce safe-stop and safe-speed functions in compliance with IEC 62061 or ISO 13849 requirements.

For facilities managing multiple motion axes across a production line, the 1746-HS is frequently deployed alongside the 1746-HSCE2 high-speed counter module for encoder-based position verification and the 1746-BAS BASIC module for custom sequencing logic — forming a complete, field-proven motion and control ecosystem within a single SLC 500 chassis.

Application in Critical Infrastructure

The Allen-Bradley 1746-HS has established a long service record across some of the most demanding industrial sectors globally. In oil & gas upstream and midstream facilities, it controls valve actuators and pump positioning systems where precise, repeatable motion is required under continuous 24/7 operation, often in Class I Division 2 (C1D2) classified areas when housed in appropriately rated enclosures. The module’s robust backplane design and tolerance for wide temperature swings make it well-suited for outdoor equipment shelters in desert or arctic climates.

In mining and mineral processing operations, the 1746-HS manages conveyor drive positioning, crusher feed control, and ore sorting actuators in environments laden with silica dust, coal particulates, and constant mechanical shock. Its slot-mount chassis integration means it benefits from the physical protection of the control cabinet while maintaining high-speed encoder feedback loops that would be disrupted by less robust designs.

Within power generation and electrical utilities, the module is used in turbine governor auxiliary systems and switchgear positioning applications, where motion accuracy directly affects grid stability. Water treatment and desalination plants rely on the 1746-HS for dosing pump control and filter backwash sequencing — applications where motion faults translate directly into process quality failures or regulatory non-compliance.

In metallurgy and heavy manufacturing — steel rolling mills, aluminum smelters, and forge press lines — the 1746-HS endures radiated heat, inductive noise from large motors, and floor-transmitted vibration that would compromise lesser motion controllers. Its proven compatibility with the broader SLC 500 ecosystem means that facilities with legacy infrastructure can extend the operational life of their control systems without costly platform migrations, protecting capital investment while maintaining production continuity.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is it enforced?
The TOPNLMS 12-month warranty covers functional failure under normal operating conditions. If a unit fails within the warranty period, we provide a direct replacement at no additional cost. Each unit is logged by serial number at the time of shipment, and warranty claims are processed via email with a typical turnaround of 3–5 business days for replacement dispatch.

Q2: How is each 1746-HS unit tested before shipment?
Every unit undergoes a power-on functional test to verify backplane communication, encoder interface continuity, and module self-diagnostics prior to packaging. Units that fail any test stage are quarantined and not offered for sale. Test records are retained internally and available upon request for quality-audited procurement processes.

Q3: Is this module compatible with my existing SLC 500 chassis and RSLogix 500 program?
The 1746-HS is designed for direct slot installation in any standard 1746-series chassis (A4, A7, A10, A13) and is programmed via RSLogix 500 using the IMC 110 instruction set. It is compatible with SLC 5/03, 5/04, and 5/05 processors. If you are migrating from an older revision of the 1746-HS, configuration parameters are preserved in the RSLogix 500 project file, making replacement straightforward with no re-programming required in most cases.

Q4: Can TOPNLMS support long-term or repeat procurement for MRO and spare parts programs?
Yes. TOPNLMS maintains standing inventory of the 1746-HS and related SLC 500 modules to support scheduled MRO programs, annual spare parts contracts, and emergency breakdown orders. We can provide lead-time commitments, batch pricing, and documentation packages (including test reports and country-of-origin certificates) to meet corporate procurement and quality assurance requirements. Contact our team to discuss a supply agreement tailored to your facility’s needs.
