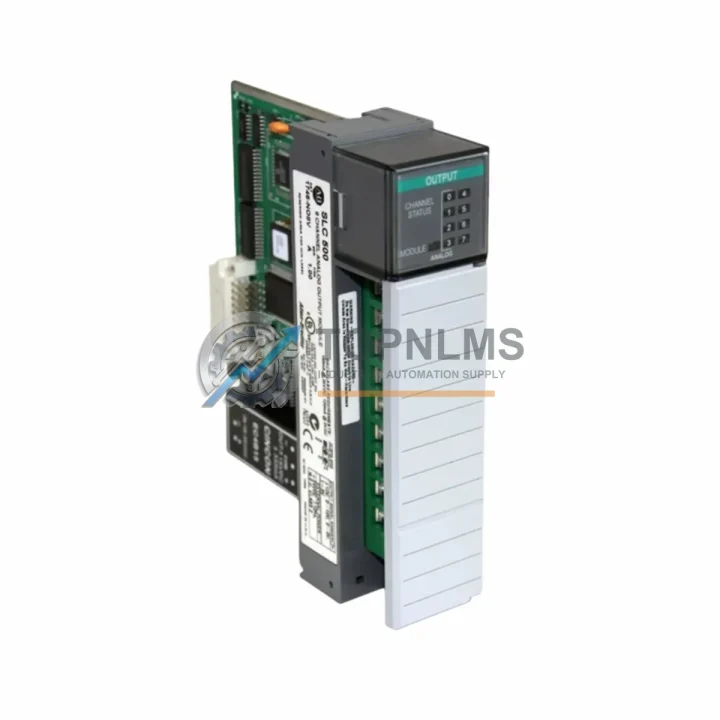

Allen-Bradley 1746-FIO4I Replacement for SLC 500

Product Overview

Allen-Bradley 1746-FIO4I Replacement for SLC 500: Smooth Migration, Zero Compromise

When a legacy SLC 500 control system reaches end-of-life or a critical I/O module fails on the production floor, every hour of unplanned downtime translates directly into lost output and escalating maintenance costs. The Allen-Bradley 1746-FIO4I is a combination analog input/output module designed for the SLC 500 fixed and modular chassis platform, providing 4 analog inputs and 2 analog outputs in a single slot — a compact, proven solution that continues to serve thousands of installed systems worldwide. Whether you are executing a planned migration away from aging SLC 5/03 or SLC 5/04 processors, or sourcing an emergency replacement to restore a halted line, the 1746-FIO4I remains the most direct path to system continuity.

At TOPNLMS, every 1746-FIO4I unit is sourced from verified supply channels, individually tested against factory electrical specifications, and shipped with a 12-month warranty. Our team understands that industrial buyers cannot afford uncertainty — so we eliminate it at every step from inspection to delivery.

Compatibility Comparison Table

Seamless Upgrade Solutions

Migrating from a fragmented legacy analog I/O architecture to the 1746-FIO4I is straightforward when the surrounding system components are properly accounted for. In most SLC 500 control cabinets, the 1746-FIO4I replaces two separate modules — typically a 1746-NI4 analog input module and a 1746-NO4I analog output module — freeing up a chassis slot that can be repurposed for additional I/O expansion or a 1746-BAS BASIC module for local data logging.

Before completing the swap, maintenance engineers should verify the SLC 500 chassis backplane integrity. The 1746-A4, 1746-A7, or 1746-A13 chassis models are all compatible, and the slot assignment in the RSLogix 500 I/O configuration tree must be updated to reflect the new module type. If the existing processor is a SLC 5/03 with a 1747-L532 CPU, the firmware revision should be confirmed to support the FIO4I’s data file structure — this is a common oversight during rushed replacements that can cause unexpected fault codes at startup.

Field wiring to the 1746-FIO4I uses the standard 1746-SCFIO4I wiring arm or equivalent terminal block, which in most installations can be transferred directly from the outgoing modules without re-termination, dramatically reducing changeover time. Signal cables connecting field instruments — pressure transmitters, flow meters, temperature transmitters, or valve positioners — remain connected throughout, provided the input range jumper settings on the new module match the outgoing configuration.

For facilities running a mixed SLC 500 and MicroLogix 1500 architecture, the migration path is equally clean. The 1764-LRP MicroLogix 1500 processor supports expansion I/O via the 1769 Compact I/O bus, and engineers planning a phased upgrade often source 1769-IF4 analog input modules and 1769-OF2 analog output modules alongside the 1746-FIO4I to standardize the analog I/O strategy across both platforms before committing to a full ControlLogix migration.

In control cabinets where a 1747-SN Remote I/O Scanner is in use, the 1746-FIO4I integrates without protocol changes — the scanner continues to address the slot as a standard analog I/O node. Similarly, if the system communicates upstream via a 1747-KE DH-485 to RS-232 interface module or a 1784-PCMK DH+ card, no communication reconfiguration is required after the module swap.

Power supply integrity is a critical checkpoint during any SLC 500 module replacement. The 1746-P4 or 1746-P7 power supply units should be load-checked after adding the 1746-FIO4I to confirm the 5 VDC backplane budget remains within specification. If the cabinet is already near capacity, this is an appropriate time to evaluate whether a supplemental 1746-P2 power supply or a chassis expansion is warranted before the system returns to production.

Every 1746-FIO4I shipped by TOPNLMS is tested under load conditions that simulate real backplane communication cycles, ensuring the module responds correctly to processor read/write commands before it leaves our facility. Units are packaged in anti-static protection with full documentation and are ready for same-day or next-business-day dispatch depending on order timing.

Retrofit Guidance FAQ

Q1: Can the 1746-FIO4I replace both a 1746-NI4 and a 1746-NO4I in a single chassis slot?
Yes. The 1746-FIO4I combines 4 analog inputs and 2 analog outputs in one module, occupying a single SLC 500 chassis slot. This consolidation is one of its primary advantages during retrofit projects where chassis space is limited. The RSLogix 500 I/O configuration must be updated to remove the two legacy module entries and add the FIO4I in the correct slot position.

Q2: Is the field wiring compatible with existing terminal blocks from the 1746-NI4 or 1746-NO4I?
In most cases, yes. The 1746-SCFIO4I wiring arm is the standard interface, and signal wiring from field instruments can typically be transferred without re-termination. Input range jumpers on the module must be set to match the signal type (current or voltage) before installation. Always verify jumper positions against the field instrument output specification before powering up.

Q3: Will the 1746-FIO4I work with all SLC 5/xx processor revisions?
The module is compatible with SLC 5/01 through SLC 5/05 processors. For SLC 5/03 and earlier, confirm the processor firmware supports the FIO4I data file format. RSLogix 500 software will flag any incompatibility during the I/O configuration step. If a firmware update is required, the 1747-L532 or 1747-L541 processors can be updated via the 1747-PIC programming cable or a 1784-U2DHP USB-to-DH+ adapter.

Q4: What does the 12-month warranty cover, and what is the replacement process?
The 12-month warranty covers all electrical and functional defects identified under normal operating conditions. Each unit is tested before shipment and ships with a test report on request. In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund within the warranty period. Contact our team at [email protected] with the order reference and fault description to initiate the process — typical response time is within one business day.

Warranty Assurance

TOPNLMS backs every Allen-Bradley 1746-FIO4I with a 12-month warranty from the date of shipment. This commitment reflects our confidence in the sourcing and testing process applied to every unit we handle. Pre-shipment testing covers backplane communication response, analog input accuracy across all four channels, analog output linearity on both output channels, and power consumption verification against the published 120 mA @ 5 VDC specification.

Units are shipped in original or equivalent anti-static packaging with clearly labeled channel configuration documentation. For urgent replacement orders, expedited shipping options are available to most global destinations, with tracking provided at the time of dispatch. Our after-sales team is reachable via email and phone for technical support during installation and commissioning, ensuring that your replacement project proceeds without unnecessary delays.

For procurement teams managing multi-site SLC 500 fleets, we recommend discussing blanket order arrangements that allow you to hold pre-tested stock at a fixed price — reducing both lead time risk and per-unit cost for ongoing maintenance programs.
