Allen-Bradley 1745-E102 Replacement/Upgrade Solution for SLC 150

Product Overview

Allen-Bradley 1745-E102 Replacement/Upgrade Solution for SLC 150: Smooth Migration from Legacy I/O Systems

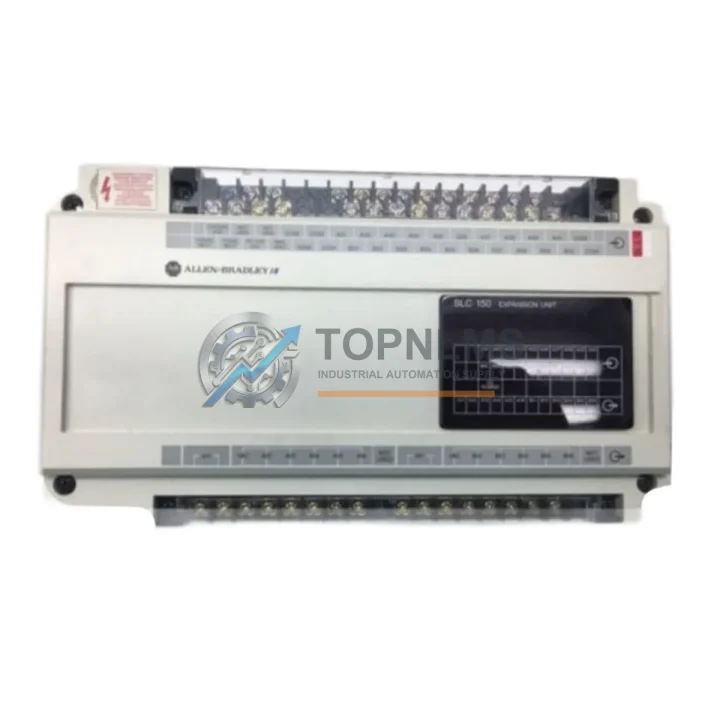

The Allen-Bradley 1745-E102 is a discrete I/O expansion unit designed for the SLC 150 programmable controller platform — one of Rockwell Automation’s earliest modular PLC families. As the SLC 150 series has reached end-of-life and spare parts become increasingly scarce, plant engineers and maintenance teams face mounting pressure to source reliable replacement units or plan a structured migration to a supported control architecture. TOPNLMS supplies the 1745-E102 as a direct replacement module, fully tested and backed by a 12-month warranty, enabling facilities to extend operational life or execute a controlled retrofit without unplanned downtime.

The 1745-E102 provides 16 discrete I/O points that expand the capacity of the SLC 150 base controller, the 1745-LP151 or 1745-LP152 CPU units. In legacy installations, this module is typically mounted adjacent to the processor in a compact DIN-rail or panel-mount configuration. Its 24 VDC input compatibility and relay output design make it a common fixture in conveyor control, packaging lines, material handling, and light assembly automation — environments where the SLC 150 platform was widely deployed throughout the 1980s and 1990s.

When sourcing a replacement 1745-E102, the primary concern is functional equivalence: identical I/O point count, matching terminal block pinout, and compatible backplane communication with the SLC 150 CPU. Our supplied units are inspected against original Allen-Bradley specifications, ensuring that field wiring — including 24 VDC sourcing inputs and relay output circuits — can be reconnected without modification. This eliminates the need to re-engineer terminal layouts or update field wiring documentation, significantly reducing commissioning time during an emergency replacement.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful SLC 150 migration rarely involves a single module swap. In most retrofit projects, the 1745-E102 replacement is one component within a broader system modernization effort. Facilities upgrading from the SLC 150 platform frequently require the 1745-LP151 or 1745-LP152 processor unit as a companion replacement when the CPU itself has failed or is no longer programmable. Where the original installation used a 1745-PT1 programming terminal or a dedicated serial programming cable, engineers transitioning to modern toolsets will need a compatible RS-232 to DH-485 adapter or a 1747-PIC interface converter to re-establish communication with the legacy program for backup and documentation purposes.

In panel environments where the SLC 150 coexists with other Rockwell platforms, it is common to find a 1747-SN Remote I/O Scanner or a 1747-ASB Adapter module managing distributed I/O across the same control cabinet. These components may also require sourcing as part of a phased upgrade. Power supply integrity is equally critical: the 1745-E102 draws power from the SLC 150 backplane, which is fed by the system power supply — often a 1745-P1 or equivalent 24 VDC regulated supply. Verifying power supply capacity before adding expansion I/O is a standard commissioning step that prevents nuisance faults during startup.

For facilities planning a full migration away from the SLC 150 to a currently supported platform, the MicroLogix 1100 (1763-L16BWA) or MicroLogix 1400 (1766-L32BWA) series represent the most common upgrade paths, offering modern Ethernet/IP connectivity, expanded I/O capacity, and continued software support under Studio 5000 Logix Designer or RSLogix 500. Signal conditioning components such as the 1492-IFM series interface modules or Phoenix Contact signal isolators are frequently added during rewiring to protect new I/O modules from legacy field device noise. HMI replacement is also a common parallel workstream, with the PanelView 800 (2711R series) serving as a compact, cost-effective replacement for older PanelView 300 or 550 operator terminals that were originally paired with SLC 150 systems.

Retrofit Guidance FAQ

Q: Can I replace the 1745-E102 without modifying field wiring?
A: Yes. The replacement unit maintains the same terminal block layout and pinout as the original Allen-Bradley 1745-E102. Field wiring for 24 VDC inputs and relay outputs can be reconnected directly to the same terminal positions without any rewiring.

Q: Is the SLC 150 backplane communication protocol preserved?
A: The 1745-E102 communicates via the proprietary SLC 150 backplane bus. Our replacement units are fully compatible with this protocol and will be recognized by the 1745-LP151 and 1745-LP152 CPUs without any configuration changes.

Q: Do I need to modify my existing ladder logic program?
A: No program changes are required for a direct 1745-E102 replacement. The I/O addressing structure remains identical, so existing ladder logic referencing the expansion I/O addresses will continue to function without modification.

Q: Will the replacement unit fit in the existing control cabinet space?
A: Yes. The replacement 1745-E102 matches the original physical dimensions and DIN-rail mounting footprint, requiring no panel modifications or additional mounting hardware.

Q: What if I am migrating to a newer PLC platform entirely?
A: If you are transitioning to MicroLogix or CompactLogix, we recommend using the 1745-E102 as a short-term bridge to maintain production continuity while the new system is engineered and tested in parallel. We can also supply MicroLogix 1100 and MicroLogix 1400 units to support the full migration.

Q: How do I back up my existing SLC 150 program before replacement?
A: Use RSLogix 500 with a 1747-PIC or compatible DH-485 interface cable to upload the existing program from the 1745-LP151 or 1745-LP152 CPU before any hardware changes. This ensures a complete program backup is available for the new system or for documentation purposes.

Warranty Assurance

Every 1745-E102 unit supplied by TOPNLMS undergoes pre-shipment functional inspection, including I/O point verification, backplane connector integrity check, and visual inspection for component condition. Units are shipped in anti-static packaging with individual serial tracking to support warranty claims and traceability.

Our 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. In the event of a warranty claim, TOPNLMS provides replacement unit dispatch within 3 business days of confirmed fault diagnosis, minimizing production impact. Our technical support team is available to assist with installation verification, fault diagnosis, and compatibility confirmation prior to and after shipment.

For urgent replacement requirements, expedited shipping from our Xiamen warehouse is available to destinations across Asia, Europe, the Middle East, and the Americas. Standard lead time for in-stock units is 1–3 business days. Bulk procurement and long-term supply agreements are available for MRO and OEM customers requiring ongoing SLC 150 spare parts support.

Contact our team to confirm stock availability, request a datasheet, or discuss your specific retrofit requirements before placing an order.
