Allen-Bradley 1734-TOP Ruggedized Terminal Base Module

Product Overview

Allen-Bradley 1734-TOP Ruggedized Terminal Base Module for Harsh Environments

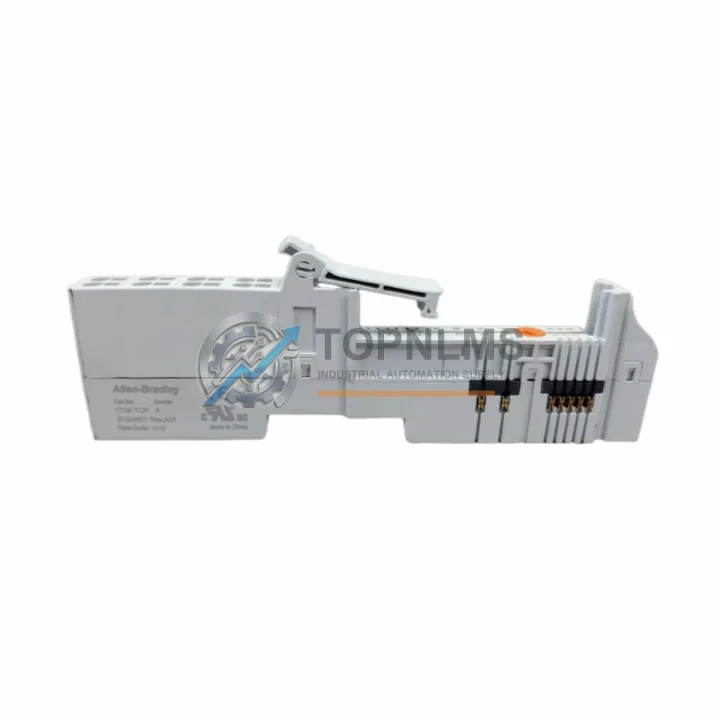

The Allen-Bradley 1734-TOP is a top-connect wiring terminal base unit engineered for the POINT I/O platform — one of Rockwell Automation’s most widely deployed modular I/O architectures in demanding industrial environments. Designed to deliver consistent, reliable signal termination under conditions of elevated temperature, mechanical vibration, airborne particulates, and electromagnetic interference, the 1734-TOP serves as the physical and electrical foundation upon which POINT I/O modules are mounted, wired, and secured within control cabinets across continuous production lines and heavy-industry installations worldwide.

In environments where uptime is non-negotiable — oil and gas processing skids, mineral processing plants, power generation facilities, water treatment infrastructure, and metallurgical operations — the integrity of every terminal connection directly determines system availability. The 1734-TOP provides a robust, tool-compatible wiring interface that supports rapid module replacement without disturbing field wiring, a critical advantage during unplanned shutdowns or scheduled preventive maintenance windows. Its top-connect wiring configuration allows technicians to access and replace I/O modules from the front of the control cabinet, minimizing exposure time and reducing the risk of wiring errors during high-pressure maintenance scenarios.

As part of the Allen-Bradley POINT I/O family, the 1734-TOP is fully compatible with the complete range of 1734-series I/O modules, including digital input modules such as the 1734-IB8 and 1734-IV8, digital output modules such as the 1734-OB8, analog input modules including the 1734-IE4C and 1734-IE8C, and analog output modules such as the 1734-OE4C. This broad compatibility ensures that a single terminal base design can support diverse signal types across the same control cabinet, simplifying spare parts inventory and reducing procurement complexity for maintenance teams managing large installed bases.

The 1734-TOP integrates seamlessly with POINT I/O adapter modules — including the 1734-AENT EtherNet/IP adapter and the 1734-ADNX DeviceNet adapter — enabling the full I/O node to communicate reliably with Allen-Bradley ControlLogix and CompactLogix controllers over standard industrial networks. In architectures where the 1734-AENT serves as the network interface, the terminal base units form the physical backbone of the I/O assembly, and their mechanical integrity directly affects network stability and data integrity across the entire node.

Rugged Specifications Table

Comprehensive Protection Solutions

Maintaining system integrity in harsh industrial environments requires more than a single reliable component — it demands a coordinated approach to protection across every layer of the control architecture. When inspecting or replacing a 1734-TOP terminal base, experienced maintenance engineers routinely evaluate the condition of adjacent components within the same I/O node and control cabinet.

The 1734-AENT EtherNet/IP adapter, which serves as the communication gateway for the entire POINT I/O node, should be inspected for firmware currency and connector integrity whenever terminal bases are serviced. Similarly, the 1734-EP24DC power distribution module, which supplies 24 VDC bus power to I/O modules across the node, is a high-priority spare item — a degraded power module can cause intermittent faults across multiple I/O channels simultaneously, making root-cause diagnosis unnecessarily complex.

Digital I/O modules such as the 1734-IB8 (8-channel 24 VDC digital input) and 1734-OB8 (8-channel digital output) are frequently replaced as part of planned maintenance cycles in environments with high switching frequency or inductive load exposure. Analog modules including the 1734-IE4C current input module and 1734-OE4C analog output module require periodic calibration verification, particularly in temperature-sensitive process control applications. Maintaining a small buffer stock of these modules alongside 1734-TOP terminal bases ensures that any single-point failure can be resolved within a single maintenance shift.

Beyond the I/O node itself, the broader control cabinet environment should be assessed. Allen-Bradley 1492-series terminal blocks and 1492-CABLE wiring accessories are commonly used alongside POINT I/O installations to organize field wiring and reduce termination errors. In cabinets where safety functions are integrated, 1734-IB8S safety input modules and compatible safety relay modules may share the same DIN rail assembly, and their terminal bases should be inspected for mechanical wear and secure seating. For installations in high-vibration environments such as mining conveyors or offshore platforms, periodic re-torquing of terminal screws and inspection of DIN rail locking clips is recommended as part of a structured preventive maintenance schedule.

Application in Critical Infrastructure

The Allen-Bradley 1734-TOP terminal base unit is deployed across a broad spectrum of critical infrastructure sectors where control system reliability directly affects operational safety and production continuity.

In oil and gas upstream and midstream facilities, POINT I/O assemblies built on 1734-TOP bases are used in wellhead control panels, pipeline SCADA remote terminal units, and compressor station automation systems. The ability to replace individual I/O modules without disturbing field wiring is particularly valuable in hazardous-area installations where work permit procedures limit the duration of maintenance interventions.

In power generation and transmission facilities, including thermal, hydroelectric, and renewable energy plants, 1734-series I/O nodes provide distributed monitoring of protection relay status, breaker position feedback, and auxiliary equipment control. The 1734-TOP’s mechanical robustness ensures reliable contact integrity even in environments subject to transformer-induced vibration and high ambient electromagnetic field levels.

In water and wastewater treatment plants, where continuous 24/7 operation is mandated by regulatory requirements, POINT I/O systems monitor pump status, valve position, flow rates, and chemical dosing equipment. The modular architecture enabled by the 1734-TOP allows maintenance teams to replace faulty I/O modules during brief planned outages without requiring full panel rewiring.

In metallurgical and heavy manufacturing environments — including steel mills, aluminum smelters, and cement plants — control cabinets are exposed to elevated ambient temperatures, conductive dust, and mechanical shock from heavy machinery. The 1734-TOP’s compliance with IEC vibration and shock standards makes it a dependable choice for these demanding conditions, and its availability as an original spare part ensures that aging POINT I/O installations can be maintained without system-level upgrades.
