Allen-Bradley 1734-OW4 Ruggedized Relay Output Module

Product Overview

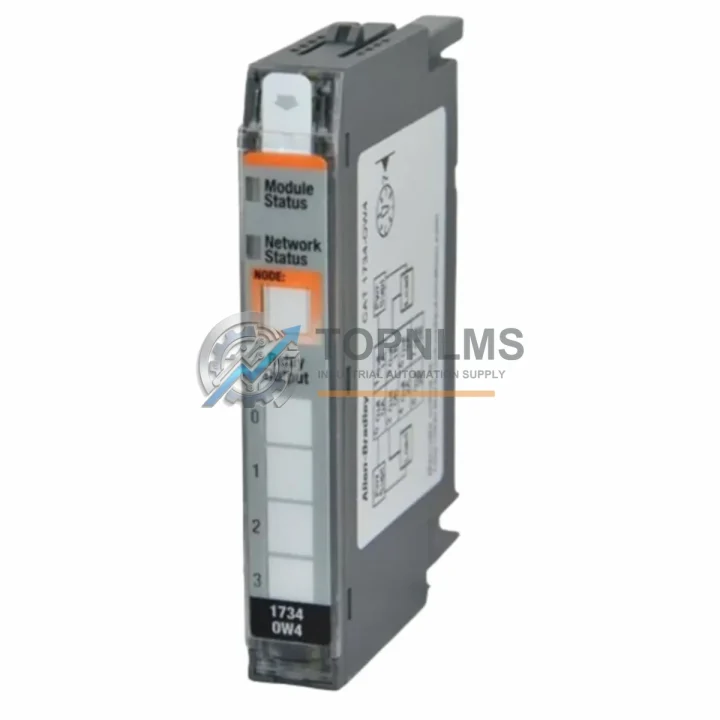

Allen-Bradley 1734-OW4 Ruggedized Relay Output Module for Harsh Industrial Environments

The Allen-Bradley 1734-OW4 is a 4-point relay output module engineered for the Rockwell Automation POINT I/O platform — one of the most widely deployed distributed I/O architectures in global industrial automation. Designed to operate reliably in demanding field conditions, the 1734-OW4 delivers isolated relay switching capability that is essential for controlling high-voltage loads, motor starters, solenoid valves, and alarm circuits in environments where signal integrity and mechanical durability are non-negotiable.

In continuous production lines, offshore platforms, and heavy industrial facilities, relay output modules are subjected to relentless thermal cycling, vibration, airborne particulates, and electromagnetic interference. The 1734-OW4 addresses these challenges through its compact DIN-rail-mounted form factor, robust relay contact isolation, and full compatibility with the POINT I/O backplane architecture — enabling seamless integration into existing Allen-Bradley control cabinets without rewiring or reconfiguration.

Whether you are maintaining a legacy system or building a new distributed control node, the 1734-OW4 provides the switching reliability and system compatibility that industrial engineers depend on for 24/7 uptime in critical infrastructure. Available from TOPNLMS with pre-shipment functional testing, standing inventory, and a 12-month quality warranty, this module is a trusted choice for MRO procurement teams and system integrators worldwide.

Rugged Specifications Table

Comprehensive Protection Solutions

The 1734-OW4 is rarely deployed in isolation. In a typical POINT I/O control node, it operates alongside the 1734-IB8 8-point 24 V DC input module and the 1734-OB8 8-point transistor output module, forming a complete mixed I/O cluster capable of handling both digital sensing and load switching within a single compact rail segment. The POINT I/O adapter — such as the 1734-AENT EtherNet/IP adapter — provides the communication backbone that connects the entire I/O cluster to the ControlLogix or CompactLogix PLC processor over a standard Ethernet network, enabling real-time diagnostics and remote I/O health monitoring.

For applications requiring functional safety, the 1734-OW4 is commonly paired with the 1734-IE4S safety analog input module or the 1734-OBV2S safety output module within a GuardLogix safety architecture. In high-voltage switching panels, it works in conjunction with Allen-Bradley 700-HLT ice cube relays and 1492-J series terminal blocks to provide a fully coordinated output circuit with proper fusing and isolation. The 1734-EP24DC expansion power supply ensures that extended I/O banks maintain stable 24 V DC bus voltage even under heavy relay switching loads — a critical consideration in environments with frequent inductive load switching that can generate destructive voltage spikes on the power rail.

In distributed control cabinets where space is at a premium, the 1734-OW4 integrates cleanly with 1734-TOP3 wiring bases and 1734-RTB removable terminal blocks, allowing field wiring to remain intact during module replacement — a significant advantage for maintenance teams operating under tight production schedules. For communication-intensive architectures, the module is fully compatible with 1734-PDN DeviceNet adapters and 1734-ACNR ControlNet adapters, supporting multi-protocol plant networks without hardware changes. This broad compatibility across the POINT I/O ecosystem makes the 1734-OW4 a versatile and future-proof component for both greenfield installations and brownfield system upgrades.

Application in Critical Infrastructure

In oil and gas upstream and midstream facilities, the 1734-OW4 is deployed in wellhead control panels and pipeline SCADA nodes where Class I Division 2 hazardous location certification is mandatory. Its isolated relay contacts provide the galvanic separation required to switch solenoid-operated safety valves and emergency shutdown (ESD) actuators without introducing ground loops that could compromise safety instrumented system (SIS) integrity. The module’s wide operating temperature range accommodates the extreme ambient swings encountered in desert wellfields and arctic pipeline stations alike.

In power generation and substation automation, the module handles breaker control, transformer tap-changer signaling, and alarm annunciator outputs in environments with extreme electromagnetic interference from high-voltage bus bars and switching transients. Its compliance with IEC 61000 EMC standards ensures that relay coil switching does not corrupt adjacent analog or communication signals on the same backplane — a critical requirement when the 1734-OW4 shares a rail with analog input modules monitoring current transformers or RTD temperature sensors.

In mining and mineral processing operations, the 1734-OW4 controls conveyor belt starters, crusher motor contactors, and dust suppression solenoids in environments with continuous vibration, coal dust, and wide ambient temperature swings. The module’s snap-on base design allows rapid replacement during scheduled maintenance windows without disturbing field wiring — reducing mean time to repair (MTTR) and minimizing production downtime in operations where every hour of unplanned stoppage carries significant financial impact.

In water and wastewater treatment plants, the module drives pump motor starters, valve actuators, and chemical dosing systems in high-humidity environments where condensation and corrosive atmospheres are constant concerns. Installed within IP54 or IP65 rated control enclosures, the 1734-OW4 delivers consistent switching performance across seasonal temperature extremes and continuous duty cycles typical of 24/7 municipal infrastructure operations.

In metallurgical and steel production facilities, the module operates in close proximity to induction furnaces and arc welding equipment — environments with some of the highest electromagnetic interference levels found in any industrial setting. Its robust relay contact design and backplane isolation architecture maintain output signal fidelity even under these extreme EMI conditions, supporting reliable control of cooling water valves, furnace door actuators, and casting line interlocks where a missed output signal can result in equipment damage or personnel injury.

Security & Quality FAQ

Q1: Does the 1734-OW4 come with a warranty, and what does it cover?
Yes. Every 1734-OW4 unit shipped by TOPNLMS carries a 12-month quality warranty covering manufacturing defects and functional failures under normal operating conditions. If a module fails within the warranty period, we provide a replacement or full refund after technical verification. Our warranty applies to both new and tested-functional surplus units, and all warranty claims are processed directly through our technical support team at [email protected].

Q2: How is each unit tested before shipment?
All 1734-OW4 modules undergo a pre-shipment functional inspection that includes visual examination for physical damage, contact resistance measurement on all four relay output points, backplane connector integrity check, and power-on verification where test equipment is available. Units sourced from certified distribution channels are shipped in original or equivalent protective packaging with lot traceability documentation available upon request.

Q3: Is the 1734-OW4 compatible with my existing POINT I/O system and ControlLogix / CompactLogix PLC?
Yes. The 1734-OW4 is fully compatible with all POINT I/O 1734-series base units and adapters, and it is supported by RSLogix 5000 / Studio 5000 Logix Designer software across all current firmware revisions. It integrates with ControlLogix (1756 series), CompactLogix (1769 series), and MicroLogix platforms via the appropriate POINT I/O adapter. No firmware upgrade or special configuration is required for standard relay output operation.

Q4: Can TOPNLMS support long-term supply and emergency replacement needs?
Absolutely. TOPNLMS maintains standing inventory of high-demand Allen-Bradley POINT I/O modules including the 1734-OW4, with the capability to fulfill both single-unit emergency replacement orders and bulk procurement contracts. We support expedited shipping for critical plant maintenance scenarios and can provide advance replacement units under pre-arranged service agreements. For long-term MRO supply planning, contact our team to discuss consignment stock or scheduled delivery programs tailored to your facility’s maintenance cycle.
