Allen-Bradley 1734-OB4 Replacement for POINT I/O Series: Smooth Transition & Legacy System Compatibility

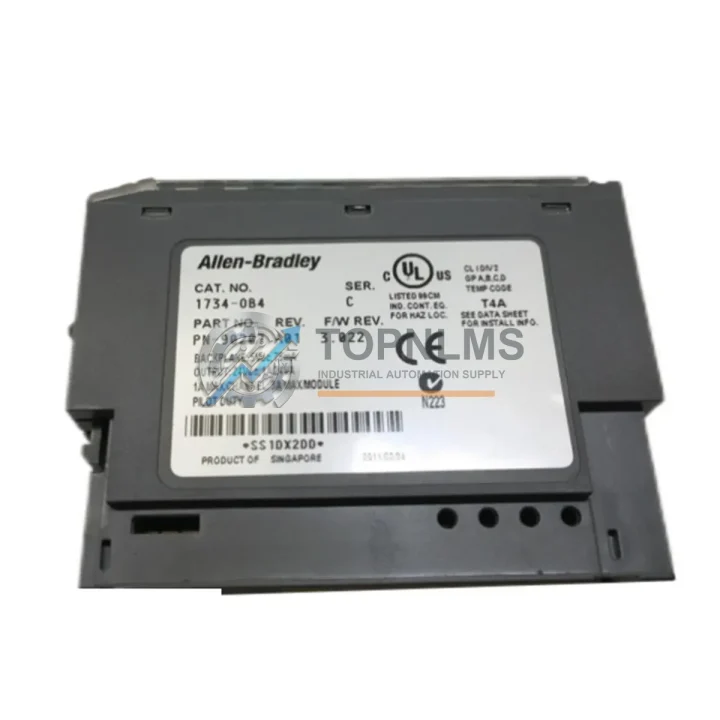

The Allen-Bradley 1734-OB4 is a 4-channel sourcing digital output module within the Rockwell Automation POINT I/O 1734 Series platform. As industrial facilities phase out aging distributed I/O architectures or address end-of-life procurement challenges, the 1734-OB4 serves as a direct drop-in replacement or upgrade path for legacy output modules deployed in CompactLogix, MicroLogix, and ControlLogix-based control systems. TOPNLMS maintains verified stock of the 1734-OB4 to support urgent field replacements, planned shutdowns, and long-term spare parts strategies — minimizing unplanned downtime across process, discrete, and hybrid manufacturing environments.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful 1734-OB4 field replacement or system migration typically involves coordinating several interdependent components within the POINT I/O ecosystem. When replacing a failed or end-of-life output module, engineers commonly retain the existing 1734-RTB removable terminal block, which allows the field wiring to remain intact — eliminating the need to re-terminate individual conductors and dramatically reducing commissioning time during a planned or emergency shutdown.

For facilities migrating from DeviceNet-based POINT I/O nodes to EtherNet/IP, the 1734-AENT or 1734-AENTR EtherNet/IP adapter is the critical gateway component. This adapter governs how the 1734-OB4 and co-located input modules — such as the 1734-IB8 8-channel DC input module or the 1734-IA4 4-channel AC input module — communicate upstream to the controller. Replacing the adapter while retaining the existing I/O modules is a common partial migration strategy that preserves capital investment in field wiring and I/O hardware.

In mixed-signal environments where analog feedback is required alongside discrete outputs, the 1734-OE2V 2-channel analog voltage output module and 1734-IE2V analog input module are frequently installed in the same 1734-series rail alongside the 1734-OB4. Ensuring the replacement module is sourced with matching firmware revision compatibility is essential when the POINT I/O node is managed by a CompactLogix L3x or L4x controller running Studio 5000 Logix Designer.

For control cabinet space planning, the 1734-OB4 occupies a single POINT I/O slot. In high-density retrofit projects where DIN rail space is constrained, engineers may evaluate consolidating I/O using the 1734-OB8 8-channel sourcing output module to halve the slot count, or alternatively use the 1734-OB8S safety-rated output module where SIL 2 compliance is required by the updated safety architecture. Power budget calculations should account for the 1734-EP24DC POINT I/O power supply expander when the total module count exceeds the base adapter’s current capacity.

For remote or distributed installations where the POINT I/O node is located in a field junction box rather than a centralized control room, the 1734-AENTR dual-port EtherNet/IP adapter with Device Level Ring (DLR) support provides network redundancy — a key consideration when upgrading legacy star-topology networks to ring architectures as part of a broader plant modernization initiative.

Retrofit Guidance FAQ

Q: Can I replace the 1734-OB4 without rewiring the field terminals?
A: Yes. The 1734-OB4 uses a removable terminal block (1734-RTB or 1734-RTBS). Disconnect the RTB from the failed module, slide in the replacement 1734-OB4, and reconnect the RTB. No individual wire termination is required, making hot-swap replacement feasible during a brief process pause.

Q: Will the replacement module require a firmware update or re-download?
A: In most cases, no. The 1734-OB4 is a non-intelligent output module — it carries no user-configurable firmware. The controller’s I/O configuration in Studio 5000 / RSLogix 5000 will automatically recognize the module upon power-up, provided the slot address and module catalog number match the existing project configuration.

Q: Is the 1734-OB4 compatible with both CompactLogix and ControlLogix controllers?
A: Yes, via the appropriate 1734-series adapter. The 1734-AENT connects the POINT I/O node to any EtherNet/IP-capable controller, including CompactLogix L1x–L4x and ControlLogix L6x–L8x families. The adapter handles all protocol translation; the 1734-OB4 itself is controller-agnostic.

Q: What if my existing system uses DeviceNet (1734-ADN adapter) instead of EtherNet/IP?
A: The 1734-OB4 module is backplane-compatible with both 1734-ADN (DeviceNet) and 1734-AENT (EtherNet/IP) adapters. No module-level change is required if you are only replacing the output module. If you are simultaneously migrating the communication protocol, replace the adapter and update the controller’s I/O tree accordingly.

Q: How much DIN rail space does the 1734-OB4 require?
A: The 1734-OB4 occupies one POINT I/O module slot (approximately 12 mm width). It mounts directly to the 1734-series rail segment adjacent to the adapter or other I/O modules. No additional mounting hardware is required beyond the standard POINT I/O rail.

Q: Can the 1734-OB4 be used in a safety-rated application?
A: No. The standard 1734-OB4 is not safety-rated. For SIL 2 or PLd applications, the 1734-OB8S safety output module should be specified instead. Consult the system safety architecture documentation before substituting modules in safety-instrumented systems.

Warranty Assurance

Every 1734-OB4 unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to dispatch, each module undergoes a pre-shipment functional verification process to confirm output channel integrity, backplane connector condition, and label/catalog number accuracy. Units are packaged in anti-static protective packaging with foam cushioning to prevent transit damage.

In the event of a confirmed defect within the warranty period, TOPNLMS provides a direct replacement unit at no additional cost. Our technical support team is available to assist with installation verification, compatibility confirmation, and fault diagnosis via email at [email protected] or by phone at +86 18359293191. Replacement units are typically dispatched within 1–3 business days of defect confirmation.

For procurement teams managing critical spare parts inventories, TOPNLMS offers multi-unit stocking orders with consolidated shipping from our Xiamen warehouse. Lead times, quantity pricing, and export documentation (including commercial invoice, packing list, and certificate of origin) are available upon request.

We understand that unplanned downtime in industrial environments carries significant operational and financial consequences. Our procurement assurance model is designed to provide verified stock availability, rapid dispatch, and post-sale technical support — giving maintenance engineers and procurement managers confidence at every stage of the replacement process.
