Allen-Bradley 1734-IB4 Original Industrial Spare POINT I/O: System Stability & Maintenance Value

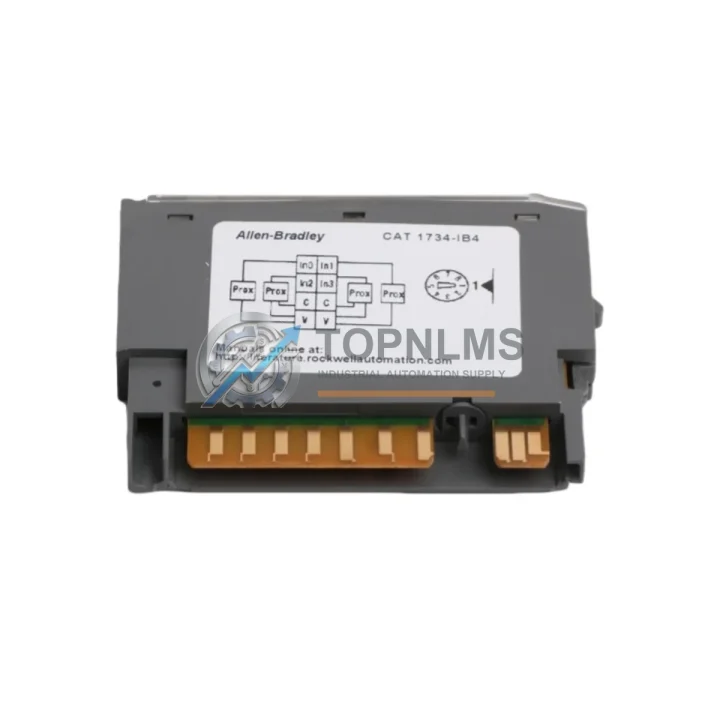

The Allen-Bradley 1734-IB4 is a 4-channel, 24VDC DC sink digital input module from Rockwell Automation’s POINT I/O platform — one of the most widely deployed modular I/O architectures in discrete manufacturing, process control, and machine automation environments worldwide. For maintenance engineers and procurement teams managing aging or active AB control systems, securing a verified original 1734-IB4 spare is a direct investment in system uptime, fault recovery speed, and long-term operational continuity.

Whether your facility runs a CompactLogix, ControlLogix, or MicroLogix-based control architecture, the POINT I/O platform’s modular design means that a single failed input module can halt an entire production line. Stocking the 1734-IB4 as a ready-to-deploy spare eliminates the lead-time risk that comes with reactive procurement — a critical advantage in industries where unplanned downtime costs far exceed the cost of a spare module.

Critical Technical Specs

Preventive Maintenance Strategy

A structured preventive maintenance program for POINT I/O-based control panels should treat the 1734-IB4 as part of a broader inspection and replacement cycle — not an isolated component. During scheduled shutdowns or annual control cabinet audits, maintenance teams should simultaneously inspect the 1734-AENT EtherNet/IP adapter that hosts the I/O node, as adapter firmware degradation or connector wear can cause intermittent input faults that are often misdiagnosed as module failures.

The 1734-TB or 1734-TBS terminal base beneath the 1734-IB4 is a frequently overlooked wear item. Terminal bases accumulate oxidation and mechanical stress from repeated module swaps; replacing the terminal base alongside the input module during a planned outage prevents latent connection faults from surfacing post-maintenance. Similarly, the 1734-OB4E 4-channel digital output module — often installed in the same I/O bank as the 1734-IB4 — should be inspected for output transistor degradation, particularly in high-cycle applications such as conveyor control or packaging lines.

For facilities running mixed discrete and analog I/O, the 1734-IE2C 2-channel current input analog module and 1734-OE2C analog output module in adjacent slots warrant inspection during the same maintenance window. Analog modules in industrial environments are susceptible to drift caused by temperature cycling and vibration — conditions that also stress digital input modules like the 1734-IB4.

Power integrity is foundational to POINT I/O reliability. The 1734-EP24DC POINT I/O power supply should be load-tested during preventive maintenance intervals, as undervoltage conditions are a leading cause of spurious input state changes and false fault diagnostics. Pair this with an inspection of the 24VDC field power wiring and any Phoenix Contact or Weidmüller terminal blocks in the same circuit — loose terminations at field wiring points are a common root cause of intermittent digital input failures.

For facilities with legacy POINT I/O nodes communicating over DeviceNet, the 1734-ADN DeviceNet adapter should be included in the spare parts inventory alongside the 1734-IB4. DeviceNet infrastructure is increasingly difficult to source, and a failed adapter renders an entire I/O node inoperable regardless of module condition. Proactive stocking of both the adapter and input modules is the most cost-effective risk mitigation strategy for aging DeviceNet architectures.

Finally, where the 1734-IB4 is used in safety-adjacent applications — monitoring door interlocks, E-stop circuits, or guard position sensors — maintenance teams should cross-reference the input module’s diagnostic data with the 1734-IB8S safety input module or GuardLogix safety controller logs to ensure functional safety integrity is maintained across the replacement cycle.

Strategic Replacement Solutions

The 1734-IB4 has been in active production for over two decades, and many facilities are now managing control systems where the original module population is approaching or has exceeded its rated service life. The modular architecture of the POINT I/O platform means that the 1734-IB4 can be replaced without modifying the control program, the adapter configuration, or the field wiring — provided the replacement module is a genuine original unit with the correct catalog number and firmware baseline.

For facilities transitioning from older 1734-series configurations, the 1734-IB4 is directly compatible with all current POINT I/O adapter generations, including EtherNet/IP (1734-AENT, 1734-AENTR), ControlNet (1734-ACNR), and DeviceNet (1734-ADN). This backward compatibility eliminates the need for system-wide upgrades when replacing individual modules, preserving the capital investment in existing control infrastructure while restoring full diagnostic and I/O performance.

In applications where channel density requirements have grown, the 1734-IB8 8-channel digital input module offers a direct upgrade path within the same terminal base footprint — reducing the number of modules required per I/O node and simplifying cabinet layout. However, for like-for-like replacement in validated or certified production environments, the 1734-IB4 remains the correct and recommended spare to maintain system documentation accuracy and regulatory compliance.

TOPNLMS supplies the 1734-IB4 as a tested, original Allen-Bradley unit. Each module undergoes pre-shipment functional verification, is shipped in anti-static protective packaging, and is covered by a 12-month warranty from the date of delivery. Typical lead time is 3–7 business days for in-stock units, with expedited options available for critical downtime situations.

Support FAQ

Q1: Is the 1734-IB4 supplied by TOPNLMS a genuine original Allen-Bradley module?
Yes. All 1734-IB4 units are sourced as original Allen-Bradley (Rockwell Automation) components. Each unit is inspected and functionally tested prior to shipment. We do not supply counterfeit, refurbished-as-new, or third-party compatible substitutes.

Q2: What warranty coverage applies to this module?
TOPNLMS provides a 12-month warranty from the date of delivery. If the module exhibits a functional defect within the warranty period under normal operating conditions, we will arrange replacement or refund. Warranty claims require the original order reference and a brief fault description.

Q3: Can I install the 1734-IB4 without modifying my existing control program?
Yes, provided you are replacing a like-for-like 1734-IB4 in the same terminal base slot. The POINT I/O platform supports hot-swap replacement in most adapter configurations. No program changes, I/O mapping updates, or adapter reconfiguration are required for a direct module swap.

Q4: How should I verify compatibility before ordering?
Confirm your existing POINT I/O adapter catalog number (e.g., 1734-AENT, 1734-ADN, 1734-ACNR) and the terminal base type (1734-TB or 1734-TBS) currently installed. The 1734-IB4 is compatible with all standard POINT I/O adapter and terminal base combinations. If you are unsure, contact us with your existing system configuration and we will confirm compatibility before shipment.
