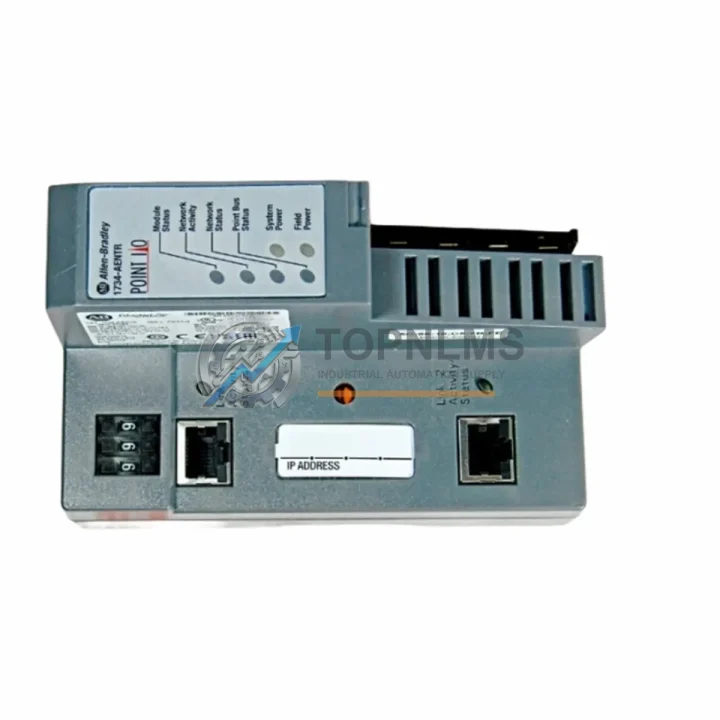

Allen-Bradley 1734-AENTR Ruggedized EtherNet/IP Adapter Module

Product Overview

Allen-Bradley 1734-AENTR Ruggedized EtherNet/IP Adapter Module: Industrial Resilience for Harsh Environments

The Allen-Bradley 1734-AENTR is a dual-port EtherNet/IP adapter module engineered for the POINT I/O 1734 Series platform — one of Rockwell Automation’s most widely deployed distributed I/O architectures in mission-critical industrial environments. Designed to operate reliably under extreme thermal stress, high-humidity conditions, persistent mechanical vibration, airborne particulate contamination, and intense electromagnetic interference, the 1734-AENTR delivers the communication backbone that modern industrial control systems demand without compromise.

In continuous production environments — from petrochemical processing lines and offshore drilling platforms to underground mining operations and high-voltage power distribution substations — communication integrity between the PLC controller and field-level I/O is non-negotiable. The 1734-AENTR’s dual-port topology enables Device Level Ring (DLR) network redundancy, ensuring that a single cable fault does not interrupt the real-time data exchange between the Logix 5000 controller and the distributed POINT I/O nodes. This architecture is particularly critical in applications where unplanned downtime carries six-figure hourly costs.

Rugged Specifications Table

Comprehensive Protection Solutions

The 1734-AENTR does not operate in isolation — it is the communication hub that binds an entire distributed control node together. In a typical control cabinet deployed in a steel mill or water treatment facility, the adapter interfaces directly with a range of POINT I/O 1734 series modules: digital input modules such as the 1734-IB8 and 1734-IV8, digital output modules including the 1734-OB8E with electronic fuse protection, and analog I/O modules like the 1734-IE4C for 4–20 mA current loop signals from field transmitters.

Beyond the I/O layer, the 1734-AENTR operates within a broader Rockwell Automation ecosystem. The upstream ControlLogix 1756 or CompactLogix 5380 controller communicates with the adapter over a managed industrial Ethernet switch — typically a Stratix 5700 or Stratix 2000 — which provides VLAN segmentation and port-level storm control to protect the network from broadcast flooding in noisy plant environments. The 1734-AENTR’s DLR capability means that even if a cable between two ring nodes is severed by mechanical damage or rodent intrusion, the ring self-heals within milliseconds, maintaining uninterrupted I/O scanning.

In safety-rated installations, the 1734-AENTR node is frequently paired with GuardLogix safety controllers and 1734-IB8S safety input modules or 1734-OB8S safety output modules, enabling a single EtherNet/IP segment to carry both standard and safety I/O traffic under CIP Safety protocol. This integration eliminates the need for a separate hardwired safety bus, reducing cabinet wiring complexity and simplifying IEC 61508 / IEC 62061 functional safety documentation.

Power integrity at the node level is maintained by the 1734-EP24DC POINT I/O power supply module, which provides isolated 24V DC to the I/O backplane and protects downstream modules from voltage transients common in variable-frequency drive (VFD) environments. For installations near high-power drives such as the PowerFlex 755 or PowerFlex 525, proper grounding of the DIN rail and use of ferrite cores on Ethernet cables are standard practice to suppress common-mode noise that could otherwise cause spurious communication faults on the 1734-AENTR.

Application in Critical Infrastructure

In upstream oil and gas operations, the 1734-AENTR is deployed in wellhead control panels and pipeline SCADA remote terminal units where ambient temperatures can swing from sub-zero winter conditions to +50 °C summer heat inside uninsulated enclosures. Its wide thermal operating range and conformal coating options on associated I/O modules make it a preferred choice for engineers specifying equipment to API RP 505 and IEC 60079 hazardous area guidelines — typically installed in purged and pressurized Ex p enclosures or safe-area marshalling cabinets connected to Ex d field junction boxes.

In underground coal and hard-rock mining, the adapter supports distributed monitoring of conveyor belt drives, ventilation fan starters, and dewatering pump stations. The DLR ring topology is especially valued in long tunnel installations where a single Ethernet trunk cable runs hundreds of meters and is vulnerable to mechanical damage from mining equipment. A ring break at any point does not interrupt the control system, allowing maintenance personnel to repair the cable without halting production.

Municipal water treatment and wastewater facilities rely on the 1734-AENTR to interface with chlorination dosing pumps, UV disinfection systems, and effluent flow meters. In these environments, the adapter must tolerate high ambient humidity and occasional chemical vapor exposure. Proper cabinet sealing to IP54 or IP65 with internal climate control — using enclosure heaters and thermostats — protects the 1734-AENTR and its associated POINT I/O modules from condensation-induced corrosion.

In electric power generation and grid substation automation, the 1734-AENTR supports integration with protection relay panels, transformer monitoring systems, and switchgear control circuits. Its compliance with IEC 61000-4-5 surge immunity and IEC 61000-4-4 electrical fast transient (EFT) immunity standards ensures stable operation in environments where switching transients from high-voltage circuit breakers can induce significant conducted and radiated interference on control wiring.
