Allen-Bradley 1715-TASIB16D Replacement for 1715 Redundant I/O: Smooth Migration & Seamless Compatibility

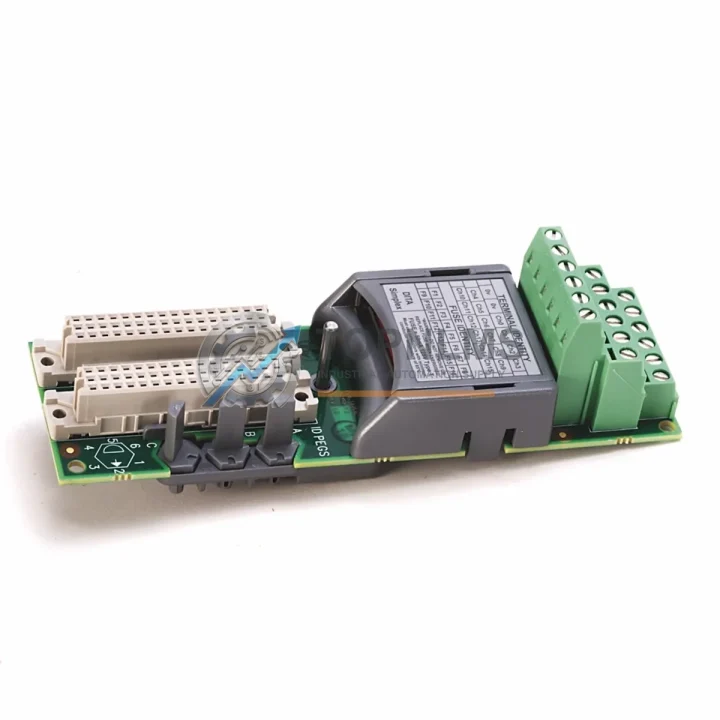

The Allen-Bradley 1715-TASIB16D is a 16-channel digital input termination assembly designed for the 1715 Redundant I/O System — Rockwell Automation’s high-availability I/O platform for safety-critical and process-critical applications. As legacy 1715 series components approach end-of-life or become increasingly difficult to source, many facilities are facing urgent decisions: replace like-for-like, migrate to a newer architecture, or retrofit the existing control cabinet with compatible alternatives.

At TOPNLMS, we stock the 1715-TASIB16D as a direct replacement and upgrade solution for plants running aging 1715 Redundant I/O configurations. Whether your existing termination assembly has failed, your OEM support contract has lapsed, or you are proactively building a spare-parts inventory to reduce unplanned downtime, this module ships ready for installation with full documentation support.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful 1715 Redundant I/O migration rarely involves a single module. In practice, field engineers replacing a 1715-TASIB16D termination assembly will also need to verify or simultaneously upgrade several adjacent components within the same control cabinet or rack architecture.

The 1715-AENTR EtherNet/IP Dual-Port Adapter is the communication backbone of the 1715 system. If your adapter firmware is outdated or the adapter itself is showing intermittent faults, replacing it alongside the termination assembly eliminates the risk of communication dropouts after the new module is installed. Similarly, the 1715-IB16D 16-Channel Digital Input Module pairs directly with the 1715-TASIB16D termination assembly — both must be revision-compatible to ensure correct channel mapping and diagnostic reporting.

For plants running mixed analog and digital I/O in the same 1715 rack, the 1715-OB8DE 8-Channel Digital Output Module and its corresponding termination assembly are frequently replaced in the same maintenance window to minimize future downtime events. If your process includes analog signal loops — pressure transmitters, flow meters, or temperature sensors — the 1715-IF16 16-Channel Analog Input Module and its termination assembly should be inspected and potentially replaced as part of the same upgrade cycle.

Communication integrity across the entire 1715 system depends on the 1715 Redundant I/O Adapter Rack itself being in good mechanical condition. Rack backplane damage is a common root cause of intermittent I/O faults that are misdiagnosed as module failures. If your facility is also running a 1756 ControlLogix chassis as the primary controller, verifying the firmware version of the 1756-EN2TR EtherNet/IP Communication Module is a recommended pre-migration step to ensure seamless tag mapping after the 1715 I/O replacement.

For facilities transitioning from older 1771 PLC-5 or 1746 SLC 500 architectures to the 1715 Redundant I/O platform, the migration scope expands significantly. In these projects, 1492 terminal block wiring systems and 1492-CABLE pre-wired interface cables are commonly used to bridge legacy field wiring to the new 1715 termination assemblies without rewiring individual field devices — a major time and cost saving on brownfield retrofit projects.

Retrofit Guidance FAQ

Q: Can I replace the 1715-TASIB16D without modifying my Logix program?
A: In most cases, yes. The 1715-TASIB16D is a field-side termination assembly. It does not contain programmable logic. As long as the replacement module is the same catalog number and revision, no changes to the Studio 5000 Logix Designer project are required. Channel addressing and tag mapping remain unchanged.

Q: Is the field wiring compatible with the replacement unit?
A: Yes. The 1715-TASIB16D uses standard screw-terminal connections. Field wiring from the original installation can be reconnected to the replacement assembly without modification, provided wire gauges and terminal torque specifications are observed per the Rockwell Automation installation manual.

Q: What communication protocol does the 1715 system use?
A: The 1715 Redundant I/O system communicates via EtherNet/IP using the 1715-AENTR dual-port adapter. The termination assembly itself is passive on the communication side — it connects field devices to the I/O module, which in turn communicates through the adapter. No protocol configuration is required on the termination assembly.

Q: Will the replacement module fit in the existing cabinet space?
A: Yes. The 1715-TASIB16D has the same physical footprint as the original. It mounts to the same 1715 adapter rack without requiring additional DIN rail space or cabinet modifications.

Q: How do I verify the replacement is functioning correctly after installation?
A: After installation, use Studio 5000 Logix Designer or RSLogix 5000 to go online with the controller and verify that all 16 digital input channels are reporting correctly. The 1715 system provides per-channel diagnostics including open-wire detection, which can be used to confirm field wiring integrity before returning the system to production.

Warranty Assurance

Every 1715-TASIB16D unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to shipment, each unit undergoes a functional inspection to verify physical integrity, terminal condition, and module identification. Units that do not pass inspection are not shipped.

If a unit develops a fault within the warranty period under normal operating conditions, TOPNLMS will provide a replacement unit or issue a refund — subject to inspection of the returned module. Our after-sales response target is within 24 business hours for warranty claims. We support customers through the replacement process including documentation, shipping coordination, and technical guidance where required.

For procurement teams, we can provide a proforma invoice, packing list, and certificate of conformance upon request. Bulk orders for spare-parts inventory programs are welcome, and lead times can be confirmed at the time of inquiry.

Stock availability is updated regularly. Contact us to confirm current inventory before placing a time-sensitive order.
