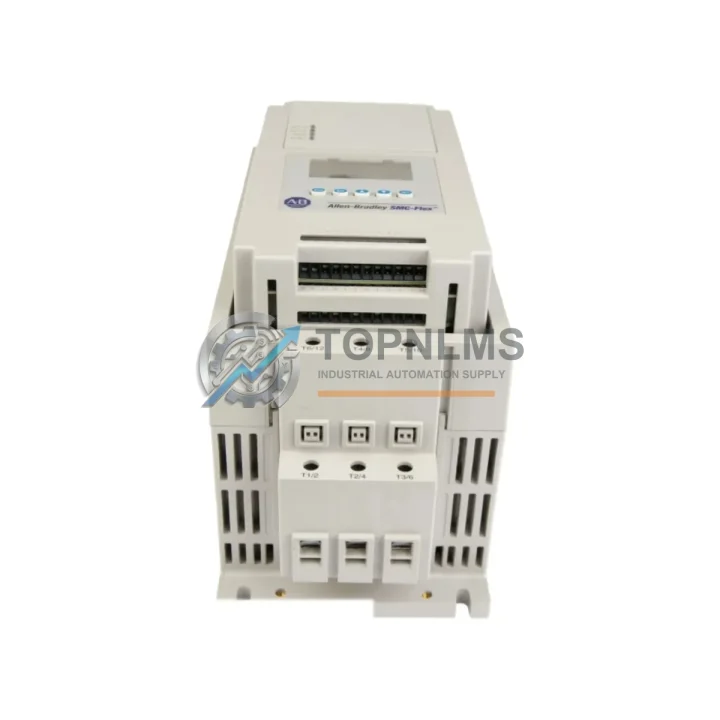

Allen-Bradley 150-F43NBD SMC Flex Replacement Solution

Product Overview

Allen-Bradley 150-F43NBD SMC Flex Replacement Solution: Seamless Transition from Legacy Motor Control Systems

When your existing Allen-Bradley SMC Flex soft starter reaches end-of-life or becomes unavailable through standard distribution channels, production continuity depends on sourcing a verified, compatible replacement without delay. The 150-F43NBD is a 43A, 480V AC three-phase soft starter from Rockwell Automation’s SMC Flex family, featuring integrated DeviceNet communication, bypass contactor support, and a full suite of motor protection functions including overload, phase loss, and jam detection. This replacement solution is engineered to restore your motor control system to full operational status with minimal engineering rework, reduced downtime, and no compromise on performance or safety compliance.

Many facilities running legacy Allen-Bradley MCC (Motor Control Center) lineups, PowerFlex drive panels, or older SLC 500 and MicroLogix-based control architectures rely on the SMC Flex series as the primary soft-start interface between the PLC output and the motor load. When the 150-F43NBD fails or is discontinued, the replacement must match the original unit’s DeviceNet node addressing, parameter configuration, and physical footprint within the control cabinet. Our replacement units are pre-tested against the original Rockwell Automation factory specifications, ensuring that your DeviceNet scanner — typically a 1756-DNB or 1747-SDN module — can re-establish communication with the soft starter without requiring changes to the RSLogix 5000 or RSLogix 500 program’s I/O configuration.

The 150-F43NBD occupies a standard 3-wire control wiring scheme compatible with the SMC Flex family’s terminal layout. During a retrofit, engineers typically verify the control wiring at terminals 01–03 (three-phase line input), 04–06 (motor output), and the auxiliary control terminals for start/stop logic. Because the replacement unit maintains the same terminal designations and DIN rail or panel-mount footprint as the original, field rewiring is limited to a direct swap. No additional terminal adapters or wiring harness modifications are required in most standard MCC bucket installations.

For facilities migrating from older SMC Dialog Plus or SMC-2 soft starters to the SMC Flex platform, the 150-F43NBD serves as a forward-compatible upgrade path. The DeviceNet interface replaces the older hardwired or Remote I/O (RIO) communication methods, enabling real-time motor diagnostics, parameter monitoring, and fault logging through the ControlLogix or CompactLogix backplane. Integration with a 1756-L7x or 1769-L3x controller via the DeviceNet scanner allows operators to monitor motor current, thermal capacity, and fault history directly from the HMI — typically a PanelView Plus 7 or FactoryTalk View SE station — without additional instrumentation.

Compatibility Comparison Table

Seamless Upgrade Solutions

A complete SMC Flex retrofit rarely involves only the soft starter itself. During commissioning, engineers frequently address the surrounding system components to ensure full compatibility and long-term reliability. The 1756-DNB DeviceNet Scanner module in the ControlLogix chassis must have the 150-F43NBD’s EDS file registered and the node address correctly assigned — typically via the rotary switches on the unit’s front face. If the existing DeviceNet trunk cable or drop cable connectors are aged or non-compliant, replacing them with standard Micro or Mini DeviceNet connectors ensures signal integrity across the network segment.

Power supply integrity is equally critical. The 150-F43NBD draws its control power from the 24VDC DeviceNet bus, supplied by a dedicated 1606-XLP DeviceNet power supply or equivalent. Verifying that the bus voltage remains within the 11–25VDC specification under full network load prevents intermittent communication faults during motor start sequences. In cabinets where multiple DeviceNet nodes share a single power supply, adding a 1485R-P2R5-B5 DeviceNet repeater can extend network reach and isolate fault domains.

For facilities that also operate PowerFlex 40 or PowerFlex 400 variable frequency drives on the same DeviceNet segment, the network topology must be reviewed to ensure proper termination resistors are installed at both ends of the trunk. The 150-F43NBD replacement integrates into this mixed-device network without requiring changes to the scanner’s scan list, provided the node address does not conflict with existing drive nodes.

Where the motor control system includes a 1492-AIFM analog interface module or 1734 POINT I/O modules for auxiliary feedback signals — such as motor run confirmation or fault relay outputs — the replacement 150-F43NBD’s auxiliary relay terminals (13/14 and 23/24) maintain the same normally-open and normally-closed contact configuration as the original, preserving the existing interlock logic without PLC program modification.

HMI integration via FactoryTalk View ME on a PanelView Plus terminal can continue to display motor status, current draw, and fault codes using the existing tag database, as the DeviceNet I/O map of the replacement unit mirrors the original 150-F43NBD’s data table structure. No display page redesign or tag remapping is required in standard replacement scenarios.

Retrofit Guidance FAQ

Q: Do I need to re-program my PLC after replacing the 150-F43NBD?
A: In most cases, no. If the replacement unit is configured with the same DeviceNet node address and the EDS file is already registered in RSNetWorx for DeviceNet, the ControlLogix or SLC 500 program will recognize the device without modification. Parameter settings should be restored using DriveExplorer or a saved parameter file from the original unit.

Q: Is the wiring terminal layout identical to the original?
A: Yes. The replacement 150-F43NBD uses the same three-phase line and load terminal designations and the same auxiliary control terminal block layout as the original SMC Flex unit. Direct rewiring from the original unit is supported without adapter plates.

Q: What communication protocol does this unit support?
A: The 150-F43NBD uses DeviceNet (CAN-based, IEC 62026-3). It is not compatible with EtherNet/IP or Profibus without an additional communication adapter. If your system has migrated to EtherNet/IP, a 150-SM3 communication module may be required.

Q: Will it fit in the existing MCC bucket or control cabinet space?
A: Yes. The physical dimensions and mounting hole pattern of the replacement unit match the original 150-F43NBD, allowing direct installation in the existing MCC bucket or panel cutout without mechanical modification.

Q: How do I restore the original parameter settings?
A: If a parameter backup was saved using DriveExplorer or RSNetWorx, it can be uploaded directly to the replacement unit. If no backup exists, parameters should be re-entered manually based on the motor nameplate data and the original commissioning documentation.

Warranty Assurance

Every 150-F43NBD replacement unit supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes functional verification including power-on self-test, DeviceNet communication check, and motor protection relay continuity testing. Units are shipped in anti-static packaging with individual serial number documentation to support traceability requirements in regulated industries.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund within the warranty period, subject to inspection of the returned item. Our technical support team is available to assist with installation questions, parameter configuration, and DeviceNet network troubleshooting before and after delivery. Expedited shipping options are available for critical production environments where downtime costs are significant.

Stock availability is confirmed prior to order acceptance. Lead times for in-stock units are typically 3–7 business days for international destinations, with express options available. All units are sourced through verified supply channels and are accompanied by documentation supporting authenticity and traceability.
