Allen-Bradley 150-F361NBDD Ruggedized Motor Controller

Product Overview

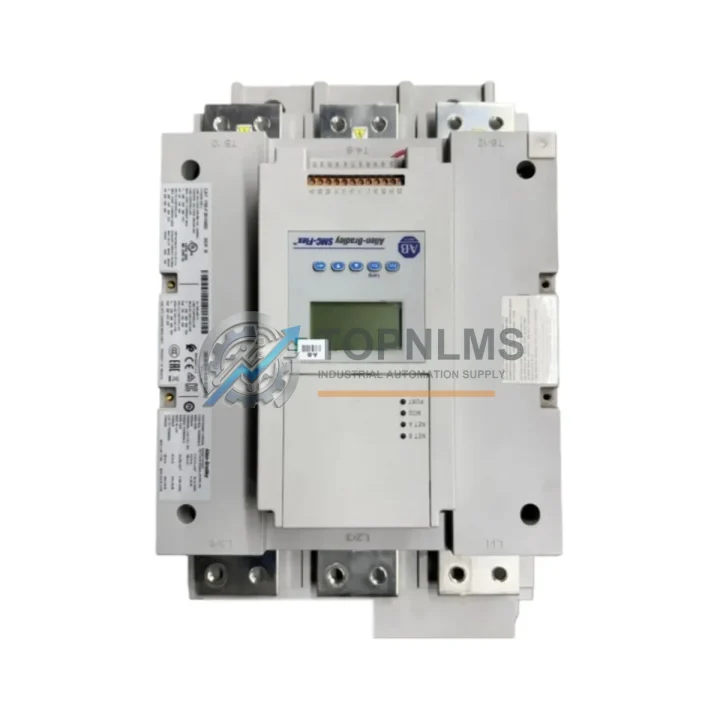

Allen-Bradley 150-F361NBDD Ruggedized Motor Controller for Harsh Environments

The Allen-Bradley 150-F361NBDD is a high-capacity Smart Motor Controller (SMC-Flex) engineered for continuous, reliable operation in the most demanding industrial environments. Rated at 361A and 480V AC with integrated DeviceNet communication and bypass functionality, this controller delivers precision soft-start and soft-stop motor management while withstanding the rigors of high-temperature, high-humidity, dust-laden, vibration-intensive, and electromagnetically noisy plant floors. Whether deployed in a petrochemical processing facility, a deep-shaft mining operation, a municipal water treatment plant, or a heavy-duty steel rolling mill, the 150-F361NBDD is built to protect critical motor assets and keep production lines running without interruption.

Designed within Rockwell Automation’s proven SMC-Flex architecture, this unit integrates seamlessly into Allen-Bradley PLC-based control systems — including ControlLogix, CompactLogix, and MicroLogix platforms — via DeviceNet, enabling real-time diagnostics, parameter monitoring, and remote fault management from the control room. Its bypass contactor eliminates heat dissipation concerns during full-voltage run mode, extending the service life of both the controller and the connected motor in thermally stressed environments.

Rugged Specifications Table

Comprehensive Protection Solutions

The 150-F361NBDD does not operate in isolation — it is a cornerstone component within a layered industrial protection architecture. In a typical heavy-industry control cabinet, it works in concert with Allen-Bradley 1756-IB16 ControlLogix digital input modules that monitor field sensor states, and Allen-Bradley 1756-OB16 output modules that command downstream actuators. The DeviceNet network connecting the SMC-Flex to the ControlLogix backplane is managed through a 1756-DNB DeviceNet Scanner module, ensuring deterministic, low-latency communication even in electromagnetically noisy environments such as arc furnace bays or variable-frequency drive (VFD) rooms.

For motor branch circuit protection upstream of the 150-F361NBDD, engineers commonly pair it with Allen-Bradley 140M Motor Protection Circuit Breakers, which provide short-circuit and overload protection at the feeder level. On the power supply side, Allen-Bradley 1606-XLP series industrial power supplies deliver stable 24V DC control power to the DeviceNet network nodes and I/O modules within the same panel. Where safety-rated isolation is required — for instance, in SIL 2 or SIL 3 certified safety loops — Allen-Bradley GuardLogix safety controllers and 1791DS-IB8XOBV4 safety I/O modules can be integrated into the same DeviceNet or EtherNet/IP architecture alongside the SMC-Flex.

In applications involving multiple large motors — such as conveyor drive systems in coal handling plants or pump stations in water distribution networks — the 150-F361NBDD is frequently deployed alongside Allen-Bradley 22F PowerFlex 4M variable frequency drives for motors requiring speed control, while the SMC-Flex handles fixed-speed high-inertia loads requiring controlled acceleration. Terminal connectivity within the control cabinet is typically managed via Allen-Bradley 1492-W series wiring duct and 1492-J series terminal blocks, ensuring organized, vibration-resistant wiring that meets IEC 60947 standards. For remote I/O expansion in distributed plant architectures, Allen-Bradley 1734 POINT I/O modules on DeviceNet provide flexible, modular field connectivity that complements the SMC-Flex’s network presence.

Application in Critical Infrastructure

The Allen-Bradley 150-F361NBDD is purpose-suited for critical infrastructure sectors where motor failure is not an option and unplanned downtime carries severe operational, financial, or safety consequences.

Oil & Gas Processing: In upstream and midstream facilities — compressor stations, pipeline booster pumps, and wellhead control systems — the 150-F361NBDD manages the soft-start of large centrifugal and reciprocating pump motors, preventing hydraulic shock and mechanical stress on couplings and seals. Its integrated ground fault detection is particularly valuable in hazardous area installations where insulation degradation must be caught before it becomes a safety incident.

Mining Operations: Underground and open-pit mining environments subject electrical equipment to extreme vibration, coal dust ingress, and wide ambient temperature swings. The SMC-Flex’s robust bypass contactor design eliminates the thermal cycling stress that would otherwise degrade SCR-based controllers in continuous-duty conveyor and crusher motor applications. Paired with IP54 or IP65 rated control enclosures, the 150-F361NBDD delivers reliable motor management in shaft hoisting, ore crushing, and ventilation fan systems.

Power Generation & Utilities: In thermal power plants and hydroelectric stations, auxiliary motor systems — cooling water pumps, forced draft fans, induced draft fans, and fuel oil transfer pumps — demand precise, repeatable soft-start performance. The 150-F361NBDD’s DeviceNet integration allows plant DCS systems to monitor motor current, voltage, and fault status in real time, supporting predictive maintenance programs and reducing unplanned outages.

Water & Wastewater Treatment: Municipal and industrial water treatment facilities rely on the SMC-Flex to manage large submersible and vertical turbine pump motors. The controller’s underload detection capability identifies pump cavitation or dry-run conditions before mechanical damage occurs, protecting expensive pump assets and maintaining process continuity in 24/7 operations.

Metallurgy & Heavy Industry: Steel mills, aluminum smelters, and cement plants operate motors in environments with intense electromagnetic interference from arc furnaces, induction heaters, and large VFD banks. The 150-F361NBDD’s EMC-compliant design and DeviceNet shielded cable compatibility ensure reliable network communication and accurate motor protection even in these electrically hostile conditions.
