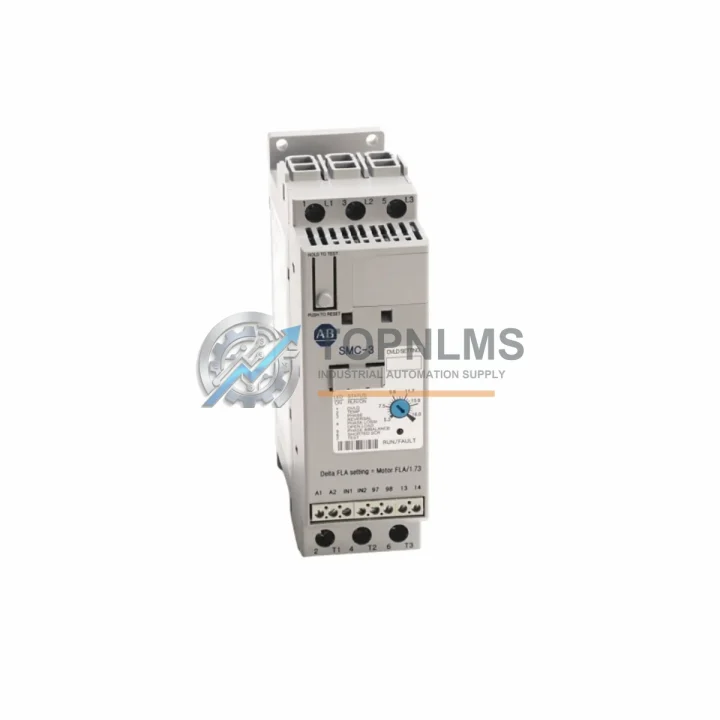

Allen-Bradley 150-C25NBR Replacement for SMC-3 Series

Product Overview

Allen-Bradley 150-C25NBR Replacement for SMC-3 Series: Seamless Transition & Legacy System Upgrade

When your Allen-Bradley 150-C25NBR SMC-3 soft starter reaches end-of-life or becomes unavailable through standard distribution channels, production continuity depends on sourcing a verified replacement that preserves your existing wiring topology, motor control logic, and control cabinet layout. The 150-C25NBR is a 25A, 600V-rated solid-state soft starter from Rockwell Automation’s SMC-3 series — a platform widely deployed across pump stations, conveyor systems, compressor drives, and HVAC motor control centers throughout the 1990s and 2000s. This product page provides procurement and retrofit guidance for engineers and maintenance teams planning a direct replacement or a controlled upgrade migration.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful 150-C25NBR replacement rarely involves the soft starter in isolation. In most SMC-3 installations, the soft starter operates alongside a broader motor control architecture that must be evaluated before any swap is executed.

In systems where the 150-C25NBR is wired into a Motor Control Center (MCC) bucket, the adjacent Allen-Bradley 100-C23D10 IEC contactor or 140M-C2E-B25 motor protection circuit breaker typically governs upstream isolation. These components should be inspected for contact wear and trip calibration before commissioning the replacement soft starter. If the MCC bucket also houses a 1492-SP1C060 supplementary protector or a 1492-GH030 terminal block assembly, verify that the terminal torque ratings are still within spec after years of thermal cycling.

For sites running a MicroLogix 1100 or SLC 500 controller that issues start/stop commands to the 150-C25NBR via discrete I/O, the replacement unit accepts the same 3-wire control wiring (Run Forward, Run Reverse, Stop) without any PLC program modification. If your site is simultaneously upgrading the controller to a CompactLogix L18ER or ControlLogix L73, the SMC-50 variant with an embedded EtherNet/IP port allows the soft starter to appear as a native device on the Studio 5000 I/O tree — eliminating the need for a separate 1734-AENT POINT I/O adapter for motor status feedback.

In installations where the 150-C25NBR feeds a pump or fan motor through a 1321-3R10-B line reactor, the reactor remains fully compatible with the replacement unit. No derating is required at 25A. If the site uses a 1492-CABLE010Y pre-wired cable assembly for the control circuit, the same cable pinout applies to the replacement 150-C25NBR without modification.

For facilities that have already migrated their primary drives to PowerFlex 525 or PowerFlex 4M variable frequency drives but retained soft starters for fixed-speed motor loads, the 150-C25NBR replacement integrates into the same control cabinet without disrupting the drive network. The DeviceNet segment served by a 1788-CN2DN ControlNet-to-DeviceNet linking device remains unaffected, as the base 150-C25NBR operates on hardwired I/O only.

If your retrofit scope includes replacing the HMI, a PanelView Plus 7 Standard 700 (2711P-T7C22D9P) communicating over EtherNet/IP can display soft starter status tags from an SMC-50 upgrade without additional gateway hardware — a significant simplification over legacy PanelView 550 DH-485 configurations that required a 1761-NET-AIC Advanced Interface Converter.

Retrofit Guidance FAQ

Q: Can I reuse the existing control wiring when replacing the 150-C25NBR?
Yes. The SMC-3 series uses a standardized 3-wire control interface. The replacement unit accepts the same Run, Stop, and common terminals. No rewiring is required if the control voltage suffix matches (N = 120V AC).

Q: Will my SLC 500 or MicroLogix program need modification?
No. The 150-C25NBR replacement responds to the same discrete output signals from the PLC. If you are upgrading to an SMC-50 with DeviceNet or EtherNet/IP, a minor I/O configuration update in RSLogix 500 or Studio 5000 is required to map the new device address.

Q: Does the replacement unit fit the same panel cutout and DIN rail position?
Yes. The SMC-3 25A form factor is preserved in direct replacement units. The mounting hole pattern, terminal block positions, and overall depth are identical, ensuring zero cabinet modification.

Q: What communication protocols does the 150-C25NBR support?
The base 150-C25NBR (no communication suffix) operates on hardwired discrete I/O only. An optional 150-SM2 DeviceNet communication module can be added to the SMC-3 platform for network integration. The SMC-50 upgrade path natively supports EtherNet/IP and DeviceNet.

Q: How do I handle the bypass contactor during replacement?
The 150-C25NBR includes an internal bypass contactor (B suffix). The replacement unit ships with the bypass pre-installed. No external bypass contactor wiring changes are needed. Verify bypass contactor operation during commissioning by monitoring motor current ramp-up profile.

Q: What is the recommended commissioning procedure after installation?
After mechanical installation and wiring verification: (1) Apply control power and confirm LED status. (2) Perform a no-load test start to verify ramp time settings. (3) Apply full motor load and confirm current draw is within nameplate rating. (4) Log the first 5 start cycles for baseline diagnostics. No special tools are required for the base SMC-3 replacement.

Warranty Assurance

Every 150-C25NBR replacement unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to shipment, each unit undergoes functional verification including control power energization, bypass contactor operation check, and terminal continuity testing. Units are packed in anti-static, shock-resistant packaging suitable for international air and sea freight.

If a unit exhibits any defect in materials or workmanship within the warranty period, TOPNLMS will arrange a replacement shipment or issue a full refund — whichever the customer prefers. Our average response time for warranty claims is under 24 hours. Replacement units are dispatched from our Xiamen warehouse within 2 business days of claim confirmation.

For procurement teams requiring documentation, we provide: commercial invoice, packing list, test report, and certificate of conformity upon request. DDP (Delivered Duty Paid) shipping terms are available for select destinations. Bulk order pricing and consignment stock arrangements are available for MRO distributors and system integrators managing multi-site SMC-3 fleet replacements.

Contact our technical sales team to confirm availability, lead time, and compatibility before placing your order.
