Allen-Bradley 1492-XIM4024-16R Original Industrial Spare 1492-XIM Compatible

Product Overview

Allen-Bradley 1492-XIM4024-16R Original Industrial Spare: System Stability & Relay Interface Maintenance Value

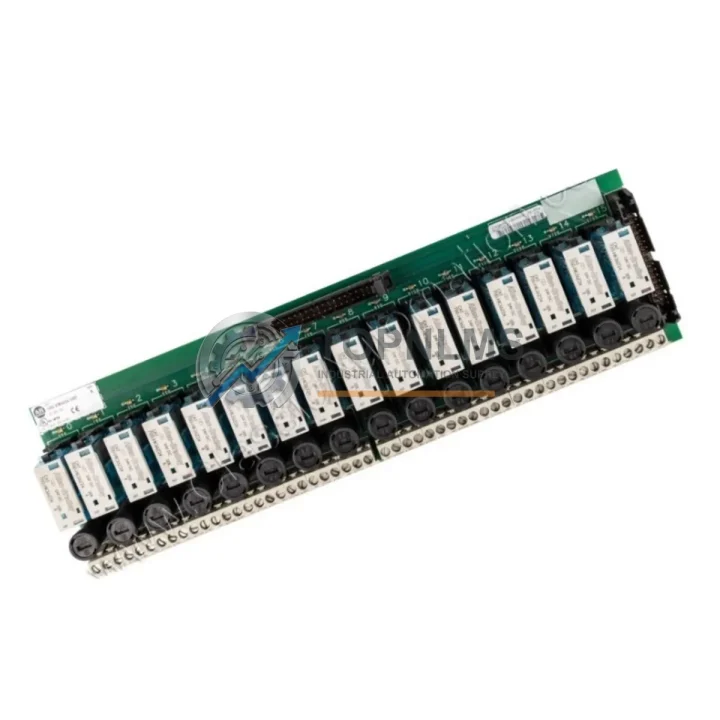

The Allen-Bradley 1492-XIM4024-16R is a 16-channel relay interface module from Rockwell Automation’s 1492-XIM series, engineered to provide reliable electrical isolation between PLC output circuits and field devices in demanding industrial environments. As a critical interface component in Allen-Bradley control architectures, this module bridges the gap between low-voltage PLC I/O signals and higher-voltage field loads — protecting your controller backplane and ensuring long-term system stability across manufacturing, process control, and machine automation applications.

For maintenance engineers managing aging Allen-Bradley ControlLogix, CompactLogix, or MicroLogix systems, sourcing a verified original 1492-XIM4024-16R is often the fastest path to restoring full I/O functionality after relay contact wear, coil failure, or isolation degradation. Keeping this module in your spare parts inventory eliminates the risk of extended downtime caused by lead-time delays on critical interface components.

Critical Technical Specs

Preventive Maintenance Strategy for 1492-XIM4024-16R and Associated Control Cabinet Components

In any planned shutdown or preventive maintenance cycle involving Allen-Bradley relay interface modules, the 1492-XIM4024-16R rarely fails in isolation. Relay contacts degrade over time due to switching cycles, inductive load arcing, and environmental contamination. When scheduling a cabinet inspection or I/O module replacement, experienced maintenance teams treat this as an opportunity to audit the entire relay interface and I/O subsystem.

Start with the 1492-XIM4024-16R itself — inspect relay contact resistance, coil continuity, and isolation integrity. If contact wear is detected on even a few channels, replacing the full module is more cost-effective than attempting field-level contact repair. At the same time, inspect the associated 1492-XIMK terminal block kits and 1492-XIM base modules, as worn or corroded terminal connections are a common secondary failure point that can cause intermittent I/O faults even after the relay module is replaced.

While the control cabinet is open, verify the condition of the 1756-OB16 or 1756-OB32 ControlLogix digital output modules driving the relay coils. Output transistor degradation on these modules can cause erratic relay switching behavior that is often misdiagnosed as a relay module fault. Similarly, check the 1756-IB16 or 1756-IB32 digital input modules receiving feedback signals from field devices through the relay contacts — input filter drift can mask intermittent contact issues.

Power supply integrity is equally critical. The 1756-PA75 or 1756-PB75 ControlLogix power supply modules should be load-tested during any planned maintenance window. Voltage ripple or sag under load can cause relay coil undervoltage, leading to contact chatter and premature wear on the 1492-XIM4024-16R. If the system uses a 1606-XLP power supply for 24V DC field power distribution, verify output voltage stability under full relay load.

For systems with high I/O density, also inspect 1492-IFM (Interface Module) wiring systems and 1492-CABLE pre-wired cable assemblies connecting the PLC rack to the relay interface modules. Insulation degradation, loose ferrules, and connector oxidation in these cable assemblies are a leading cause of intermittent I/O faults that are difficult to diagnose without physical inspection. Replacing aged cable assemblies during a planned outage is far less costly than an unplanned shutdown caused by a wiring fault.

Finally, if the control system includes 1747-SN Remote I/O Scanner modules or 1756-DNB DeviceNet Bridge modules for distributed I/O communication, verify network diagnostic counters for error accumulation — communication faults can trigger false relay outputs that accelerate contact wear on the 1492-XIM4024-16R. A comprehensive preventive maintenance approach that addresses the full signal chain — from PLC output module through relay interface to field device — is the most effective strategy for maximizing system uptime and extending the service life of your Allen-Bradley control infrastructure.

Strategic Replacement Solutions: Reducing Downtime with Original 1492-XIM4024-16R Spares

The 1492-XIM4024-16R is a mature product in the Allen-Bradley 1492-XIM series, and while Rockwell Automation continues to support this platform, field availability of original units through authorized distribution channels can be inconsistent — particularly for facilities managing large installed bases of legacy SLC 500 or PLC-5 systems that have been migrated to ControlLogix without full I/O hardware replacement.

Stocking one or two verified original 1492-XIM4024-16R modules as on-site cold spares is a straightforward risk mitigation strategy. The module’s standardized DIN rail mounting and plug-compatible terminal block interface mean that a trained technician can complete a hot-swap replacement in under 30 minutes without requiring PLC program changes or I/O address remapping — provided the replacement unit is pre-tested and confirmed functional before the maintenance window begins.

For facilities transitioning from older 1492-XIM series variants, the 1492-XIM4024-16R is directly compatible with existing 1492-XIM base assemblies and terminal block wiring, eliminating the need for cabinet rewiring during replacement. This backward compatibility is a significant advantage in brownfield retrofit projects where minimizing modification scope is a priority.

All units supplied through TOPNLMS are inspected, function-tested against original Rockwell Automation specifications, and shipped with full documentation. Each unit carries a 12-month warranty from the date of shipment, covering functional defects under normal operating conditions. Expedited shipping options are available to support emergency maintenance scenarios where minimizing mean time to repair (MTTR) is critical.

Support FAQ

Q1: Is the 1492-XIM4024-16R compatible with both ControlLogix and SLC 500 I/O systems?
Yes. The 1492-XIM4024-16R is designed to interface with Allen-Bradley PLC output modules across multiple platforms, including ControlLogix (1756 series), CompactLogix (1769 series), SLC 500 (1746 series), and PLC-5 (1771 series) I/O racks, provided the output module coil voltage matches the 24V DC coil rating of this relay interface module. Always verify the output module’s current sourcing capacity against the relay coil current draw before installation.

Q2: What is the recommended spare parts lifecycle strategy for relay interface modules in continuous production environments?
For 24/7 production facilities, we recommend maintaining a minimum of one cold spare per control cabinet containing 1492-XIM4024-16R modules, with a planned replacement interval of 5–7 years or upon detection of contact resistance exceeding 100mΩ under rated load. Modules in high-cycle applications (>100,000 operations/year) should be inspected annually and replaced proactively rather than reactively to avoid unplanned downtime.

Q3: How are units tested and verified before shipment?
All 1492-XIM4024-16R units supplied by TOPNLMS undergo functional testing including coil energization verification across all 16 channels, contact continuity and resistance measurement, isolation voltage testing between coil and contact circuits, and visual inspection for physical damage, corrosion, or counterfeit indicators. A test report is available upon request. Units are shipped in anti-static packaging with original or equivalent protective labeling.

Q4: What does the 12-month warranty cover, and what is the claims process?
The 12-month warranty covers functional failure of the 1492-XIM4024-16R under normal operating conditions within the module’s rated electrical and environmental specifications. It does not cover damage resulting from overvoltage, incorrect installation, physical impact, or operation outside rated parameters. To initiate a warranty claim, contact TOPNLMS with the order reference, a description of the failure mode, and photographic documentation of the installation. Replacement or repair will be arranged within 5 business days of claim verification.
