Allen-Bradley 1492-AIFM8-3 Replacement for 1492-AIFM Series

Product Overview

Allen-Bradley 1492-AIFM8-3 Replacement for 1492-AIFM Series: Seamless Migration & Smooth Transition

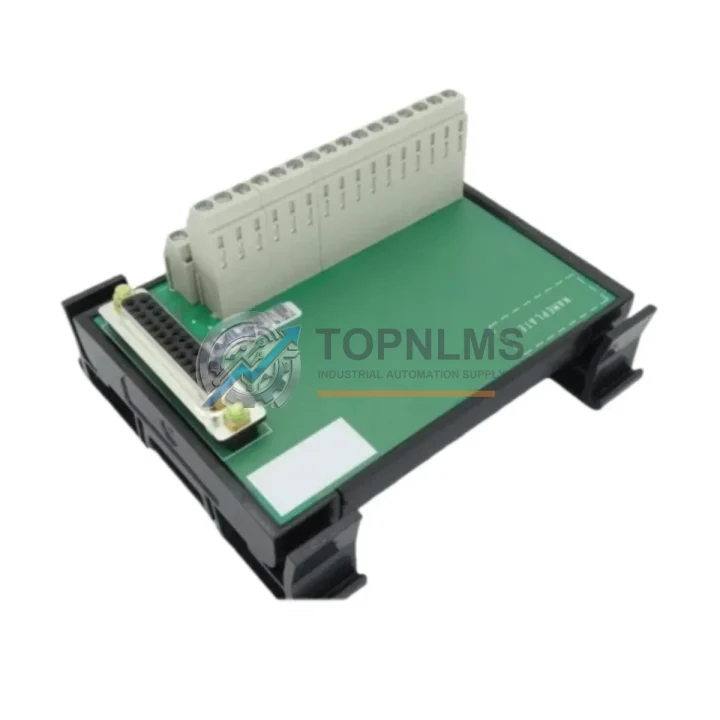

The Allen-Bradley 1492-AIFM8-3 is an 8-channel, 3-wire analog interface module designed for use within the 1492-AIFM Series wiring system. As legacy ControlLogix, CompactLogix, and SLC 500 installations age, many facilities are encountering discontinued or hard-to-source analog interface components. The 1492-AIFM8-3 serves as a direct replacement and upgrade solution for aging or obsolete analog front-end wiring modules, enabling engineers to restore full system functionality without redesigning the control cabinet or rewriting PLC programs.

This module interfaces directly with Allen-Bradley 1746 SLC 500 analog I/O modules and 1756 ControlLogix analog cards, providing a structured, DIN-rail-mounted terminal block arrangement that simplifies field wiring. The 3-wire configuration supports transmitter-powered (loop-powered) and separately-powered analog sensors, making it compatible with the majority of 4–20 mA process instrumentation found in legacy process control systems.

When migrating from older wiring panel layouts—particularly those using discrete terminal strips or earlier-generation 1492-IFM interface modules—the 1492-AIFM8-3 provides a plug-and-compatible upgrade path. The module’s pre-wired cable connection to the analog I/O card eliminates point-to-point field wiring errors and dramatically reduces commissioning time during retrofit projects.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful migration from a legacy analog wiring system to the 1492-AIFM8-3 typically involves coordinating several interconnected components within the same control cabinet or rack. During retrofit projects, engineers commonly replace or verify the following alongside the 1492-AIFM8-3:

The 1746-NI8 (SLC 500 8-channel analog input module) is the most frequent companion card, as the 1492-AIFM8-3 is specifically designed to interface with it via a pre-wired ribbon or flying-lead cable assembly. In ControlLogix environments, the 1756-IF8 or 1756-IF16 analog input cards serve the same role, and the 1492-AIFM8-3 provides the structured field-side termination that these cards require for clean, auditable wiring.

Power supply integrity is critical in analog signal chains. Many retrofit projects also address the 1606-XLP power supply or equivalent 24 VDC panel power modules to ensure stable loop power for 3-wire transmitters connected through the 1492-AIFM8-3. Unstable supply voltage is a common root cause of analog signal drift in aging systems.

For facilities running EtherNet/IP-based architectures, the migration may also involve verifying or upgrading the 1756-EN2T EtherNet/IP communication module in the ControlLogix chassis to ensure the analog data collected through the 1492-AIFM8-3 is correctly mapped and transmitted to the SCADA or DCS layer without latency issues.

In SLC 500 panel environments, the 1746-A10 or 1746-A13 rack chassis may need inspection or replacement as part of the same modernization effort, particularly when the analog I/O card slot alignment or backplane integrity is in question. The 1492-AIFM8-3 mounts externally on DIN rail and does not occupy a rack slot, making it compatible with any chassis configuration.

Signal conditioning and isolation are also common considerations. When field sensors introduce ground loops or noise into the analog signal chain, engineers often add signal isolators or loop-powered signal conditioners between the field device and the 1492-AIFM8-3 terminal inputs. This is especially relevant in high-EMI environments such as motor control centers or variable frequency drive (VFD) panels where PowerFlex 40 or PowerFlex 525 drives operate in close proximity to analog wiring.

Finally, for programming and diagnostics during commissioning, a 1747-UIC USB-to-DH485 interface cable or 1756-USB programming cable is typically used to connect a laptop running Studio 5000 Logix Designer or RSLogix 500 to verify analog channel scaling, calibration offsets, and I/O tag mapping after the 1492-AIFM8-3 installation is complete.

Retrofit Guidance FAQ

Q: Can the 1492-AIFM8-3 replace my existing terminal strip wiring without changing the PLC program?
A: Yes. The 1492-AIFM8-3 is a field-side wiring interface only. It does not alter the I/O card’s channel mapping or signal scaling. Your existing analog I/O tags, scaling parameters, and PLC logic remain unchanged. Only the physical wiring at the terminal side is reorganized onto the module’s structured terminal blocks.

Q: What cable assembly connects the 1492-AIFM8-3 to the analog I/O card?
A: Allen-Bradley offers pre-wired cable assemblies (1492-CABLE series) in various lengths to connect the 1492-AIFM8-3 to compatible analog I/O cards such as the 1746-NI8 or 1756-IF8. The cable plugs directly into the I/O card’s connector, eliminating individual wire terminations at the card end.

Q: Is the 3-wire configuration compatible with my 2-wire loop-powered transmitters?
A: The 1492-AIFM8-3’s 3-wire layout provides terminals for signal+, signal−, and a separate power terminal per channel. 2-wire loop-powered transmitters can be connected by using the power terminal to supply 24 VDC loop power, with the signal wires connected to the signal terminals. No hardware modification is required.

Q: How much DIN rail space does the 1492-AIFM8-3 require?
A: The module has a compact DIN-rail footprint suitable for standard 35 mm DIN rail. It is designed to fit within existing control cabinet layouts without requiring panel modifications, making it ideal for in-place retrofit without cabinet redesign.

Q: What communication protocols are affected by this replacement?
A: None. The 1492-AIFM8-3 is a passive analog wiring interface. It does not participate in any communication protocol (EtherNet/IP, DeviceNet, DH+, etc.). All protocol-level communication remains handled by the PLC processor and communication modules upstream.

Q: Can this module be used in a ControlLogix system replacing a CompactLogix analog wiring arrangement?
A: Yes, provided the analog I/O card used (e.g., 1756-IF8) is compatible with the 1492-AIFM8-3 cable assembly. The module is platform-agnostic at the field-wiring level and is compatible with any Allen-Bradley analog I/O card that supports the 1492-AIFM interface standard.

Warranty Assurance

Every 1492-AIFM8-3 unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to shipment, each unit undergoes functional inspection including terminal continuity verification, connector integrity check, and visual inspection for physical damage or counterfeit indicators.

If a unit is found to be defective within the warranty period, TOPNLMS will provide a replacement unit or full refund based on the customer’s preference. Our after-sales response target is within 24 business hours for warranty claims submitted via email or phone.

We maintain in-stock inventory of the 1492-AIFM8-3 and related 1492-AIFM Series components to support urgent replacement needs. Orders confirmed before the daily cutoff are typically dispatched the same business day from our Xiamen warehouse, with international express shipping options available for time-critical plant maintenance scenarios.

For B2B procurement, we support purchase order (PO) workflows, proforma invoice issuance, and documentation packages including packing lists, commercial invoices, and certificates of conformance upon request.
