Request availability, condition, lead time and export shipping details for 1492-AIFM16-F-3.
Send this exact part number, quantity and destination country. TOPNLMS will confirm availability, condition and export lead time before quotation.

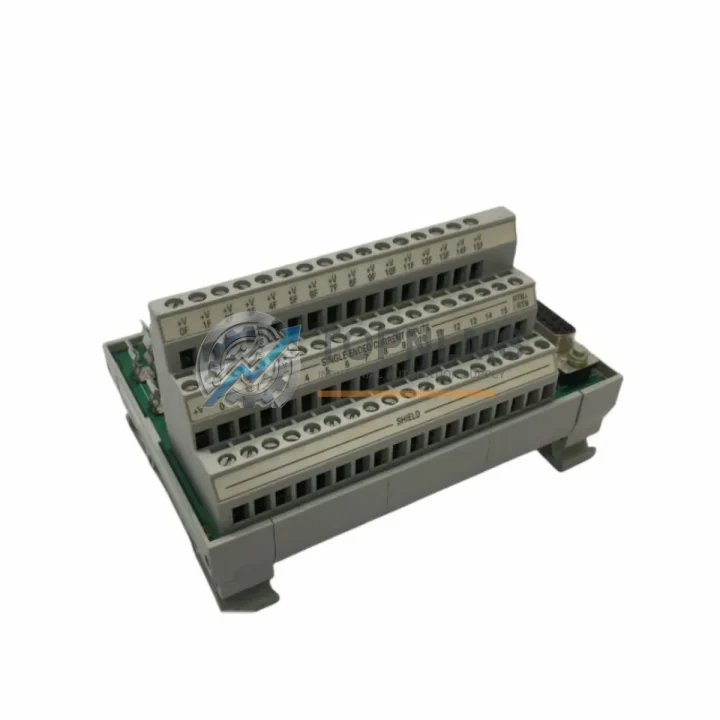

The Allen-Bradley 1492-AIFM16-F-3 is a 16-channel analog input interface module (IFM) designed to bridge field wiring to Allen-Bradley analog I/O modules within ControlLogix, CompactLogix, and legacy SLC 500 / PLC-5 control architectures. As industrial facilities accelerate migration away from aging distributed control systems and first-generation Logix platforms, the 1492-AIFM16-F-3 continues to serve as a critical wiring interface — and sourcing a verified replacement or upgrade-compatible unit is essential to maintaining uptime during retrofit projects.
At TOPNLMS, we stock the 1492-AIFM16-F-3 as a direct replacement module, fully tested and ready for immediate deployment. Whether you are replacing a failed unit in a running production line, consolidating spare parts inventory ahead of a planned shutdown, or executing a phased migration from a legacy Rockwell Automation system to a current-generation ControlLogix 5580 or CompactLogix 5380 platform, this module delivers the wiring compatibility and signal integrity your application demands.
| Parameter | Legacy / Replaced Model | 1492-AIFM16-F-3 (This Unit) |
|---|---|---|
| Module Type | Discrete or earlier IFM variants (e.g., 1492-AIFM8-F-3) | 16-Channel Analog Input IFM |
| Channel Count | 8-channel (1492-AIFM8-F-3) or custom wired terminal blocks | 16 channels — doubles density per module slot |
| Signal Type | Varies by legacy wiring (4–20 mA / 0–10 V field devices) | Compatible with 4–20 mA and 0–10 V analog field signals |
| Connector Interface | Individual terminal blocks or older IFM 40-pin connectors | 40-pin connector — mates directly with 1756-IF16 / 1769-IF16C analog input modules |
| Mounting | DIN rail or panel-mount terminal blocks | DIN rail mount — standard 35 mm DIN rail, same footprint as IFM series |
| Communication Protocol | Hardwired analog (no fieldbus dependency) | Hardwired analog — no protocol change required; backplane communication handled by parent I/O module |
| Compatible I/O Modules | 1756-IF16, 1769-IF16C, 1746-NI16I (SLC 500) | 1756-IF16, 1769-IF16C — direct plug-in replacement wiring interface |
| Installation Space | Requires individual terminal block rows | Compact IFM form factor — reduces panel wiring space by up to 40% |
| Replacement Recommendation | Discontinue individual terminal block wiring for analog channels | Direct drop-in IFM replacement — no re-engineering of field wiring required |
| Warranty | N/A (legacy / end-of-life) | 12-Month Warranty — covered from date of shipment |
A successful migration from a legacy analog I/O architecture to a modern Logix-based system involves more than swapping a single module. When integrating the 1492-AIFM16-F-3 into your control cabinet, the following components are commonly required or upgraded in parallel:
The 1756-IF16 ControlLogix 16-channel analog input module is the primary I/O module that the 1492-AIFM16-F-3 interfaces with via its 40-pin connector. If your existing 1756-IF16 is approaching end-of-service or showing calibration drift, replacing it alongside the IFM module ensures a clean, verified signal chain from field device to controller. For CompactLogix applications, the 1769-IF16C serves the equivalent role and accepts the same IFM wiring interface.
On the controller side, facilities migrating from SLC 500 or PLC-5 platforms often upgrade to a 1756-L85E ControlLogix 5580 controller, which offers significantly expanded memory, faster scan times, and native EtherNet/IP connectivity. The 1492-AIFM16-F-3 wiring infrastructure remains fully reusable in this migration path — field wiring does not need to be re-terminated. For smaller machine-level applications, the 1769-L33ER CompactLogix 5370 provides a cost-effective controller upgrade while retaining compatibility with the 1769 I/O family.
Power distribution within the control cabinet should also be reviewed during any analog I/O upgrade. The 1756-PA75 ControlLogix power supply provides stable 24 VDC backplane power for the 1756 chassis, while field-side analog loops typically require a dedicated 24 VDC DIN rail power supply (such as the Allen-Bradley 1606-XLP series) to maintain signal isolation and prevent ground loop interference across the 16 analog channels.
For facilities that rely on HART-enabled field instruments, the 1492-AIFM16-F-3 can be paired with a HART multiplexer or a HART-capable analog input module such as the 1756-IF16H to enable asset management and diagnostics without additional field wiring changes. This is particularly valuable in process industries where transmitters such as pressure, temperature, and flow devices require remote configuration via HART protocol.
Programming continuity is another key concern during migration. If your facility uses RSLogix 5000 or Studio 5000 Logix Designer, the analog channel configuration for the 1756-IF16 module — including scaling, filter settings, and alarm limits — can be exported and re-imported with minimal modification. A 1784-U2DHP USB-to-DH+ programming cable or a standard EtherNet/IP programming connection via the controller’s built-in port is all that is required to download updated programs during commissioning.
For applications where signal isolation between field devices and the control system is required — particularly in high-noise industrial environments or where intrinsic safety barriers are installed — a signal isolator or loop-powered isolator (such as the Phoenix Contact MINI Analog series or equivalent) can be inserted between the field transmitter and the 1492-AIFM16-F-3 terminal without any modification to the IFM wiring interface.
Q: Can I reuse existing field wiring when installing the 1492-AIFM16-F-3?
A: Yes. The 1492-AIFM16-F-3 is designed to accept standard 0.5–2.5 mm² field wiring directly at its screw terminals. If you are replacing individual terminal blocks with this IFM module, field wires can be re-terminated directly without re-pulling cables, significantly reducing installation time and the risk of wiring errors.
Q: Is the 1492-AIFM16-F-3 compatible with both ControlLogix and CompactLogix analog I/O modules?
A: The 1492-AIFM16-F-3 is primarily designed for use with the 1756-IF16 ControlLogix analog input module. For CompactLogix systems using the 1769-IF16C, verify the connector pinout against the IFM wiring diagram before installation, as connector keying may differ between chassis families.
Q: Do I need to modify my Studio 5000 program after replacing the IFM module?
A: No program changes are required when replacing a like-for-like 1492-AIFM16-F-3 unit. The IFM module is a passive wiring interface — it contains no firmware, no configuration, and no backplane identity. All analog channel configuration resides in the 1756-IF16 or 1769-IF16C module tags within your Logix project.
Q: What are the physical space requirements for installing this module in an existing control cabinet?
A: The 1492-AIFM16-F-3 mounts on a standard 35 mm DIN rail and occupies approximately 45 mm of rail width. Ensure a minimum of 50 mm clearance above and below the module for cable management. The module is designed to be installed adjacent to the analog I/O module it serves, with the 40-pin cable routed directly between the two units.
Q: Can this module be used in a SIL-rated safety application?
A: The 1492-AIFM16-F-3 is not independently SIL-rated. For safety-instrumented system (SIS) applications, consult the safety manual for your specific analog input module (e.g., 1756-IF16 used in a GuardLogix system) and verify that the IFM wiring interface does not compromise the safety function’s diagnostic coverage or common-cause failure requirements.
Q: What communication protocols are supported?
A: The 1492-AIFM16-F-3 is a passive analog wiring interface and does not participate in any fieldbus or industrial Ethernet protocol. Communication between the analog I/O module and the ControlLogix or CompactLogix controller occurs over the chassis backplane using the standard Logix I/O connection — EtherNet/IP, ControlNet, or DeviceNet, depending on your system architecture.
Every 1492-AIFM16-F-3 unit shipped by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each module undergoes a functional inspection to verify connector integrity, terminal block condition, and physical conformance to Allen-Bradley IFM series specifications.
If a unit is found to be defective within the warranty period, TOPNLMS will arrange a replacement shipment or issue a refund based on your preference. Our after-sales response target is within 24 business hours of a warranty claim submission. We maintain buffer stock of the 1492-AIFM16-F-3 and related IFM series modules to support rapid replacement without extended lead times.
For procurement teams managing planned maintenance shutdowns or building spare parts inventory, we offer bulk quotation support and can provide documentation including packing lists, commercial invoices, and certificates of conformance upon request. All units are shipped from Xiamen, China, with standard export packaging suitable for international air freight or sea freight consolidation.
To place an order, request a quotation, or verify current stock availability, contact our technical sales team directly:
Allen-Bradley 1788-CN2FF ControlNet fiber ring repeater. Ruggedized for harsh environments. In stock, tested, 12-month warranty. Fast shipping from TOPNLMS.
Allen-Bradley 1788-ENBT EtherNet/IP Daughterboard replacement for ControlLogix. Compatible upgrade, 12-month warranty, fast global shipping from stock.
Allen-Bradley OCM-DPR-85-D-ST dual-port fiber optic communication module for PLC-5. EMI-immune, harsh-environment rated. In stock, tested, 12-month warranty.
Original Allen-Bradley 1785-BCM/C Backup Communications Module. PLC-5 compatible, redundant control spare. In stock, tested, 12-month warranty. Fast ship.
Click Quote This Model and the Part Number field will auto-fill with 1492-AIFM16-F-3.
