Allen-Bradley 1440-SPD02-01RB Replacement for Dynamix 1440: Smooth Transition from Legacy Speed Monitoring Systems

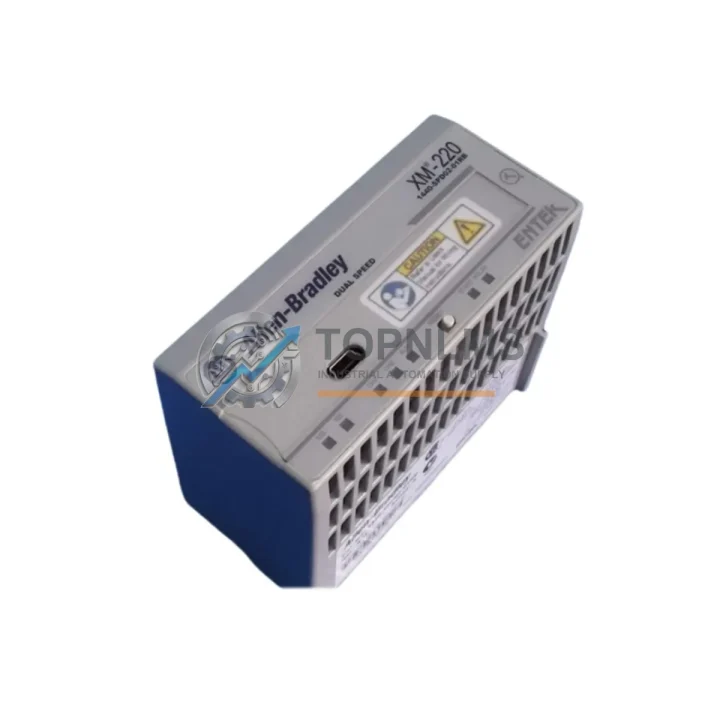

The Allen-Bradley 1440-SPD02-01RB is a dual-channel speed measurement module designed for the Rockwell Automation Dynamix 1440 condition monitoring platform. As legacy vibration and speed monitoring systems reach end-of-life or become increasingly difficult to source, plant engineers and maintenance teams face mounting pressure to replace or upgrade critical measurement hardware without disrupting continuous production processes. This module serves as a direct replacement or upgrade solution for facilities transitioning away from older Bently Nevada 3500-series speed monitors, legacy Entek IRD systems, or first-generation Dynamix 1444 configurations that no longer meet modern predictive maintenance requirements.

The 1440-SPD02-01RB integrates seamlessly into existing Dynamix 1440 chassis installations. Its dual-channel architecture supports simultaneous monitoring of two independent speed inputs — typically magnetic pickup (MPU) or proximity probe signals — making it well-suited for rotating machinery such as turbines, compressors, pumps, fans, and gearboxes. When migrating from a single-channel legacy speed card, the dual-channel design of the 1440-SPD02-01RB allows consolidation of two measurement points into a single module slot, reducing rack space requirements and simplifying wiring in congested control cabinets.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful migration to the 1440-SPD02-01RB rarely involves replacing a single module in isolation. In most retrofit projects, the speed measurement module works in concert with a broader set of Dynamix 1440 components. The 1440-VSPD06-01RB vibration and speed combination module is frequently deployed alongside the 1440-SPD02-01RB in the same chassis to provide comprehensive machinery health monitoring — covering both vibration amplitude and rotational speed from a unified platform. For facilities that also monitor shaft displacement, the 1440-REX00-04RB relay expansion module provides configurable relay outputs that can be mapped to speed trip setpoints defined in the 1440-SPD02-01RB channels.

Communication between the Dynamix 1440 chassis and the plant’s control network is handled by the 1440-ACNR09-04RB EtherNet/IP communication module, which aggregates data from all installed measurement modules — including the 1440-SPD02-01RB — and presents them as standard EtherNet/IP tags readable by any ControlLogix or CompactLogix PLC running Studio 5000. If the existing control system uses a 1756-EN2T or 1756-EN3TR EtherNet/IP scanner card in a ControlLogix rack, no additional protocol conversion is required; the Dynamix 1440 gateway maps directly into the existing I/O tree.

For sites upgrading from hardwired relay-based speed protection panels, the transition to the 1440-SPD02-01RB typically requires re-terminating field wiring from the magnetic pickup or proximity probe at the module’s input terminal block. The 1440-TB-A terminal block accessory simplifies this process by providing clearly labeled screw terminals compatible with standard 18–24 AWG shielded twisted-pair cable. In applications where signal cable runs exceed 50 meters or pass through electrically noisy environments near variable frequency drives (VFDs) or large motor starters, a 1440-SIM-A signal isolator or equivalent DIN-rail mounted signal conditioner is recommended to eliminate ground loops and ensure measurement accuracy.

Power distribution within the control cabinet is another key consideration during migration. The Dynamix 1440 chassis requires a stable 24 VDC supply; a dedicated 1606-XLP95E or equivalent Rockwell Automation SMPS power supply module is recommended to ensure clean, regulated power isolated from the main PLC backplane supply. This separation prevents voltage transients from motor starts or solenoid switching from affecting the precision speed measurement circuitry of the 1440-SPD02-01RB.

For HMI integration, the speed data acquired by the 1440-SPD02-01RB can be displayed on any PanelView Plus 7 terminal connected to the same EtherNet/IP network, using standard FactoryTalk View ME tag browsing to map speed values, alarm states, and trip status directly to operator display screens — no custom scripting required. This makes the upgrade path from legacy analog speed indicators to fully networked digital monitoring straightforward for both the controls engineer and the plant operator.

Retrofit Guidance FAQ

Q: Can the 1440-SPD02-01RB replace a Bently Nevada 3500/25 speed monitor directly?
A: Not as a direct plug-in replacement — the Bently Nevada 3500 series uses a proprietary rack architecture. However, the 1440-SPD02-01RB can replace the functional role of the 3500/25 by installing a new Dynamix 1440 chassis alongside or in place of the 3500 rack. Field wiring from the proximity probes or MPU sensors is re-terminated at the 1440 chassis terminal blocks. The measurement configuration is then replicated in Connected Components Workbench, and trip setpoints are re-entered to match the original protection philosophy.

Q: Is rewiring required when replacing an older 1440-series speed module with the 1440-SPD02-01RB?
A: If the existing installation already uses a Dynamix 1440 chassis, the 1440-SPD02-01RB is a slot-compatible replacement. Field wiring connected to the terminal block of the previous module can typically be transferred directly to the new module’s terminal block with no modification, provided the sensor type (MPU or proximity probe) and wiring polarity are preserved. Configuration parameters must be re-entered or downloaded from a backup project file.

Q: What communication protocols does the 1440-SPD02-01RB support?
A: The module itself does not communicate independently — it reports measurement data to the Dynamix 1440 chassis backplane, which is then transmitted to the plant network via the 1440-ACNR09-04RB EtherNet/IP communication module. The resulting data is accessible as standard EtherNet/IP implicit (cyclic) or explicit (message) data, compatible with all Rockwell Automation PLCs and SCADA systems supporting EtherNet/IP.

Q: How much DIN-rail or panel space does the Dynamix 1440 chassis require compared to legacy systems?
A: The Dynamix 1440 chassis is a compact modular platform. A 4-slot chassis housing the communication module and three measurement modules (including the 1440-SPD02-01RB) occupies approximately 200mm of DIN-rail width — significantly less than a comparable Bently Nevada 3500 rack. This makes it suitable for retrofitting into existing control cabinets without major structural modifications.

Q: Can the 1440-SPD02-01RB be used with non-Rockwell PLCs?
A: Yes, indirectly. Because the Dynamix 1440 gateway communicates via standard EtherNet/IP, any PLC or DCS with an EtherNet/IP scanner capability — including Siemens S7 systems with EtherNet/IP communication processors, or Schneider Electric Modicon PLCs with EtherNet/IP adapters — can read speed data from the 1440-SPD02-01RB through the gateway module.

Q: What is the startup and commissioning procedure after installation?
A: After physical installation and field wiring, connect a laptop running Connected Components Workbench to the Dynamix 1440 chassis via USB or Ethernet. Create or restore a project file, configure the 1440-SPD02-01RB channel parameters (sensor type, full-scale speed, trip setpoints, and alarm thresholds), download the configuration, and verify live speed readings against a known reference (tachometer or encoder). Commission alarms and trips in a controlled test condition before returning the machine to service.

Warranty Assurance

Every Allen-Bradley 1440-SPD02-01RB supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes functional verification including power-on self-test, channel continuity check, and firmware version confirmation. Units are shipped in anti-static packaging with protective foam inserts to prevent transit damage.

In the event of a confirmed defect within the warranty period, TOPNLMS provides a replacement unit or full refund at the buyer’s discretion. Our technical support team is available to assist with installation questions, configuration guidance, and compatibility verification before and after purchase. Typical response time for technical inquiries is within 1 business day.

We maintain stock of the 1440-SPD02-01RB and related Dynamix 1440 components to support urgent replacement requirements. Express shipping options are available for critical plant situations where minimizing downtime is the primary concern. All units are sourced through verified supply channels and are accompanied by documentation confirming authenticity.
