Allen-Bradley 1398-DDM-009 Replacement for ULTRA 100 Series

Product Overview

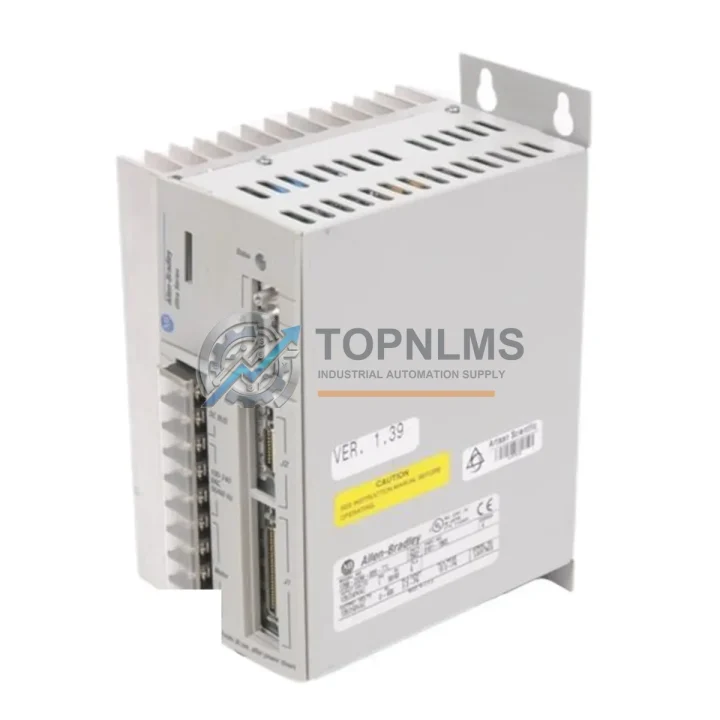

Allen-Bradley 1398-DDM-009 Replacement for ULTRA 100 Series: Seamless Transition from Legacy Servo Systems

The Allen-Bradley 1398-DDM-009 is a Digital Servo Drive from the ULTRA 100 Series, designed for precision motion control in demanding industrial automation environments. As legacy servo systems age and original components reach end-of-life, facilities running Rockwell Automation motion control architectures face increasing pressure to source reliable, drop-in replacements that preserve existing wiring infrastructure, communication configurations, and control cabinet layouts. This replacement unit for the 1398-DDM-009 is sourced, tested, and shipped to minimize your system downtime and protect your production continuity.

Whether your facility is migrating from an aging ULTRA 100 servo platform to a modernized motion control architecture, or simply replacing a failed drive in an existing installation, this unit delivers the electrical and mechanical compatibility your engineers require. The 1398-DDM-009 operates within the ULTRA 100 Series drive family, sharing the same form factor, connector pinout, and DC bus architecture as adjacent drives in the same rack — including the 1398-DDM-019 and 1398-DDM-033 variants — allowing for straightforward swap-out without panel redesign.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful servo drive replacement rarely involves the drive alone. In most ULTRA 100 Series installations, the 1398-DDM-009 operates as part of a coordinated motion control system. During retrofit or emergency replacement, engineers typically also evaluate the condition of the 1398-OEM-IOMOD I/O expansion module, which handles discrete I/O routing between the drive and the host controller. If the system uses a 1747-SN Remote I/O Scanner or a 1756-M02AE Servo Module within a ControlLogix rack, those components should be inspected for firmware compatibility before commissioning the replacement drive.

For facilities still running SLC 500 or MicroLogix-based motion sequences, the interface between the 1398-DDM-009 and the host PLC is typically managed through a 1747-CP3 programming cable or a 1761-CBL-PM02 serial cable — both of which remain compatible with this replacement unit. If your installation uses a 1398-DDM-075 or 1398-DDM-033 in adjacent axis slots within the same control cabinet, the shared DC bus configuration and grounding scheme remain unchanged, simplifying the swap-out procedure.

Sites upgrading from older motion platforms may also be running 1398-ULTRA-005 or 1398-ULTRA-010 analog servo drives. In those cases, the migration to the 1398-DDM-009 digital platform requires attention to encoder cable shielding, feedback resolution settings in ULTRAWARE, and analog reference scaling at the PLC output card — typically a 1756-OF8 or 1769-OF4 analog output module. These configuration steps are well-documented and do not require hardware changes to the control cabinet backplane or power distribution rail.

For systems that include an HMI panel — such as a 2711P-T10C4D8 PanelView Plus terminal — the drive status and fault codes surfaced through the serial interface remain consistent with the original 1398-DDM-009 parameter set, ensuring that existing HMI screen logic and alarm displays continue to function without modification.

Retrofit Guidance FAQ

Q: Can I reuse my existing motor feedback wiring?
Yes. The 1398-DDM-009 replacement uses the same 15-pin HD encoder feedback connector and pinout as the original unit. No rewiring of the motor feedback cable is required provided the cable is in good condition and shielding is intact.

Q: Do I need to re-tune the servo parameters after replacement?
In most cases, existing ULTRAWARE parameter files (.ULT) can be downloaded directly to the replacement drive via the RS-232 serial port. Verify that the firmware revision of the replacement unit is compatible with your parameter file version. Minor gain re-tuning may be required if the replacement unit has a different firmware baseline.

Q: Is the communication protocol compatible with my existing PLC program?
Yes. The 1398-DDM-009 communicates via RS-232 or RS-422 serial protocol. The replacement unit maintains full protocol compatibility. No changes to the PLC ladder logic or motion instruction blocks are required.

Q: Will the replacement unit fit in my existing control cabinet without modification?
Yes. The 1398-DDM-009 replacement shares the identical physical footprint, mounting hole pattern, and DIN rail compatibility as the original ULTRA 100 Series drive. Control cabinet panel cutouts, cable management, and adjacent component clearances remain unchanged.

Q: What if my original drive has a custom parameter configuration?
If you have an existing ULTRAWARE parameter backup file, it can be restored to the replacement unit. If no backup exists, TOPNLMS technical support can assist with baseline parameter configuration based on your motor nameplate data and application requirements.

Q: How do I verify the replacement drive before installation?
Each unit shipped by TOPNLMS undergoes pre-shipment functional testing including power-on verification, feedback signal integrity check, and communication port validation. A test report is available upon request.

Warranty Assurance

Every Allen-Bradley 1398-DDM-009 replacement unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. This warranty covers functional defects identified under normal operating conditions consistent with the original ULTRA 100 Series drive specifications.

Prior to shipment, each unit undergoes a structured pre-delivery inspection protocol: power-on functional test, encoder feedback interface verification, serial communication port check, and visual inspection for connector integrity and component condition. Units that do not pass inspection are not shipped.

In the event of a warranty claim, TOPNLMS provides replacement unit dispatch or repair support with a target response time of 1–3 business days. Return shipping coordination and technical support during the replacement process are included at no additional charge within the warranty period.

For procurement teams requiring documentation, TOPNLMS can provide a product condition report, pre-shipment test record, and warranty certificate upon request prior to or at the time of order confirmation. Orders are typically processed and dispatched within 1–3 business days from payment confirmation, with express shipping options available for urgent downtime recovery situations.

For stock availability, lead time confirmation, or technical pre-sales consultation, contact the TOPNLMS team directly.
