Allen-Bradley 1394C-SJT05-T-RL Ruggedized Servo Controller

Product Overview

Allen-Bradley 1394C-SJT05-T-RL Ruggedized Multi-Axis Servo Controller: Industrial Resilience for Harsh Environments

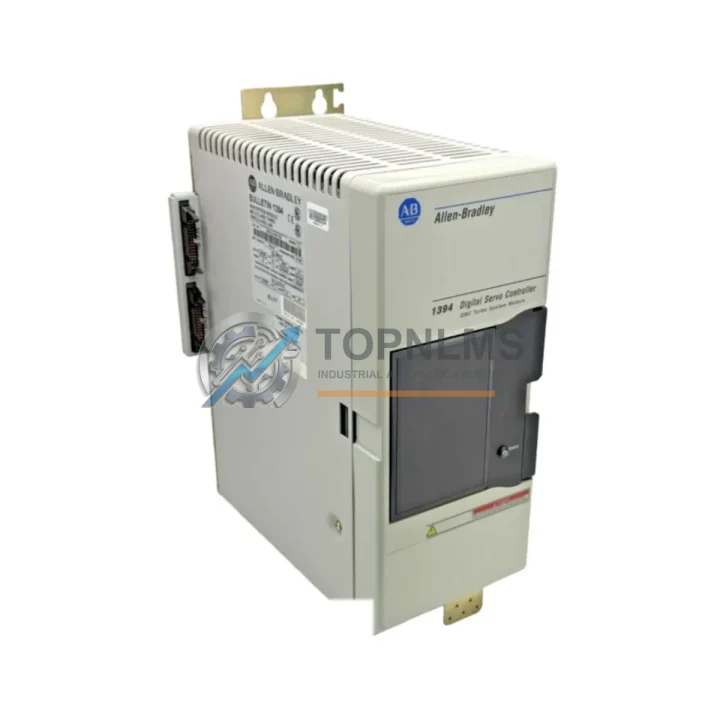

The Allen-Bradley 1394C-SJT05-T-RL is a high-performance, ruggedized multi-axis servo controller engineered for continuous, fault-tolerant operation in the most demanding industrial environments. Rated at 5kW with 4-axis coordinated motion control and native Remote I/O (RIO) communication, this unit is purpose-built for applications where downtime is not an option — from high-temperature foundry floors and dust-laden mining galleries to vibration-intensive press lines and EMI-saturated power generation facilities.

As part of Rockwell Automation’s proven 1394C Series servo drive platform, the 1394C-SJT05-T-RL delivers deterministic motion performance tightly integrated with Allen-Bradley PLC architectures. Its robust hardware design, combined with comprehensive onboard diagnostics and fault protection, makes it a preferred choice for OEM machine builders and end-user maintenance teams seeking a reliable, long-lifecycle servo solution.

Rugged Specifications Table

Comprehensive Protection Solutions

The 1394C-SJT05-T-RL does not operate in isolation — it is the motion control backbone of a broader, integrated safety and control architecture. In a typical heavy-industry control cabinet, this servo controller works in concert with Allen-Bradley 1756-L71 ControlLogix processors to deliver synchronized, high-speed motion sequences across multiple machine axes. The RIO communication bus connects seamlessly to 1771 I/O modules, enabling real-time feedback from field sensors, limit switches, and safety interlocks without introducing latency that could compromise machine safety.

For power conditioning and protection, the 1394C-SJT05-T-RL is typically paired with Allen-Bradley 1394-SR5 shared bus power supplies or compatible DC bus modules, ensuring stable DC link voltage even during rapid acceleration and deceleration cycles. Upstream, Allen-Bradley 1489 series miniature circuit breakers and 1492 terminal blocks provide branch circuit protection and clean wiring termination within the control enclosure.

Safety-critical installations often integrate Allen-Bradley GuardLogix safety controllers alongside the 1394C-SJT05-T-RL, enabling SIL 2 / PLd-rated safe torque-off (STO) and safe stop functions that comply with IEC 62061 and ISO 13849. In environments with significant electromagnetic interference — such as arc furnaces, large VFD installations, or high-frequency welding equipment — Allen-Bradley 1321 line reactors and EMC filters are installed upstream of the servo controller to suppress conducted noise and protect the drive’s sensitive control electronics.

Communication integrity is maintained through 1747-SN Remote I/O Scanner modules on the PLC side, which manage the RIO network topology and ensure deterministic data exchange between the 1394C-SJT05-T-RL and the host controller. Where legacy systems require bridging to modern EtherNet/IP networks, 1788-EN2DN DeviceNet-to-Ethernet linking devices provide transparent protocol conversion without disrupting existing RIO wiring infrastructure.

Application in Critical Infrastructure

The Allen-Bradley 1394C-SJT05-T-RL has established a strong track record across the most demanding sectors of critical industrial infrastructure:

Oil & Gas: In upstream drilling and midstream pipeline compression stations, the 1394C-SJT05-T-RL controls multi-axis pump drive systems and valve actuators that must respond precisely under fluctuating load conditions. Its robust RIO communication ensures that the host PLC maintains real-time visibility of drive status, enabling immediate fault response and safe shutdown sequences compliant with IEC 61511 functional safety requirements.

Mining & Minerals Processing: Underground and open-cut mining environments subject control equipment to extreme vibration, coal dust ingress, and wide temperature swings. Installed within sealed, climate-controlled control cabinets, the 1394C-SJT05-T-RL drives conveyor positioning systems, crusher feed controls, and hoist motion sequences with the precision and reliability that continuous production demands. Its multi-axis architecture reduces the number of discrete drive units required, simplifying cabinet layout and reducing potential failure points.

Power Generation & Utilities: In thermal power plants and hydroelectric facilities, servo-controlled valve positioning and turbine auxiliary systems require sub-millisecond response times and absolute positional accuracy. The 1394C-SJT05-T-RL’s deterministic RIO communication and high-bandwidth current loop control make it well-suited for these applications, where a positioning error of even a few degrees can have significant process consequences.

Metals & Heavy Manufacturing: Rolling mills, press lines, and continuous casting machines impose severe mechanical shock and vibration loads on control hardware. The 1394C-SJT05-T-RL’s industrial-grade construction and comprehensive onboard protection — including overcurrent, overvoltage, undervoltage, overtemperature, and encoder fault detection — ensure that the drive remains operational through the mechanical transients inherent in these processes, while its fault logging capability supports predictive maintenance programs.

Water & Wastewater Treatment: Municipal and industrial water treatment facilities rely on precise flow control and pump sequencing to maintain process efficiency and regulatory compliance. The 1394C-SJT05-T-RL’s ability to coordinate multiple pump axes from a single controller reduces system complexity and provides the redundancy and diagnostic transparency that utility operators require for 24/7 unattended operation.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is it enforced?
All Allen-Bradley 1394C-SJT05-T-RL units supplied by TOPNLMS are covered by a 12-month warranty from the date of shipment. This warranty covers manufacturing defects, component failures under normal operating conditions, and firmware-related malfunctions. In the event of a warranty claim, TOPNLMS will arrange replacement or repair at no additional cost to the buyer. Each unit is individually tested and documented prior to dispatch, and warranty records are maintained against the unit’s serial number for full traceability.

Q2: How is each unit tested and verified before shipment?
Every 1394C-SJT05-T-RL undergoes a structured pre-shipment inspection protocol at our Xiamen facility. This includes visual inspection for physical damage, power-on functional verification, communication interface testing (RIO bus handshake), and parameter integrity checks. Units that do not pass all inspection criteria are quarantined and not dispatched. A test report is available upon request for customers with incoming inspection requirements.

Q3: Is the 1394C-SJT05-T-RL compatible with my existing Allen-Bradley PLC and servo motor infrastructure?
The 1394C-SJT05-T-RL is designed for direct integration with Allen-Bradley PLC-5 and SLC 500 controllers via the Remote I/O (RIO) network, and can be interfaced to ControlLogix platforms using appropriate RIO scanner modules. It is compatible with Allen-Bradley 1326 and MPL series servo motors when matched with the correct feedback cable and motor power cable assemblies. TOPNLMS technical staff can assist with compatibility verification based on your existing system configuration — please provide your PLC model, existing drive catalog numbers, and motor specifications when enquiring.

Q4: Can TOPNLMS support long-term supply continuity for this part?
Yes. TOPNLMS maintains strategic inventory of Allen-Bradley 1394C series components, including the 1394C-SJT05-T-RL, to support customers with ongoing maintenance, spare parts programs, and emergency replacement requirements. As this series is a mature platform, we source units through verified industrial surplus and authorized distribution channels, with full documentation of provenance. Customers operating fleets of 1394C-based machines can contact us to discuss blanket purchase agreements and reserved stock arrangements to ensure supply continuity over multi-year maintenance horizons.
