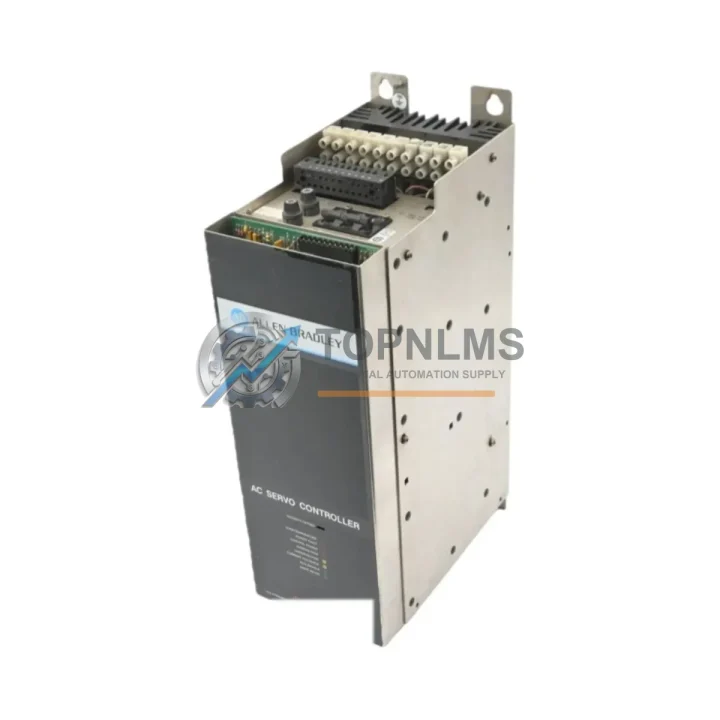

Allen-Bradley 1391B-AA45 Ruggedized AC Servo Drive Module

Product Overview

Allen-Bradley 1391B-AA45 Ruggedized AC Servo Drive Module: Industrial Resilience for Harsh Environments

The Allen-Bradley 1391B-AA45 is a high-performance AC servo drive engineered for closed-loop motion control in the most demanding industrial environments. Designed as part of Rockwell Automation’s proven 1391B Series, this module delivers precise torque, velocity, and position control across continuous production lines where failure is not an option. Whether deployed in high-temperature foundries, high-humidity coastal processing plants, dust-laden mining operations, or vibration-intensive heavy manufacturing cells, the 1391B-AA45 maintains stable, accurate servo performance without compromise.

Built to withstand electromagnetic interference (EMI) common in large-scale motor drive environments, the 1391B-AA45 integrates seamlessly into Allen-Bradley PLC architectures including the ControlLogix and SLC 500 platforms. Its closed-loop feedback design ensures that even under fluctuating load conditions — such as those encountered in metal stamping, paper mill winding, or automated assembly — the drive continuously corrects for positional error, protecting both the process and downstream equipment.

Rugged Specifications Table

Comprehensive Protection Solutions

The 1391B-AA45 does not operate in isolation — it is a critical node within a broader motion and control architecture. In a typical servo axis cabinet, this drive works in concert with the Allen-Bradley 1326AB series servo motors, which provide the mechanical output matched to the drive’s closed-loop command signals. Upstream, a ControlLogix L6x or L7x series PLC processor issues motion instructions via the SERCOS or analog motion interface, coordinating multi-axis positioning with microsecond-level synchronization.

Power quality is essential for servo drive longevity. The 1391B-AA45 benefits from upstream Allen-Bradley 1321 line reactors and 1321-3R series isolation transformers, which suppress voltage transients and harmonic distortion that would otherwise stress the drive’s internal IGBT modules. In facilities with frequent power interruptions — such as steel mills or cement plants — pairing the 1391B-AA45 with a 1606-XLP series industrial power supply for control-circuit backup ensures that the drive’s logic and feedback circuits remain powered through brief outages, preventing costly re-homing cycles.

For safety-critical applications, the 1391B-AA45 is commonly integrated alongside Allen-Bradley GuardLogix safety PLCs and 440C Guardmaster safety relays, which provide SIL 2 / PLd-rated safe torque-off (STO) functionality. This combination is mandatory in applications such as robotic welding cells, automated press lines, and hazardous-area conveyor systems where personnel access during operation must be strictly controlled. The 1791DS series distributed I/O safety modules further extend zone-level protection across large machine footprints without requiring additional safety PLCs.

Communication integrity is maintained through the 1756-EN2T EtherNet/IP communication module, which connects the servo drive’s host controller to plant-level SCADA and MES systems. In legacy installations, the 1747-SDN DeviceNet scanner module provides backward-compatible network integration, allowing the 1391B-AA45 to coexist with older Allen-Bradley SLC 500 architectures without a full system retrofit. Terminal block assemblies from the 1492-J series provide reliable field-wiring termination within the control cabinet, minimizing connection resistance and the risk of intermittent faults in high-vibration environments.

Application in Critical Infrastructure

In oil and gas upstream operations, the Allen-Bradley 1391B-AA45 drives precision pump jacks and wellhead injection systems where flow rate accuracy directly impacts production yield and equipment safety. The drive’s closed-loop velocity control prevents over-speed conditions that could damage downhole equipment, while its EMI-hardened design resists interference from variable-frequency drives operating nearby on the same power bus.

In underground mining, the 1391B-AA45 controls conveyor belt tensioning systems and ore crusher feed mechanisms. These environments subject electronics to continuous vibration, coal dust ingress, and wide temperature swings between surface and underground levels. The drive’s robust construction and compatibility with sealed cabinet enclosures make it a preferred choice for mine automation engineers seeking long mean-time-between-failure (MTBF) performance.

In power generation and grid infrastructure, the 1391B-AA45 is deployed in turbine governor control systems and automated valve actuators. Precise position control of inlet guide vanes and fuel control valves is essential for grid frequency stability. Any servo drive failure in this context can trigger turbine trip events with significant financial and safety consequences, making the availability of tested, warranted replacement units from TOPNLMS a critical procurement consideration.

In water and wastewater treatment, the drive controls dosing pump servo axes and filter press mechanisms. Chemical dosing accuracy depends on repeatable velocity control, and the 1391B-AA45’s closed-loop architecture ensures consistent chemical delivery even as pump wear changes the mechanical load profile over time.

In metallurgy and steel production, the 1391B-AA45 is found in rolling mill positioning systems, ladle transfer car drives, and continuous casting withdrawal units. These applications demand both high dynamic response and sustained thermal performance under heavy cyclic loads — characteristics that define the 1391B Series design philosophy.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is it enforced?
Every Allen-Bradley 1391B-AA45 unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. This warranty covers manufacturing defects, functional failures under normal operating conditions, and component-level faults identified during post-delivery commissioning. In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund after technical verification. Our warranty is backed by documented pre-shipment test records retained for each serial number.

Q2: How is each unit tested before shipment?
All 1391B-AA45 units undergo a multi-stage inspection protocol prior to dispatch. This includes visual inspection for physical damage, power-on functional verification, closed-loop response testing, and communication interface validation. Units that fail any stage of inspection are quarantined and not shipped. Test records are available upon request for quality-sensitive procurement processes such as those required in nuclear, defense, or pharmaceutical automation projects.

Q3: Is the 1391B-AA45 compatible with my existing Allen-Bradley system?
The 1391B-AA45 is designed for direct replacement within existing 1391B Series installations. It is compatible with Allen-Bradley 1326AB series servo motors and integrates with ControlLogix, PLC-5, and SLC 500 motion control platforms via standard analog or encoder feedback interfaces. If you are unsure about compatibility with your specific motor, feedback device, or PLC firmware version, TOPNLMS technical staff can review your system configuration prior to purchase.

Q4: Can TOPNLMS support long-term or repeat supply of the 1391B-AA45?
Yes. TOPNLMS maintains dedicated inventory of Allen-Bradley 1391B Series components to support both emergency replacement and planned maintenance programs. For facilities operating multiple servo axes on the 1391B-AA45, we offer reserved stock agreements that guarantee unit availability within agreed lead times. This is particularly valuable for critical infrastructure operators who cannot tolerate extended downtime waiting for standard distribution channels. Contact our team to discuss volume pricing, consignment stock, or annual supply contracts.
