Allen-Bradley 135232-04 Ruggedized Power Supply Board

Product Overview

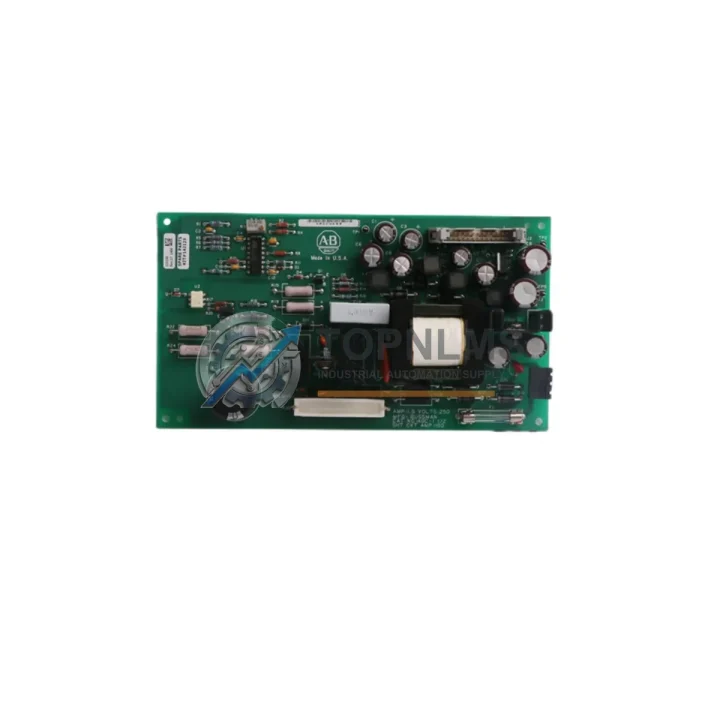

Allen-Bradley 135232-04 Ruggedized Power Supply Board: Industrial Resilience for Harsh Environments

The Allen-Bradley 135232-04 (also cross-referenced as 142129 and 135230REV09) is a factory-grade power supply board engineered for the 1336 Series AC Drive platform — one of Rockwell Automation’s most widely deployed variable frequency drive families in heavy industrial applications. Designed to deliver stable, conditioned DC power to the drive’s control and gate-firing circuits, this board is a mission-critical component in environments where power quality, thermal stress, and electromagnetic interference are constant operational realities.

In continuous production lines — whether in steel rolling mills, cement plants, petrochemical refineries, or municipal water treatment facilities — the power supply board is the heartbeat of the drive system. The 135232-04 is built to sustain reliable operation across wide ambient temperature ranges, resist vibration-induced solder fatigue, and maintain signal integrity in the presence of high-frequency EMI generated by adjacent inverter stages, motor cables, and switching power supplies. Its robust PCB construction and conformal coating (where applicable) provide a meaningful barrier against airborne particulates, humidity ingress, and corrosive atmospheres common in mining, pulp-and-paper, and offshore installations.

Within the 1336 AC Drive architecture, the 135232-04 interfaces directly with the main control board, the gate driver board, and the DC bus capacitor bank. When this board degrades — typically manifesting as erratic fault codes, undervoltage trips, or complete drive lockout — the entire drive becomes inoperable, halting the motor it controls. Rapid access to a verified replacement is therefore not a convenience but an operational necessity. TOPNLMS maintains ready stock of the 135232-04 to support emergency breakdown scenarios and planned preventive maintenance programs alike.

Rugged Specifications Table

Comprehensive Protection Solutions

The 135232-04 power supply board does not operate in isolation — it is one node in a tightly integrated drive system. In a typical 1336 PLUS or 1336 IMPACT installation, the board works in concert with the 1336-BRF Series dynamic braking module, which dissipates regenerative energy during rapid deceleration cycles in hoist and crane applications. The 1336-MOD-HA2 Human Interface Module relies on stable low-voltage rails supplied by this board to maintain parameter display and keypad responsiveness even during high-load transients.

On the control side, the 1336 Main Control Board (such as the 1336-BDB-SP2 or equivalent) depends on the 135232-04 to deliver clean, regulated voltages to its microprocessor and EEPROM circuits. Any ripple or dropout on these rails can corrupt drive parameters or trigger nuisance faults. Similarly, the 1336 Gate Driver Board — responsible for firing the IGBT or SCR power modules — requires a stable bias supply that originates from this power supply board.

For facilities running Rockwell Automation’s broader control architecture, the 1336 drive is often supervised by a 1756 ControlLogix PLC or a 1769 CompactLogix controller via DeviceNet or EtherNet/IP communication adapters such as the 1336-GM6 DeviceNet adapter module. Maintaining the integrity of the power supply board ensures that the drive remains responsive to PLC commands and continues to report accurate status data back to the control system. In distributed control architectures, a failed drive power supply can cascade into process upsets that affect upstream and downstream equipment, including 1794 FLEX I/O modules, 1492 terminal blocks, and 800F series safety push buttons wired into the same control cabinet.

For facilities that have standardized on Allen-Bradley safety systems, the 135232-04 replacement is also relevant to panels housing 440R GuardMaster safety relays and 1791DS CompactBlock Guard I/O modules, where drive availability directly impacts safety-rated stop functions and zone control logic.

Application in Critical Infrastructure

The Allen-Bradley 1336 Series AC Drive — and by extension the 135232-04 power supply board — has been deployed across some of the most demanding industrial environments on the planet. In oil and gas upstream operations, 1336 drives control submersible pump motors, compressor trains, and wellhead injection systems where unplanned downtime translates directly into lost production revenue measured in thousands of dollars per hour. The power supply board must withstand the thermal cycling caused by ambient temperature swings between cold desert nights and scorching midday heat.

In underground mining operations, drives controlling conveyor belts, ventilation fans, and ore crushers are exposed to coal dust, silica particulates, and high humidity. The 135232-04’s robust construction makes it a reliable choice for these environments, where sourcing replacement parts quickly is complicated by remote site locations. Maintaining a spare on-site — or partnering with a distributor like TOPNLMS that can ship within 24–48 hours — is standard practice for mine electrical maintenance teams.

In power generation and grid infrastructure, 1336 drives are used in cooling tower fan control, boiler feed pump regulation, and auxiliary systems at thermal and hydroelectric plants. These applications demand zero-compromise reliability; a failed drive in a cooling system can force a turbine derating or emergency shutdown. The 135232-04 is a known wear item in aging 1336 installations and is frequently specified in plant maintenance budgets as a critical spare.

Water and wastewater treatment facilities rely on 1336 drives to modulate pump speeds for energy efficiency and flow control. Municipal operators managing aging infrastructure often find that the 1336 platform remains in service well beyond its original design life, making access to quality replacement boards like the 135232-04 essential for extending asset life without full drive replacement. In metallurgical and steel processing plants, the board must endure intense electromagnetic interference from arc furnaces, induction heaters, and large transformer banks — conditions that stress power supply components far beyond typical commercial ratings.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is it enforced?
All 135232-04 units shipped by TOPNLMS carry a 12-month warranty from the date of shipment. This covers manufacturing defects, premature component failure, and functional non-conformance to the original Allen-Bradley specification. In the event of a warranty claim, TOPNLMS will arrange return logistics and provide a replacement unit or full refund at our discretion. Warranty claims are processed within 5 business days of receiving the returned item.

Q2: How is each unit tested before shipment?
Every 135232-04 board undergoes a multi-stage inspection process prior to dispatch. This includes visual inspection for physical damage, solder joint integrity checks, component-level continuity testing, and where applicable, functional power-on testing using a compatible 1336 drive test bench. Units that do not pass all inspection criteria are quarantined and not offered for sale. A test report is available upon request for critical infrastructure procurement.

Q3: Is the 135232-04 compatible with all variants of the 1336 Series drive?
The 135232-04 is specifically designed for the Allen-Bradley 1336 Series AC Drive platform. Compatibility varies by drive rating, firmware revision, and hardware revision level. Cross-references 142129 and 135230REV09 indicate revision history of the same functional board. Buyers are advised to confirm their drive’s existing board revision and power rating before ordering. TOPNLMS technical staff can assist with compatibility verification — contact us at [email protected] with your drive nameplate data.

Q4: Can TOPNLMS support long-term or repeat procurement of this part?
Yes. TOPNLMS specializes in industrial automation spare parts with a focus on long-lifecycle support for legacy and current-generation Rockwell Automation products. We maintain buffer stock of high-demand 1336 Series components and can establish blanket purchase agreements for facilities with multiple drives of the same type. For OEMs, system integrators, and MRO procurement teams managing large installed bases, we offer priority allocation, advance shipment notification, and dedicated account management.
