Allen-Bradley 1336T-MCB-SP518 Original Industrial Spare 1336 PLUS II

Product Overview

Allen-Bradley 1336T-MCB-SP518 Original Industrial Spare 1336 PLUS II Compatible: Ensuring System Stability and Uptime

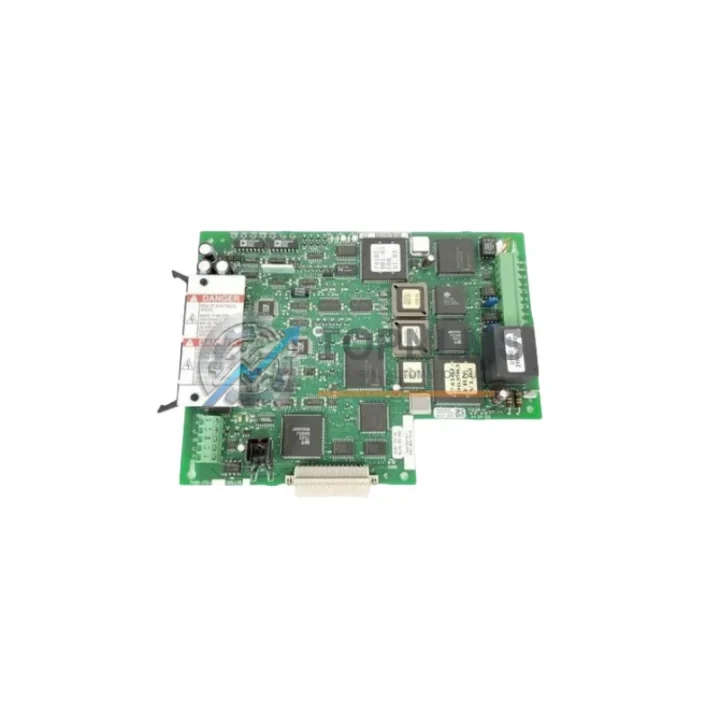

The Allen-Bradley 1336T-MCB-SP518 (Part No. 74101-774-54) is the original main control board for the 1336 PLUS II series AC variable frequency drives. In industrial environments where motor control reliability is non-negotiable, this board serves as the central intelligence of the drive — managing PWM output, fault diagnostics, parameter storage, and communication with upstream PLC or DCS systems. Whether you are responding to an unplanned drive fault, executing a scheduled overhaul, or building a strategic spare parts inventory, the 1336T-MCB-SP518 is a critical component that directly determines whether your production line resumes in hours or days.

Sourced as an original Allen-Bradley spare, this control board is fully compatible with the 1336 PLUS II drive family and is designed to drop into existing installations without firmware conflicts or parameter reconfiguration from scratch. Each unit is inspected and function-tested prior to shipment, backed by a 12-month warranty, and dispatched with full traceability documentation to support your maintenance records and audit requirements.

Critical Technical Specifications

Preventive Maintenance Strategy for 1336 PLUS II Drive Systems

A drive fault that takes a production line offline rarely involves only one component. In practice, when a 1336 PLUS II drive triggers a fault code pointing to the main control board, experienced maintenance engineers know that a thorough inspection of the surrounding electrical circuit is equally important. Replacing the 1336T-MCB-SP518 is the correct first step — but a complete preventive maintenance pass on the drive cabinet will significantly reduce the risk of a repeat fault within weeks.

Begin with the power supply module feeding the drive. An aging or under-spec power supply delivering unstable DC bus voltage is one of the most common root causes of control board stress and premature failure. While the drive is offline for the board swap, verify the bus capacitors and check the 1336 PLUS II gate driver board for signs of heat damage or component fatigue — these boards work in close coordination with the main control board and share the same thermal environment.

Next, inspect the I/O terminal block assemblies and wiring harnesses connected to the control board. Loose or corroded terminals on analog input/output circuits (speed reference, feedback signals) can introduce noise that causes erratic drive behavior and is often misdiagnosed as a board fault. If the drive communicates over DeviceNet or Remote I/O, verify the integrity of the 1336-GM1 or 1336-GM6 communication adapter seated in the drive’s option slot — a failing communication module can generate fault codes that appear to originate from the main control board.

For drives controlling critical loads such as compressors, extruders, or hoisting equipment, it is advisable to keep a 1336 PLUS II keypad / HMI interface module in stock alongside the control board. The HMI module is essential for parameter upload/download during a board replacement and is frequently overlooked in spare parts planning. Similarly, the dynamic braking resistor assembly and associated brake chopper module should be inspected during any drive overhaul — these components absorb regenerative energy and degrade over time in high-cycle applications.

At the cabinet level, check the input line reactor or EMC filter upstream of the drive. A degraded line reactor increases harmonic distortion on the DC bus and accelerates wear on control electronics. Inspect the cooling fan assembly inside the drive chassis — blocked or failing fans are a leading cause of thermal shutdowns that eventually damage the main control board. For older 1336 PLUS II installations, consider proactively replacing the electrolytic bus capacitor bank if the drive has been in service for more than seven years, regardless of whether a fault has occurred.

Finally, review the fuse modules and circuit breakers in the motor control center (MCC) feeding the drive. Nuisance trips or slow-blow fuse degradation can subject the drive to voltage transients that stress the control board. A complete preventive maintenance cycle — covering the 1336T-MCB-SP518 replacement alongside these associated components — transforms a reactive repair into a planned reliability improvement that extends the operational life of the entire drive system by years.

Strategic Replacement Solutions: Extending Legacy System Life

The Allen-Bradley 1336 PLUS II drive series has been deployed across thousands of industrial facilities worldwide and remains in active service in many plants that have no immediate plans to migrate to newer drive platforms such as the PowerFlex 400 or PowerFlex 700. For maintenance teams managing these legacy installations, sourcing original spare boards like the 1336T-MCB-SP518 is a deliberate strategy — not a stopgap.

Replacing a failed main control board with an original spare preserves the existing drive’s parameter set (once uploaded via the HMI or DriveExplorer software), maintains full compatibility with the installed communication network, and avoids the engineering cost and downtime associated with a full drive replacement. In facilities where the 1336 PLUS II drives are integrated into a larger Rockwell Automation control architecture — coordinated by a ControlLogix or SLC 500 PLC — a board-level repair is almost always faster and more cost-effective than a drive swap, which would require I/O remapping, network reconfiguration, and revalidation.

For plants managing multiple 1336 PLUS II units across different production zones, a structured spare parts strategy — holding at least one 1336T-MCB-SP518 per drive family variant on-site — reduces mean time to repair (MTTR) from days to hours. Combined with a documented parameter backup procedure and a trained technician familiar with the board replacement sequence, this approach delivers measurable improvements in overall equipment effectiveness (OEE) and reduces the financial exposure of unplanned downtime events.

Our team can assist with compatibility verification for your specific drive nameplate and firmware revision before shipment, ensuring the board you receive is the correct match for your installation. All units are tested under load conditions prior to dispatch and shipped with anti-static packaging and humidity indicators to protect the board during international transit.
