Allen-Bradley 1336T-MCB-SP1B Original Industrial Spare 1336 PLUS Compatible

Product Overview

Allen-Bradley 1336T-MCB-SP1B Original Industrial Spare 1336 PLUS Compatible: System Stability & Industrial Spare Parts Maintenance Value

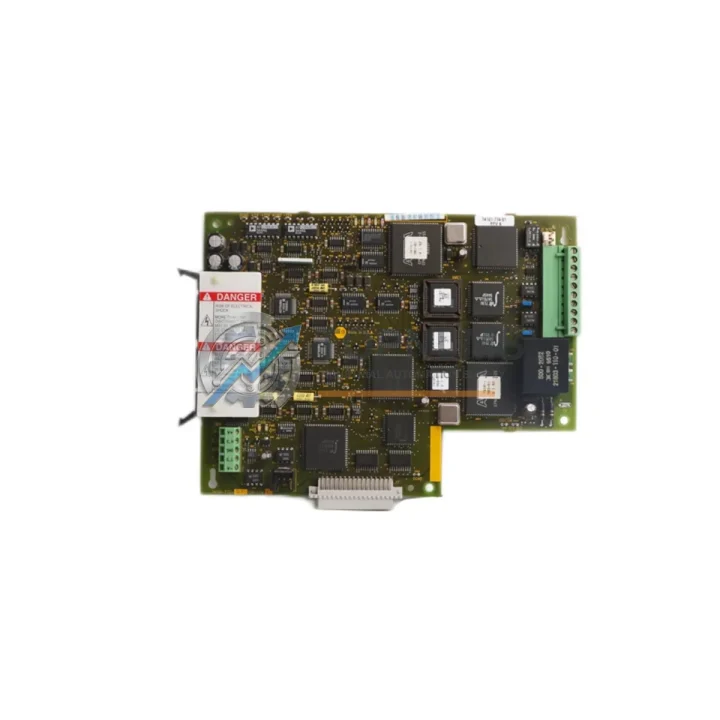

In modern manufacturing and process control environments, the reliability of your AC drive system is directly tied to production uptime and operational efficiency. The Allen-Bradley 1336T-MCB-SP1B (Part No. 74101-774-51) is the original main control board for the 1336 PLUS series AC drives — one of Rockwell Automation’s most widely deployed variable frequency drive platforms across industries including automotive, food & beverage, water treatment, material handling, and heavy manufacturing.

When a 1336 PLUS drive trips on a fault code or fails to respond to speed commands, the main control board is frequently the root cause. Sourcing a verified original replacement — rather than a counterfeit or incompatible substitute — is the single most important decision a maintenance engineer can make to restore system stability quickly and safely.

Critical Technical Specs

Preventive Maintenance Strategy

A failed main control board rarely occurs in isolation. In most field scenarios, the 1336 PLUS drive has been operating in a demanding environment — high ambient temperature, vibration, dust ingress, or voltage transients — that stresses multiple components simultaneously. A disciplined preventive maintenance approach means inspecting and, where appropriate, pre-stocking the surrounding components that share the same failure risk profile.

When replacing the 1336T-MCB-SP1B, experienced maintenance teams also inspect or schedule replacement of the 1336-MOD-L2E SCANport communication adapter, which connects the drive to DeviceNet or EtherNet/IP supervisory networks. A degraded communication module can cause intermittent faults that are often misdiagnosed as control board failures. Similarly, the 1336-PB-SP2 power board and associated DC bus capacitor bank should be evaluated — capacitor aging is a leading cause of drive instability in systems older than five years.

The 1336-BRF-SP1 brake resistor assembly and dynamic braking module are worth inspecting during the same shutdown window, particularly in hoist, crane, or conveyor applications where regenerative braking cycles are frequent. While the control cabinet is open, technicians should also verify the condition of the 24VDC control power supply feeding the drive’s logic circuits — an under-voltage condition on the control rail is a common but overlooked contributor to MCB stress.

For facilities running multiple 1336 PLUS drives in a coordinated motion system, it is standard practice to maintain a minimum buffer stock of 1336T-MCB-SP1B control boards alongside 1336-MOD-TA SCANport adapter modules, input line reactors, and output dV/dt filters. These passive components protect the drive from upstream power quality issues and downstream motor insulation stress — both of which accelerate control board degradation over time.

During scheduled shutdowns, maintenance planners should also audit the terminal block assemblies and control wiring harnesses inside the drive enclosure. Loose or corroded signal wiring at the MCB connector headers is a frequent source of nuisance faults. Replacing worn terminal blocks and re-torquing all control wiring connections takes less than 30 minutes and can prevent weeks of unplanned downtime.

For legacy 1336 PLUS installations integrated with Allen-Bradley PLC-5 or SLC 500 controllers via Remote I/O (RIO) links, it is advisable to simultaneously verify the health of the 1771-ASB remote I/O adapter and associated 1771-IFE analog input modules. These upstream controller components directly influence drive command signals, and their degradation can produce symptoms that appear to originate from the drive itself.

Strategic Replacement Solutions

The 1336 PLUS platform was introduced in the early 1990s and remains operational in thousands of facilities worldwide. Rockwell Automation has transitioned its current drive portfolio to the PowerFlex family, meaning that 1336 PLUS spare parts — including the 1336T-MCB-SP1B — are no longer manufactured on a standard production basis. This creates a strategic imperative for maintenance managers: secure verified original spare boards now, before field availability tightens further.

Unlike third-party remanufactured boards, the 1336T-MCB-SP1B supplied by TOPNLMS is an original Allen-Bradley component that retains full firmware compatibility with the existing drive chassis. There is no need to re-parameterize the drive or reconfigure the SCANport network — the replacement board accepts the existing parameter set stored in the drive’s EEPROM, enabling a direct swap with minimal commissioning time. In most cases, a trained technician can complete the board replacement and return the drive to service within two hours.

For facilities considering a longer-term migration path, the 1336T-MCB-SP1B provides a cost-effective bridge strategy: maintain the existing 1336 PLUS infrastructure at full reliability while capital planning for a future PowerFlex 755 or PowerFlex 525 upgrade. This approach avoids the capital expenditure of an immediate full drive replacement while eliminating the production risk of operating on a degraded control board.

Every unit shipped by TOPNLMS undergoes functional verification testing prior to dispatch. Units are packaged in anti-static ESD-safe materials with protective foam inserts to prevent transit damage. A 12-month warranty covers manufacturing defects and functional failures under normal operating conditions, providing procurement teams with the confidence needed to approve the purchase without extended vendor qualification cycles.

Support FAQ

Q1: Is the 1336T-MCB-SP1B compatible with all 1336 PLUS drive frame sizes?
The 1336T-MCB-SP1B is the main control board for the 1336 PLUS (1336T) series. Compatibility depends on the specific drive firmware revision and frame configuration. We recommend confirming your drive’s catalog number and series letter before ordering. Our technical team can assist with compatibility verification prior to shipment.

Q2: What does the 12-month warranty cover?
The 12-month warranty covers functional failures and manufacturing defects under normal industrial operating conditions from the date of shipment. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling. Warranty claims are processed with priority turnaround to minimize your downtime exposure.

Q3: How is the board tested before shipment?
Each 1336T-MCB-SP1B unit undergoes pre-shipment functional verification. Units that do not pass testing are not dispatched. An inspection record is available upon request for quality-assurance documentation purposes.

Q4: Should I stock multiple units as inventory spares?
Given that the 1336 PLUS platform is a legacy series with diminishing OEM parts availability, facilities operating two or more 1336 PLUS drives are strongly advised to maintain at least one spare 1336T-MCB-SP1B in inventory. The cost of a single unplanned production stoppage typically exceeds the cost of maintaining a buffer stock of control boards by a significant margin. Bulk pricing is available for multi-unit orders.
