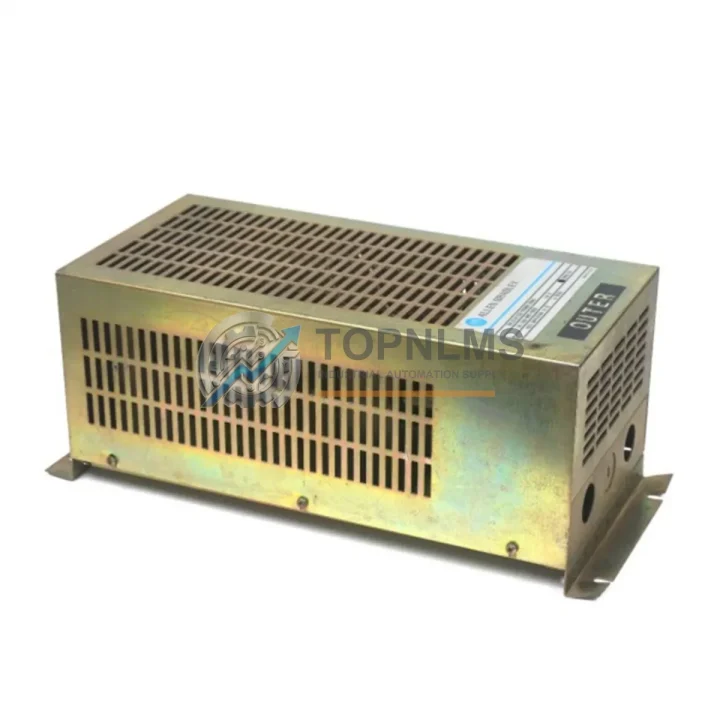

Allen-Bradley 1336-MOD-KB010 Ruggedized Dynamic Brake Module

Product Overview

Allen-Bradley 1336-MOD-KB010 Ruggedized Dynamic Brake Module: Industrial Resilience for Harsh Environments

The Allen-Bradley 1336-MOD-KB010 is a factory-engineered dynamic brake option module purpose-built for the 1336 PLUS Series AC drive platform — one of Rockwell Automation’s most widely deployed variable-frequency drive families in heavy industrial applications. Designed to absorb and dissipate regenerative energy during rapid deceleration cycles, this module delivers consistent, reliable braking performance in environments where thermal stress, vibration, electromagnetic interference, and continuous duty cycles would compromise lesser components.

In demanding industrial facilities — from petrochemical processing plants and offshore platforms to underground mining operations and steel mill rolling lines — the ability to bring a high-inertia load to a controlled stop without tripping the drive or damaging the motor is not optional. The 1336-MOD-KB010 fulfills this requirement by providing a dedicated braking resistor interface that keeps the DC bus voltage within safe operating limits, protecting both the drive and the connected motor from overvoltage faults during aggressive deceleration.

Rugged Specifications Table

Comprehensive Protection Solutions

The 1336-MOD-KB010 does not operate in isolation — it is one element of a coordinated drive protection and control architecture. In a typical 1336 PLUS installation, the dynamic brake module works alongside the 1336-MOD-L6E encoder feedback option module, which provides closed-loop speed regulation essential for precise deceleration profiling. The 1336-BRF series braking resistors are the recommended external dissipation elements that pair directly with the KB010 module, sized to match the drive’s horsepower rating and duty cycle requirements.

At the system level, the 1336 PLUS drive is typically supervised by a Allen-Bradley ControlLogix L-series PLC or a CompactLogix controller communicating over DeviceNet via the 1336-MOD-DN2 DeviceNet communication option module. This communication layer allows the PLC to issue controlled stop commands, monitor drive fault codes, and log braking events — all critical for predictive maintenance in continuous production environments.

Power quality upstream of the drive is managed by Allen-Bradley 1321-series line reactors and 1321-3R series isolation transformers, which suppress voltage spikes and harmonic distortion that could otherwise trigger nuisance trips during braking transients. On the output side, 1321-series load reactors protect motor windings from dV/dt stress during fast switching events. The entire assembly is typically housed within a Hoffman or Rittal industrial control cabinet rated to NEMA 12 or IP54, providing dust and drip protection in foundry, cement, or food-processing environments.

For safety-critical applications, the drive system is often integrated with a Allen-Bradley 440R Guardmaster safety relay or a 1791DS-IB4XOB4 safety I/O module to enforce Safe Torque Off (STO) functionality, ensuring that the dynamic braking circuit is coordinated with the machine’s overall safety architecture. Terminal blocks from the Allen-Bradley 1492-series provide reliable field wiring termination within the control cabinet, maintaining signal integrity even under high-vibration conditions.

Application in Critical Infrastructure

In oil and gas upstream operations, pump jacks and compressor drives must decelerate rapidly during emergency shutdowns without generating destructive overvoltage transients. The 1336-MOD-KB010 ensures the 1336 PLUS drive absorbs this regenerative energy safely, preventing DC bus overvoltage faults that would otherwise force an uncontrolled coast-to-stop — a condition that can damage mechanical seals and create safety hazards in classified areas.

In underground mining, conveyor belt drives and hoist systems operate under continuous heavy loads with frequent start-stop cycles. The dynamic brake module enables controlled deceleration of high-inertia loads — sometimes exceeding tens of thousands of kilograms — while maintaining precise speed control mandated by mine safety regulations. The module’s robust construction withstands the high ambient dust levels, humidity fluctuations, and mechanical vibration inherent to underground environments.

In electric power generation and grid support facilities, auxiliary drives controlling cooling fans, feedwater pumps, and fuel handling conveyors rely on dynamic braking to achieve fast, repeatable stops during load-shedding events. The 1336-MOD-KB010 supports these applications by providing a deterministic braking response that integrates cleanly with the plant’s DCS — typically a Rockwell Automation PlantPAx or third-party system — via the drive’s analog and digital I/O interface.

In water and wastewater treatment plants, centrifugal pump and blower drives must decelerate smoothly to prevent water hammer and pressure surges in pipeline systems. The dynamic brake module provides the controlled energy dissipation needed to achieve smooth, ramp-controlled stops, protecting both the mechanical infrastructure and the drive electronics from the stress of abrupt deceleration.

In metals and steel processing, rolling mill drives and coiler/uncoiler systems demand extremely precise tension control during deceleration. The 1336-MOD-KB010, combined with encoder feedback and a ControlLogix motion controller, enables the tight speed regulation required to prevent strip breaks or coil telescoping — defects that result in significant material waste and production downtime.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is a claim processed?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions from the date of shipment. If a unit fails within the warranty period, TOPNLMS will provide a replacement or full refund after technical verification. Claims are initiated by contacting [email protected] with the order number and a description of the fault. Replacement units are typically dispatched within 3–5 business days.

Q2: How is each 1336-MOD-KB010 unit tested before shipment?
Every unit undergoes a multi-point inspection protocol prior to dispatch: visual inspection for physical damage, board-level continuity testing, functional verification of the braking chopper circuit, and firmware/revision-level confirmation against the original Allen-Bradley bill of materials. Units that do not pass all inspection criteria are quarantined and not offered for sale. A test report is available upon request for critical infrastructure procurement.

Q3: Is the 1336-MOD-KB010 compatible with both 1336 PLUS and 1336 PLUS II drives?
Yes. The KB010 module is compatible with the full 1336 PLUS and 1336 PLUS II drive families across the standard horsepower range. Compatibility with specific drive catalog numbers and firmware revisions can be confirmed by our technical team prior to order. We recommend providing your drive’s full catalog number and series letter when inquiring to ensure an exact match.

Q4: Can TOPNLMS support long-term or repeat procurement of this module?
Yes. TOPNLMS maintains standing inventory of high-demand Allen-Bradley 1336 PLUS series option modules, including the 1336-MOD-KB010, to support MRO (Maintenance, Repair & Operations) programs, planned shutdowns, and emergency spare parts requirements. Volume pricing, blanket purchase orders, and scheduled delivery programs are available for industrial customers with recurring needs. Contact our team to discuss a supply agreement tailored to your facility’s maintenance schedule.
