Allen-Bradley 1336-MCB-SP1 74100-071-51 Original Spare: System Stability & Industrial Maintenance Value

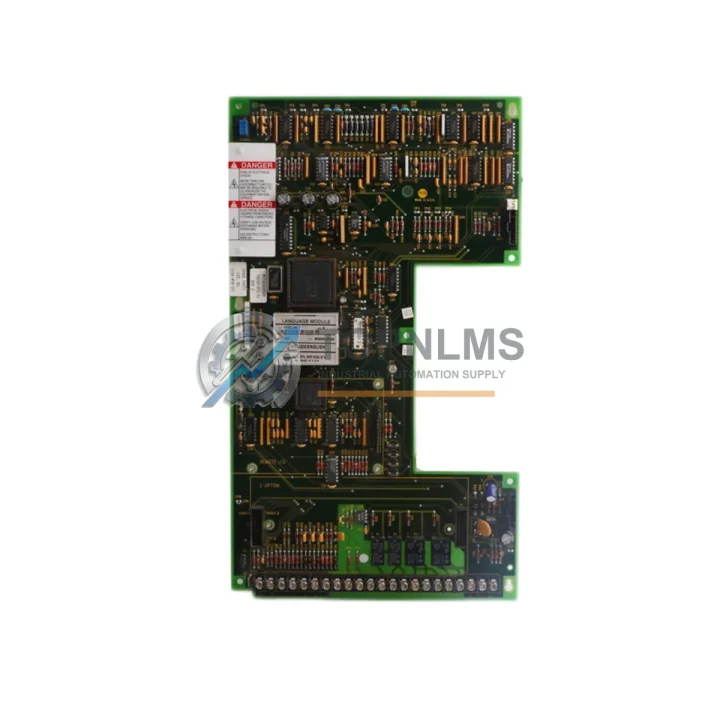

The Allen-Bradley 1336-MCB-SP1 (74100-071-51) is the original main control PC board designed for the 1336 PLUS Series AC variable frequency drive. In industrial environments where unplanned downtime translates directly into production loss and costly emergency procurement, maintaining a verified spare of this board is a cornerstone of any responsible preventive maintenance program. Whether you operate a continuous process line, a conveyor system, a pump station, or a multi-axis motion control cabinet, the 1336 PLUS drive is a proven workhorse — and the MCB-SP1 control board is its operational brain.

This board governs the core logic of the 1336 PLUS drive: speed reference processing, fault diagnostics, communication interfacing, and closed-loop feedback management. When this board fails — due to capacitor aging, thermal stress, transient voltage spikes, or firmware corruption — the entire drive goes offline. Having a pre-tested, original replacement on the shelf means your maintenance team can restore full operation within hours rather than waiting days or weeks for emergency sourcing.

Critical Technical Specs

Preventive Maintenance Strategy

Experienced maintenance engineers know that a failing 1336-MCB-SP1 rarely fails in isolation. The 1336 PLUS drive operates within a broader electrical ecosystem, and a thorough inspection during any scheduled downtime or corrective maintenance event should extend beyond the control board itself.

When replacing or inspecting the 1336-MCB-SP1, it is best practice to simultaneously evaluate the 1336-MOD-L2E gateway communication module, which handles network interfacing between the drive and your PLC or DCS system — a degraded communication module can cause intermittent faults that are often misdiagnosed as control board failures. Likewise, the 1336-PB-SP2 power interface board should be inspected for signs of thermal damage or failed capacitors, as power-side anomalies frequently stress the control board.

The 1336-BRF-SP1 brake resistor fuse assembly and associated dynamic braking resistor modules are often overlooked during routine checks but are critical to protecting the drive during deceleration cycles. In the same cabinet inspection, verify the condition of the 1336 PLUS precharge resistor assembly and the DC bus capacitor bank — capacitor degradation is one of the leading causes of MCB stress and premature failure.

For drives integrated into Rockwell Automation control architectures, also assess the health of the associated 1746 SLC 500 I/O modules or 1756 ControlLogix I/O cards that interface with the drive’s speed reference and feedback signals. A faulty analog output card sending erratic speed commands can cause repeated MCB fault trips. Similarly, inspect the 1492 terminal block assemblies and wiring connections at the drive’s control terminal strip — loose or corroded terminals are a common root cause of intermittent drive faults.

If your facility uses 1336 PLUS drives across multiple production lines, a strategic spare parts inventory should include at minimum one 1336-MCB-SP1 per drive family group, alongside a 1336-PB power board spare, a set of replacement gate driver boards, and a spare fan assembly for drives in high-ambient-temperature enclosures. Proactive inventory management of these components dramatically reduces mean time to repair (MTTR) and protects production continuity.

Strategic Replacement Solutions

The Allen-Bradley 1336 PLUS series, while a mature platform, remains widely deployed across global manufacturing facilities in industries including automotive, food and beverage, water treatment, mining, and material handling. Rockwell Automation has transitioned its current drive portfolio to the PowerFlex family, but the installed base of 1336 PLUS drives continues to operate reliably when properly maintained with original spare parts.

The 1336-MCB-SP1 (74100-071-51) is a direct OEM replacement for the original main control board. Unlike third-party remanufactured boards, this original spare maintains full compatibility with the drive’s existing firmware, parameter memory structure, and communication adapter interface — eliminating the risk of compatibility mismatches that can arise from aftermarket alternatives. For facilities managing aging 1336 PLUS installations, stocking this board extends the operational life of the drive by years, deferring costly full-drive replacements and preserving the existing control system architecture without requiring PLC reprogramming or panel rewiring.

For maintenance teams executing a planned replacement, the swap procedure is straightforward: document all drive parameters using a 1336 PLUS HIM (Human Interface Module) or DriveExplorer software before removal, replace the MCB, restore parameters, and perform a no-load test run before returning the drive to production. This process, when supported by a pre-tested spare board, can typically be completed within a single maintenance shift — minimizing production impact and eliminating the uncertainty of field repair attempts on a failed board.

Support FAQ

Q1: Is the 1336-MCB-SP1 (74100-071-51) compatible with all 1336 PLUS drive ratings?
The MCB-SP1 is the standard main control board for the 1336 PLUS series. However, compatibility can vary by drive catalog number, horsepower rating, and firmware revision. We recommend confirming your drive’s full catalog number and existing board revision before ordering. Our technical team can assist with compatibility verification prior to shipment.

Q2: How is the board tested before shipment?
Each 1336-MCB-SP1 unit undergoes functional testing prior to dispatch. We verify board power-up integrity, communication interface continuity, and key component condition. A test report is available upon request. All units ship with a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions.

Q3: What is the recommended inventory strategy for 1336 PLUS spare parts?
For facilities with three or more 1336 PLUS drives, we recommend maintaining at least one MCB-SP1 as a critical spare. For larger installations or drives in high-criticality applications (continuous process, safety-related conveyors, HVAC), a two-board buffer is advisable. Pairing the MCB spare with a power board spare and a gate driver board provides comprehensive coverage for the most common drive failure modes.

Q4: What is the lead time and shipping arrangement?
In-stock units ship within 1–3 business days. We support worldwide shipping with DHL, FedEx, and UPS express options. For urgent maintenance situations, expedited same-day dispatch is available upon request. All shipments include tracking and are packaged with ESD-protective materials appropriate for sensitive electronic assemblies.
