Allen-Bradley 1336-BDB-SP5D Ruggedized Drive Control Module for Harsh Environments

Product Overview

Allen-Bradley 1336-BDB-SP5D Ruggedized Drive Control Module for Harsh Environments

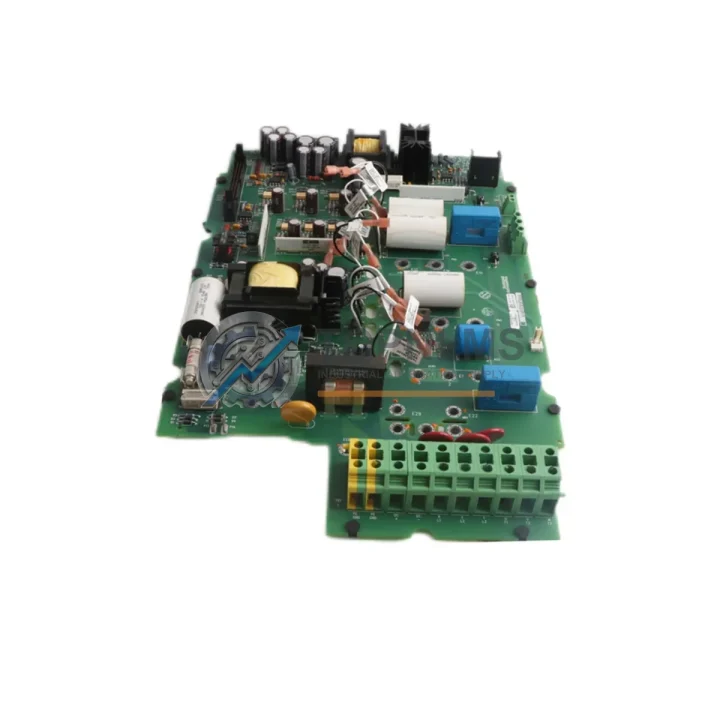

The Allen-Bradley 1336-BDB-SP5D is a factory-engineered drive control PC board designed for the 1336 PLUS series of AC variable frequency drives. Built to Rockwell Automation’s industrial-grade standards, this control board delivers consistent, reliable performance in the most demanding plant-floor environments — including high-temperature process areas, high-humidity coastal facilities, dust-laden mining operations, and electrically noisy heavy manufacturing cells. Whether deployed in a continuous production line or a safety-critical infrastructure application, the 1336-BDB-SP5D is engineered to keep your drive system running without interruption.

As the central intelligence of the 1336 PLUS drive, this board manages PWM switching logic, motor speed regulation, fault diagnostics, and communication handshaking with upstream PLC and DCS controllers. Its robust PCB construction uses conformal coating and high-grade components rated for extended industrial duty cycles, making it a proven choice for facilities that cannot afford unplanned downtime.

Rugged Specifications Table

Comprehensive Protection Solutions

The 1336-BDB-SP5D does not operate in isolation — it is the nerve center of a broader drive and control architecture. In a typical industrial control cabinet, this board interfaces directly with the 1336 PLUS power structure and communicates upstream with Allen-Bradley ControlLogix or CompactLogix PLCs via a 1756-ENBT or 1756-DNB communication module. Downstream, it governs motor output through the drive’s IGBT power section, while analog and digital I/O signals are routed through 1492-IFM interface modules or directly wired terminal blocks.

For facilities running distributed control architectures, the 1336-BDB-SP5D integrates cleanly with 1336-GM1 or 1336-GM6 communication adapter boards, enabling DeviceNet or Remote I/O connectivity to a broader DCS or SCADA network. In high-vibration environments such as mining conveyors or steel rolling mills, pairing this control board with a properly rated 1321-3R line reactor and a 1321-M02 EMC filter ensures the drive system remains stable against voltage transients and harmonic disturbances.

Safety-conscious facilities often deploy the 1336-BDB-SP5D alongside Allen-Bradley 440R safety relays and 1791DS safety I/O modules to create a layered machine safety architecture. When a fault condition is detected — whether an overcurrent trip, a thermal overload, or a communication timeout — the control board’s onboard diagnostics generate fault codes readable via a 1201-HA2 Human Interface Module (HIM), enabling maintenance teams to diagnose and resolve issues rapidly without removing the drive from service.

Power quality is equally critical. Facilities that pair the 1336 PLUS drive with a 1606-XLP industrial power supply for control circuit backup, or that use 1783-ETAP managed Ethernet switches for network segmentation, report significantly fewer nuisance trips and communication faults. The 1336-BDB-SP5D is designed to tolerate the electrical noise inherent in such mixed-signal environments, making it a dependable choice for complex, multi-drive installations.

Application in Critical Infrastructure

Across critical infrastructure sectors, the Allen-Bradley 1336-BDB-SP5D has established a long service record as a reliable drive control solution. In oil and gas upstream facilities, it governs pump and compressor drives operating continuously in Class I, Division 2 hazardous areas, where any unplanned stop carries significant safety and financial consequences. Offshore platform operators and onshore pipeline stations alike rely on the 1336 PLUS platform — and by extension, this control board — for its proven fault tolerance and ease of field replacement.

In underground mining operations, where ambient temperatures fluctuate widely and coal dust or silica particulate is ever-present, the conformal-coated PCB of the 1336-BDB-SP5D provides a critical barrier against contamination-induced short circuits. Conveyor belt drives, ventilation fan drives, and hoist systems in these environments demand components that can be swapped quickly during a maintenance window without requiring extensive reconfiguration — a requirement the 1336-BDB-SP5D meets through its plug-in board architecture and compatibility with existing 1336 PLUS drive frames.

Municipal water treatment plants and power generation facilities operating 24/7 depend on variable speed pump and fan drives to maintain process efficiency. The 1336-BDB-SP5D supports these applications by providing stable, repeatable speed control across the full motor speed range, with integrated PID feedback capability that reduces the need for external process controllers. In metallurgical plants — rolling mills, arc furnace auxiliaries, and continuous casting lines — where electromagnetic interference levels are extreme, the board’s robust design and compatibility with EMC mitigation accessories make it a preferred spare-parts choice for maintenance engineers.

Security & Quality FAQ

Q1: What warranty coverage does the 1336-BDB-SP5D carry when purchased from TOPNLMS?
All 1336-BDB-SP5D units shipped by TOPNLMS carry a 12-month warranty from the date of shipment. This covers manufacturing defects and functional failures under normal operating conditions. Our warranty process is straightforward: contact us with the fault description, and we will arrange replacement or repair without unnecessary delays.

Q2: How is each unit tested before shipment?
Every 1336-BDB-SP5D undergoes a multi-point functional inspection prior to dispatch. For surplus-new and refurbished units, this includes visual inspection for PCB damage, component-level continuity checks, and where applicable, bench-level power-on testing against known-good reference drives. Units that do not pass inspection are not shipped. A test report is available upon request for critical infrastructure orders.

Q3: Is the 1336-BDB-SP5D compatible with both 1336 PLUS and 1336 PLUS II drives?
The 1336-BDB-SP5D is primarily specified for the 1336 PLUS series. Compatibility with 1336 PLUS II frames depends on the specific drive catalog number, firmware revision, and frame size. We strongly recommend providing your complete drive catalog number when placing an inquiry so our technical team can confirm compatibility before shipment. Cross-referencing with Rockwell Automation publication 1336 PLUS-5.0 is also advised.

Q4: Can TOPNLMS support long-term or repeat supply of this part?
Yes. TOPNLMS maintains dedicated stock of Allen-Bradley 1336 series spare parts to support facilities with ongoing maintenance programs. We can accommodate blanket purchase orders, scheduled releases, and emergency same-day dispatch for critical breakdowns. For OEM integrators and MRO procurement teams managing multi-site operations, we offer volume pricing and dedicated account support. Contact us at [email protected] or +86 18359293191 to discuss your supply requirements.
