Allen-Bradley 1336-BDB-SP29C Original Industrial Spare 1336

Product Overview

Allen-Bradley 1336-BDB-SP29C Original Industrial Spare 1336: System Stability & Industrial Spare Parts Maintenance Value

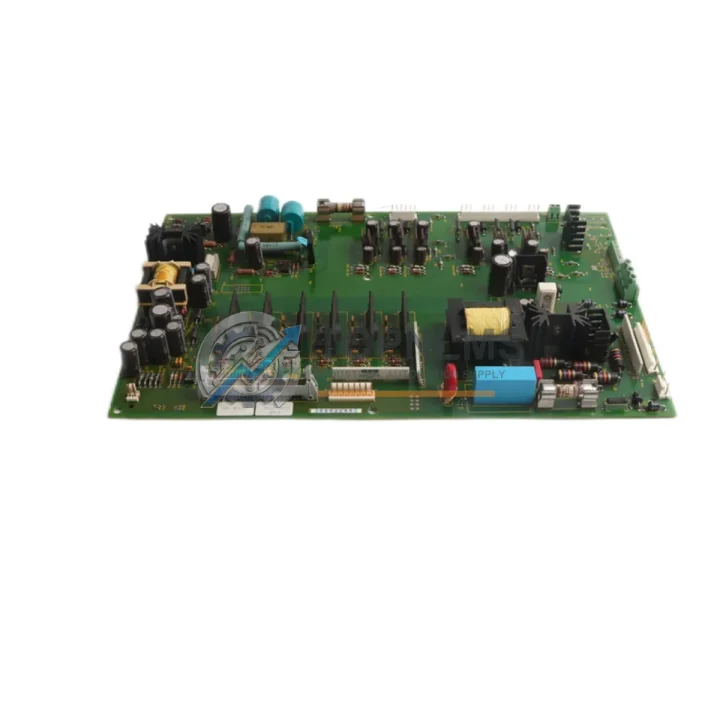

The Allen-Bradley 1336-BDB-SP29C (Part No. 74101-169-53) is an original gate drive PC board engineered for the 1336 Series AC variable frequency drive platform — one of Rockwell Automation’s most widely deployed drive families in heavy industrial environments. Rated at 460VAC / 75HP, this board governs the IGBT gate firing sequence that directly controls motor torque, speed ramp, and regenerative braking behavior. When this board fails or degrades, the entire drive becomes inoperable, resulting in unplanned downtime that can cascade across production lines, conveyor systems, pump stations, and compressor banks.

Sourcing an original, tested replacement — rather than a refurbished or counterfeit substitute — is the single most effective way to restore drive performance to factory specification and protect the surrounding electrical infrastructure from secondary damage caused by mis-fired gate signals.

Critical Technical Specs

Preventive Maintenance Strategy

In any facility running Allen-Bradley 1336 Series drives, the gate drive board is rarely the only component under stress. A comprehensive preventive maintenance (PM) program for a 1336-based motor control cabinet should treat the 1336-BDB-SP29C as part of a broader inspection and spare-parts strategy — not an isolated line item.

During a scheduled shutdown or corrective maintenance visit, technicians should simultaneously inspect the 1336-MOD-L2E communication module for firmware integrity and network faults, as communication dropouts often precede or accompany gate drive anomalies. The 1336-PB-SP2 power board should be checked for capacitor bulge, discoloration, or DC bus voltage irregularities — a failing power board can stress the gate drive board and cause premature failure. Thermal management is equally critical: the 1336-FAN-SP1 cooling fan assembly should be tested for airflow and bearing noise, since overheating is the leading cause of IGBT and gate drive board degradation in enclosed cabinets.

On the input side, inspect the 1336-BRF-SP1 EMC line filter for signs of insulation breakdown or harmonic distortion that could introduce voltage spikes into the drive’s control circuitry. The 1321-3R75-B line reactor (or equivalent series reactor) should be verified for inductance continuity and thermal discoloration. For drives controlling critical pump or compressor loads, the 1336-GM-SP1 gate module and associated IGBT stack should be tested with a gate driver tester before the replacement board is installed, to confirm the fault is isolated to the PC board and not the power semiconductors.

At the cabinet level, terminal blocks, DIN rail-mounted 1492-J fuse holders, and 700-series relay modules should be inspected for contact oxidation and loose terminations — intermittent connections at these points can generate false fault codes that are misdiagnosed as gate drive failures. If the drive communicates over DeviceNet or EtherNet/IP, the 1336-GM-SP2 network interface card should be re-seated and tested. Finally, for aging 1336 installations approaching end-of-life, it is prudent to stock a 1336-L10 operator interface module alongside the gate drive board, as HMI panel failures often occur concurrently with drive board degradation in high-cycle environments.

Stocking these components together — rather than ordering reactively after a fault — reduces mean time to repair (MTTR) from days to hours and eliminates the risk of extended downtime caused by parts lead times.

Strategic Replacement Solutions

The Allen-Bradley 1336 Series was introduced in the early 1990s and remains operational in thousands of facilities worldwide. Rockwell Automation has transitioned its current drive portfolio to the PowerFlex family, meaning that 1336-BDB-SP29C and related 1336 Series spare parts are no longer manufactured on a standard production basis. This creates a critical supply-chain risk for maintenance teams that have not pre-positioned replacement boards.

The strategic value of sourcing an original 1336-BDB-SP29C gate drive board lies in its ability to extend the operational life of an existing 1336 drive installation without requiring a full drive replacement or PLC/DCS reprogramming. A direct board swap restores the drive to OEM specification in under two hours for a trained technician — compared to the weeks or months required to engineer, procure, install, and commission a PowerFlex 755 or equivalent replacement drive with updated parameter mapping and safety validation.

For facilities managing multiple 1336 drives across different horsepower ratings, a tiered spare-parts strategy is recommended: maintain at least one gate drive board per drive frame size, one power board per voltage class, and one communication module per network protocol in use. This approach ensures that any single-point failure can be resolved within a single maintenance shift, preserving production continuity and protecting the capital investment already made in the existing drive infrastructure.

Original boards also eliminate the compatibility risks associated with third-party or remanufactured alternatives, which may use substitute gate driver ICs with different propagation delays — a mismatch that can cause IGBT shoot-through, nuisance tripping, or reduced drive efficiency even when the drive appears to operate normally.

Support FAQ

Q1: Is the 1336-BDB-SP29C compatible with all 1336 Series drive variants?
The 1336-BDB-SP29C is specifically rated for 460VAC / 75HP applications within the 1336 PLUS, 1336 PLUS II, 1336 IMPACT, and 1336 FORCE drive families. Compatibility depends on the drive’s frame size and firmware revision. Always cross-reference the drive’s catalog number and internal part number (74101-169-53) against your drive’s documentation before installation. Contact us with your drive’s full nameplate data if you require compatibility confirmation.

Q2: What testing is performed before shipment?
Every 1336-BDB-SP29C unit undergoes functional verification prior to dispatch, including gate signal output testing and visual inspection for component-level defects. Units are shipped in anti-static packaging with protective foam inserts. A 12-month quality warranty covers manufacturing defects and functional failures under normal operating conditions from the date of receipt.

Q3: How should I manage spare parts inventory for aging 1336 Series installations?
For facilities with three or more 1336 drives in the same voltage/horsepower class, we recommend maintaining a minimum of one gate drive board and one power board as on-site cold spares. For critical production lines where downtime cost exceeds USD 10,000 per hour, a hot-spare strategy — with a fully wired spare drive in the cabinet — is advisable. We can assist with multi-unit procurement planning and volume pricing for spare-parts kits.

Q4: Can this board be installed by in-house maintenance staff, or does it require a Rockwell-certified technician?
Board replacement is a standard field maintenance procedure for technicians familiar with AC drive servicing. The 1336-BDB-SP29C mounts directly to the existing drive chassis using OEM connectors — no soldering or firmware modification is required. However, all work must be performed with the drive fully de-energized and DC bus discharged (minimum 5-minute wait after power-off). We recommend consulting the 1336 PLUS User Manual (Publication 1336 PLUS-5.0) and following Rockwell’s lockout/tagout procedures. If in doubt, engage a qualified drive service engineer.
