Allen-Bradley 119524 Original Industrial Spare PLC-5 Compatible

Product Overview

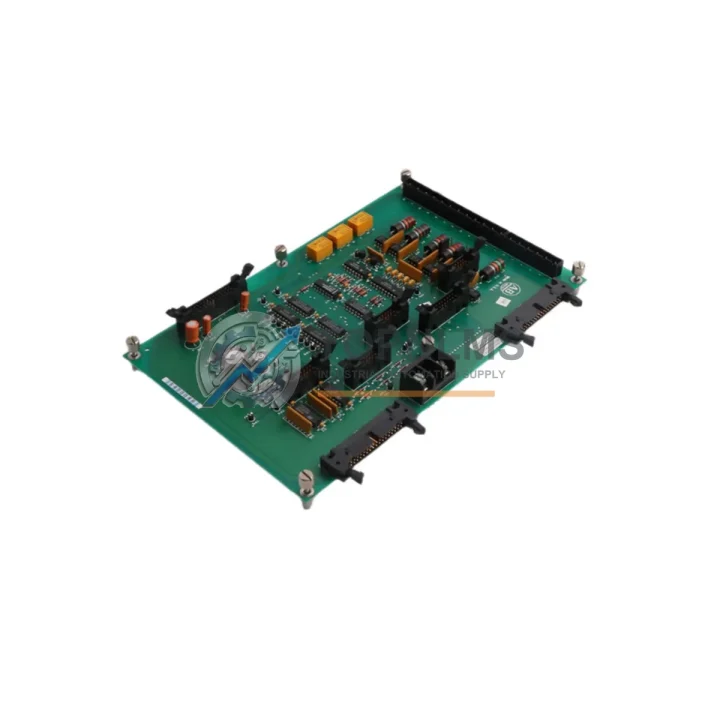

Allen-Bradley 119524 119522 129708-01 Original Industrial Spare PLC-5 Compatible: System Stability & Industrial Spare Parts Maintenance Value

In modern manufacturing and process control environments, the reliability of legacy PLC systems is not a luxury — it is a production imperative. The Allen-Bradley 119524 / 119522 / 129708-01 PLC Interface Board is a critical backplane interface component within the Allen-Bradley PLC-5 and 1771 series control architecture. Sourced as an original spare, this board ensures seamless compatibility with existing control cabinets, eliminating the risk of signal mismatch, firmware incompatibility, or mechanical fitment issues that commonly arise with non-original substitutes.

For maintenance engineers managing aging automation infrastructure, securing a verified original replacement for the 119524 / 129708-01 interface board is one of the highest-value procurement decisions available. This component sits at the heart of the backplane communication pathway, coordinating I/O data exchange between the processor module and field-side I/O racks. A failure at this level can cascade into full system shutdown, making proactive spare inventory essential for any facility running Allen-Bradley PLC-5 or 1771-series hardware.

Critical Technical Specs

Preventive Maintenance Strategy

When scheduling a planned shutdown or responding to an unplanned fault on a PLC-5 or 1771-series system, the interface board is rarely the only component that warrants attention. Experienced maintenance teams treat a backplane card replacement as an opportunity to audit the entire control cabinet for latent wear and marginal components — a practice that consistently reduces repeat call-outs and unplanned downtime events.

During the same maintenance window, engineers should inspect the 1771-P4S or 1771-P7 power supply module that feeds the I/O chassis. A degraded power supply is a leading cause of intermittent backplane communication errors that are frequently misdiagnosed as board failures. Alongside the power supply, the 1771-ASB remote I/O adapter module should be checked for connector oxidation and firmware currency, as it directly interfaces with the backplane card being replaced.

Field-side wiring integrity is equally important. 1771-series terminal assemblies and wiring arms — such as the 1771-WN or 1771-WB — should be inspected for loose terminations and insulation degradation, particularly in high-vibration or high-temperature environments. If the system includes analog I/O, the 1771-IFE or 1771-OFE analog I/O modules should be calibrated and their signal isolation verified. A failing signal isolator can introduce noise that stresses the interface board’s communication bus and accelerates wear on adjacent components.

For facilities running mixed PLC-5 and ControlLogix architectures, the 1756-DHRIO or 1756-DHRP Data Highway Plus bridge module is a common integration point that should be included in any comprehensive inspection cycle. Communication faults at the DH+ layer are frequently traced back to degraded backplane interfaces on the legacy side of the bridge, making the 119524 board a natural companion item in any DH+ fault investigation.

Maintenance planners should also consider stocking the 1771-SDN DeviceNet Scanner module and relevant 1492-series fuse terminal blocks as part of the same procurement order. Fuse modules in aging cabinets are often overlooked until a nuisance trip occurs, and having them on the shelf alongside the interface board eliminates a second emergency procurement cycle. Similarly, 1771-series processor memory modules and battery backup units should be inventoried, as memory loss during a board swap can extend downtime significantly if a replacement memory module is not immediately available.

Finally, if the control cabinet includes an HMI panel — such as a PanelView 550 or PanelView 900 — the DH+ or DH-485 communication cable connecting the HMI to the PLC-5 processor should be tested for continuity and shielding integrity. A compromised communication cable can cause the new interface board to appear faulty during commissioning, leading to unnecessary re-work and extended downtime exposure.

Strategic Replacement Solutions

The Allen-Bradley 119524 / 119522 / 129708-01 interface board addresses one of the most persistent challenges in industrial maintenance: keeping legacy PLC-5 and 1771-series systems operational without committing to a full platform migration. A complete migration to a ControlLogix or CompactLogix architecture involves significant engineering, programming, and commissioning costs — often measured in weeks of downtime and six-figure project budgets. By contrast, sourcing an original replacement backplane card restores full system functionality within hours of installation, preserving existing ladder logic, I/O mapping, and safety documentation without modification.

Original spare parts are the preferred choice over third-party alternatives for this component category because the backplane interface board must meet precise electrical timing and bus arbitration specifications. Non-original boards may pass basic continuity tests but fail under production load conditions, particularly in high-scan-rate applications or systems with large I/O counts. Using an original Allen-Bradley board eliminates this risk entirely and preserves the system’s existing certification and safety documentation.

For facilities managing multiple PLC-5 or 1771-series installations across different production lines or plant areas, a strategic approach is to maintain at least one 119524 / 129708-01 board per chassis type in the on-site spare parts inventory. This approach, combined with a documented replacement procedure, reduces mean time to repair (MTTR) from days to hours and protects production throughput during unplanned fault events. The procurement cost of a single spare board is typically recovered within the first hour of avoided downtime.

All units supplied by TOPNLMS are tested prior to shipment, packaged with anti-static protection, and covered by a 12-month warranty. Fast international logistics ensure that emergency orders can be fulfilled and delivered to most industrial regions within 3–7 business days, supporting both planned MRO procurement and urgent breakdown response.

Support FAQ

Q1: Is the 119524 / 129708-01 board compatible with all 1771-series I/O chassis?
The 119524 / 119522 / 129708-01 interface board is designed for use within the Allen-Bradley PLC-5 and 1771-series architecture. Compatibility with a specific chassis slot configuration should be verified against your system’s existing rack and processor documentation. Our technical team can assist with compatibility verification prior to order confirmation.

Q2: How is the board tested before shipment?
Each unit undergoes functional testing covering backplane bus communication, connector integrity, and electrical continuity before packaging. Test records are available upon request. Units are shipped in anti-static packaging with physical protection to prevent transit damage.

Q3: What does the 12-month warranty cover?
The warranty covers manufacturing defects and functional failures under normal operating conditions for 12 months from the date of shipment. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling. Warranty claims are processed with priority turnaround to minimize your downtime exposure.

Q4: Can I order multiple units for spare inventory, and are volume pricing options available?
Yes. TOPNLMS supports bulk procurement for MRO and spare parts inventory programs. Volume pricing is available for orders of 2 or more units. Contact our sales team directly to discuss quantity pricing, lead times, and consolidated shipping options for multi-SKU orders.
