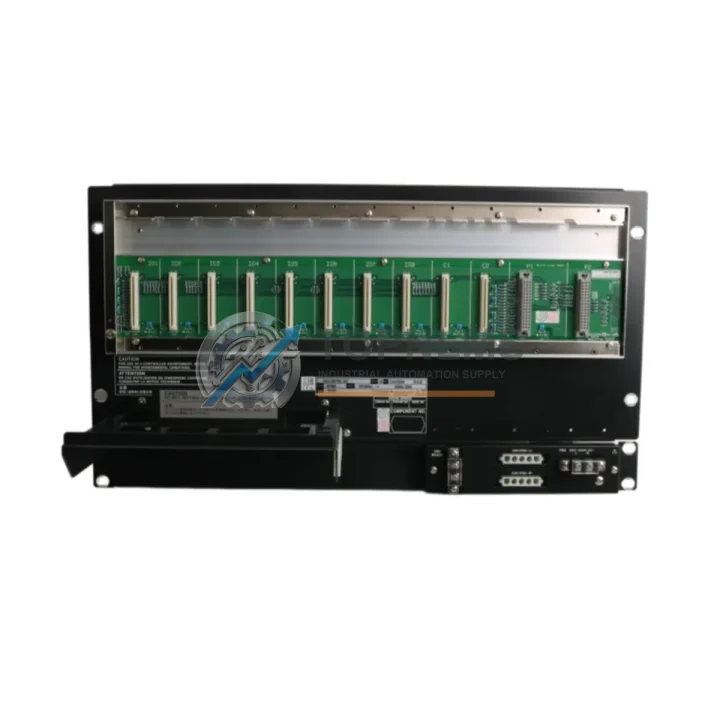

Yokogawa AFV30D-A41262 Original Industrial Spare CENTUM VP Compatible

Product Overview

Yokogawa AFV30D-A41262 Original Industrial Spare CENTUM VP Compatible: System Stability and Industrial Spare Maintenance Value

The Yokogawa AFV30D-A41262 is a Duplexed Field Control Unit (FCU) engineered for the CENTUM VP Distributed Control System — one of the most widely deployed DCS platforms across refining, petrochemical, power generation, and large-scale process manufacturing. As a duplexed controller, the AFV30D-A41262 delivers redundant processing capability, ensuring that a single hardware failure does not interrupt continuous process control. For maintenance engineers and procurement teams managing aging CENTUM VP installations, securing a verified original spare of this module is a foundational step in any serious plant reliability strategy.

At TOPNLMS, every AFV30D-A41262 unit is sourced as an original Yokogawa component, individually inspected, and function-tested prior to dispatch. We maintain dedicated stock to support unplanned outages and scheduled turnaround maintenance windows where OEM lead times are unacceptable. Backed by a 12-month warranty covering manufacturing defects and functional performance, this spare is procurement-ready for both emergency replacement and planned inventory replenishment.

Critical Technical Specs

Preventive Maintenance Strategy

The AFV30D-A41262 FCU sits at the heart of the CENTUM VP field control station, but its reliable operation depends on the health of every component sharing the same cabinet and control loop. A disciplined preventive maintenance program should treat an FCU replacement as a trigger for a broader cabinet inspection — not an isolated swap.

When servicing or replacing the AFV30D-A41262, maintenance teams should simultaneously inspect the CENTUM VP power supply modules — specifically the PW481 and PW482 series — that feed the FCU and I/O bus. Power supply degradation is a leading cause of intermittent FCU faults and is frequently overlooked until a hard failure occurs. Alongside the power supply, the Vnet/IP communication modules connecting the FCU to the operator station should be checked for connector corrosion and firmware currency.

The I/O subsystem deserves equal attention. Analog input modules such as the AAI141-S and analog output modules like the AAB841-S are common companions to the AFV30D-A41262 in process control loops. Digital input/output modules — including the ADV151-P and ADI141-P — should be inspected for contact wear and signal integrity, particularly in high-cycle switching applications. Maintaining a buffer stock of these I/O modules alongside the FCU spare significantly reduces mean time to repair (MTTR) during an unplanned outage.

Terminal blocks and field wiring termination assemblies within the control station are another maintenance priority. Loose or corroded terminals on CENTUM VP TB-series terminal boards can introduce signal noise that mimics FCU faults, leading to misdiagnosis and unnecessary module replacement. A torque check and visual inspection of all terminal connections during the FCU service window is a low-cost, high-value step.

For plants running extended CENTUM VP installations, the FCU battery backup module for memory retention should be verified and replaced on schedule — typically every 3 to 5 years depending on ambient temperature. Failure to replace the backup battery can result in loss of FCU configuration data following a power interruption, turning a routine restart into a multi-hour reconfiguration event. Additionally, if the plant uses CENTUM VP HIS (Human Interface Stations) running R5 or R6 software, ensure that the AFV30D-A41262 firmware version is compatible with the current software revision. Firmware mismatches are a known source of download errors and communication timeouts during post-replacement commissioning.

A complete cabinet inspection checklist for the AFV30D-A41262 service window should include: FCU module seating and latch integrity, power supply output voltage verification, Vnet/IP cable and connector condition, I/O module status LEDs and channel diagnostics, terminal board torque check, battery backup expiry date, and HIS-to-FCU firmware version alignment. Treating this as a system-level event — rather than a single-module swap — is the difference between a 2-hour maintenance window and a 12-hour unplanned outage.

Strategic Replacement Solutions

The AFV30D-A41262 is a mature CENTUM VP component. Yokogawa’s product lifecycle policy means that direct OEM procurement of this specific model may involve extended lead times, minimum order quantities, or end-of-life notifications for older revision codes. For plants that cannot afford a multi-week wait during an unplanned shutdown, maintaining an independently sourced spare — verified against the original specification — is the most effective risk mitigation strategy available.

TOPNLMS stocks the AFV30D-A41262 as a direct form-fit-function replacement for the installed unit. Because the module uses the standard CENTUM VP mechanical and electrical interface, replacement requires no hardware modification to the field control station. The duplexed architecture of the AFV30D means that in a healthy redundant system, the standby FCU can be hot-swapped without process interruption — a critical advantage in continuous-process environments where any downtime carries significant production cost.

For plants managing the transition from older CENTUM CS 3000 installations to CENTUM VP, the AFV30D-A41262 also plays a role in migration planning. Understanding the FCU’s role in the new architecture — and stocking the correct spare — prevents the common scenario where a migration project stalls due to an unavailable controller module. Procurement teams should treat the AFV30D-A41262 as a long-cycle spare with a recommended on-hand quantity of at least one unit per installed field control station. Pairing this spare with a documented spare parts register that cross-references installed FCU serial numbers, firmware revisions, and last-service dates creates a procurement baseline that supports both reactive and predictive maintenance strategies.

Support FAQ

Q1: Is this AFV30D-A41262 an original Yokogawa component or a compatible replacement?
This is an original Yokogawa AFV30D-A41262 unit. TOPNLMS sources from verified supply channels and does not sell counterfeit, refurbished-as-new, or third-party compatible substitutes. Each unit is individually inspected and function-tested before shipment.

Q2: What does the 12-month warranty cover, and what is excluded?
The 12-month warranty covers manufacturing defects and functional performance failures under normal operating conditions consistent with Yokogawa’s published specifications for the CENTUM VP platform. It does not cover damage resulting from incorrect installation, overvoltage, physical impact, or use outside the specified environmental range (0°C–55°C operating, 5–95% RH non-condensing).

Q3: How do I verify compatibility with my existing CENTUM VP system before ordering?
The AFV30D-A41262 is compatible with CENTUM VP field control stations using the standard Vnet/IP architecture. To confirm compatibility with your specific system revision, provide your existing FCU model number, CENTUM VP software version (R4/R5/R6), and field control station type when contacting us. Our technical team will confirm fit before you commit to the order.

Q4: What is the typical lead time, how is the unit shipped, and what documentation is included?
In-stock units are dispatched within 1–3 business days of order confirmation. International shipments are made via DHL, FedEx, or UPS with full tracking. Export documentation — including commercial invoice, packing list, and certificate of origin (Japan) — is provided as standard. Expedited shipping is available on request. Each unit ships in anti-static protective packaging appropriate for sensitive electronic modules.
