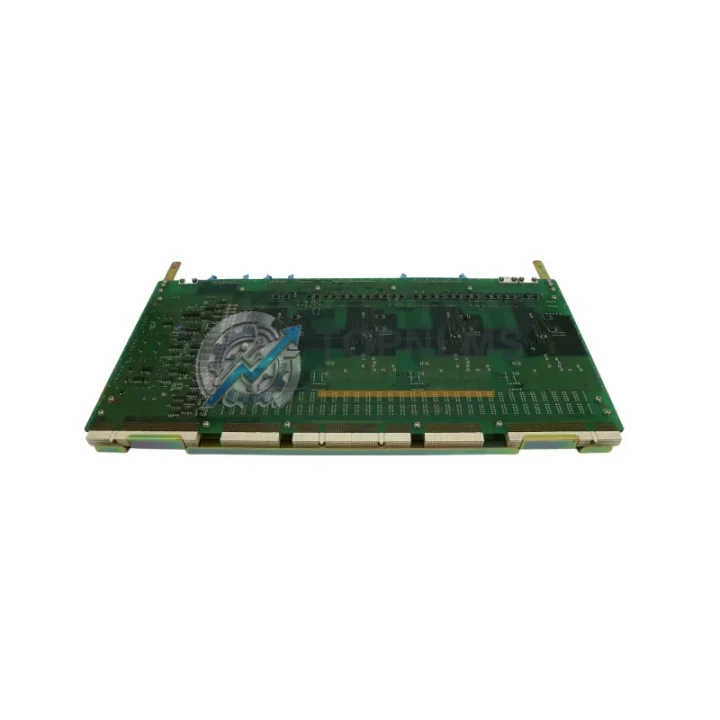

ADVANTEST BGQ-023036 PH566-A AFG/AFD Display Controller PCB

Product Overview

ADVANTEST BGQ-023036 PH566-A AFG/AFD Display Controller PCB — Industrial Spare for System Stability

The ADVANTEST BGQ-023036 PH566-A is an original display controller PCB assembly designed for the AFG and AFD series semiconductor automatic test equipment (ATE) platforms. Carrying the full board designation AFG/AFD PC BGQ-023036 PH566-A, 33CM KR33 OM80 RL 8.4, this board governs the 8.4-inch operator display interface — the primary human-machine interaction layer for test program execution, alarm acknowledgment, and real-time system diagnostics. In high-throughput semiconductor fabrication and back-end test environments, a failed display controller does not merely inconvenience operators; it halts production, invalidates in-process test data, and triggers costly unplanned downtime. Sourcing a verified original spare in advance is the single most effective strategy for protecting test cell uptime.

TOPNLMS maintains ready stock of the BGQ-023036 PH566-A, fully inspected and function-verified prior to dispatch. Each unit ships with a 12-month quality warranty, traceable inspection records, and ESD-safe packaging to preserve board integrity during international transit. Whether you are managing a single AFG tester or a multi-cell AFD production floor, this board is the correct drop-in replacement — no firmware modification, no mechanical rework, no recalibration of the display subsystem required.

Critical Technical Specs Table

Preventive Maintenance Strategy

A disciplined preventive maintenance program for ADVANTEST AFG and AFD test systems extends well beyond replacing a single board. The BGQ-023036 PH566-A display controller sits at the intersection of the system’s power distribution, backplane communication, and operator interface layers — meaning its health is directly influenced by the condition of surrounding assemblies.

During any scheduled maintenance window or corrective replacement of the BGQ-023036, maintenance engineers should simultaneously inspect the ADVANTEST AFG/AFD main CPU board and system backplane assembly for oxidized edge connectors, cracked solder joints, or capacitor bulge — conditions that generate intermittent display errors often misdiagnosed as display controller failure. The DC power supply module feeding the display subsystem should be load-tested; a sagging +5 V or +12 V rail is a common root cause of premature PCB failure in this series.

The AFG/AFD keyboard and touchpad interface assembly shares the same operator console harness as the display controller. If the BGQ-023036 has failed due to connector wear or ESD ingress, the keyboard interface PCB should be inspected in the same session to avoid a repeat call-out. Similarly, the system I/O interface board — responsible for routing test signals between the handler, DUT board, and test head — should be verified for continuity and connector seating integrity.

For facilities running multiple AFG or AFD cells, maintaining a minimum buffer stock of the BGQ-023036 PH566-A display controller, one spare AFG/AFD power supply board, and one spare system communication interface card is a widely adopted strategy in semiconductor back-end operations. This three-board kit covers the three most common single-point failure modes that result in full test cell shutdown. The handler interface cable assembly and test head signal harness should also be part of the annual inspection checklist — cable fatigue and connector fretting are leading causes of intermittent faults that consume disproportionate diagnostic time.

Where the AFG or AFD system interfaces with a factory MES or SPC system via RS-232 or GPIB, the GPIB interface board and associated serial communication module should be included in the spare parts plan. Communication dropouts between the tester and the host system can corrupt yield data and trigger false alarms, compounding the operational impact of any hardware fault.

Strategic Replacement Solutions

The ADVANTEST AFG and AFD platforms have been deployed in semiconductor test operations globally since the 1990s and remain in active production use at facilities that have optimized their test programs around these platforms. OEM support for legacy boards such as the BGQ-023036 PH566-A has been progressively reduced, making third-party original spare sourcing the primary — and often only — viable path for maintaining these systems beyond their nominal service life.

TOPNLMS specializes in sourcing, inspecting, and supplying original ADVANTEST spare boards for exactly this scenario. The BGQ-023036 PH566-A supplied by TOPNLMS is not a counterfeit, not a refurbished reject, and not a functional equivalent from an alternative manufacturer. It is an original ADVANTEST-manufactured board, pulled from decommissioned systems or sourced through authorized surplus channels, inspected to OEM-equivalent standards, and warranted for 12 months from the date of shipment.

For facilities considering a phased migration from AFG to AFD or from AFD to a newer ADVANTEST platform, maintaining a working spare of the BGQ-023036 PH566-A provides a critical bridge: it keeps the legacy system operational during the transition period, protecting test program investment and avoiding the capital expenditure of an emergency platform upgrade driven by a single board failure. The cost of one BGQ-023036 spare is a fraction of one day of unplanned test cell downtime in a high-volume semiconductor operation.

Replacement is straightforward: power down the test system following ADVANTEST lockout/tagout procedures, discharge the display subsystem capacitors, disconnect the display harness and backplane connector, remove the failed board, seat the replacement BGQ-023036 PH566-A, reconnect all harnesses, and restore power. Display initialization and system self-test typically complete within the standard AFG/AFD boot sequence — no additional calibration steps are required for the display controller replacement.

Support FAQ

Q1: What does the 12-month warranty cover for the BGQ-023036 PH566-A?
The warranty covers functional failure and manufacturing defects under normal operating conditions. If the board fails to perform its display controller function within 12 months of the shipment date, TOPNLMS will provide a replacement unit or full refund. The warranty does not cover damage resulting from incorrect installation, ESD mishandling, or operation outside the specified voltage range.

Q2: How is the board tested before shipment?
Every BGQ-023036 PH566-A unit undergoes visual inspection for physical damage, solder joint integrity, and component condition, followed by functional power-on verification. Units that do not pass inspection are not shipped. A test record is available upon request for quality-critical procurement processes.

Q3: Is this board compatible with both AFG and AFD series testers?
Yes. The full SKU designation — AFG/AFD PC BGQ-023036 PH566-A — confirms OEM compatibility across both the AFG and AFD platform families. If you are uncertain whether your specific tester revision uses this board, please share your system serial number or tester model with our technical team and we will confirm compatibility before shipment.

Q4: What is your lead time and can you support long-term supply agreements?
The BGQ-023036 PH566-A is currently in stock and ships within 2 business days of order confirmation. For facilities requiring guaranteed buffer stock or scheduled delivery programs, TOPNLMS can discuss long-term supply agreements to ensure continuity of spare parts availability for your AFG/AFD fleet.
