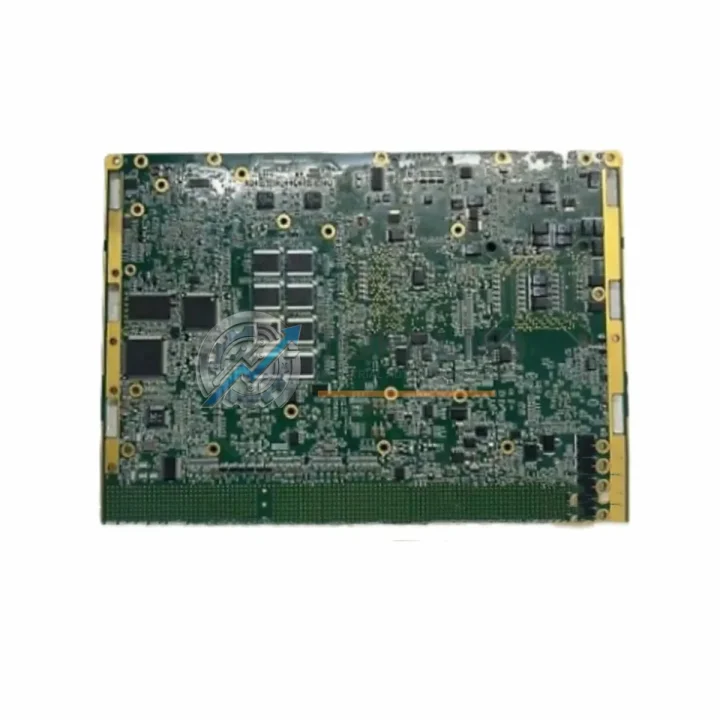

ADVANTECH MIC-3392MILS Original Industrial Spare MIC-3392 Compatible

Product Overview

ADVANTECH MIC-3392MILS: Sustaining System Stability with Original Industrial Spare Parts

In high-availability manufacturing environments, the integrity of your embedded computing infrastructure is non-negotiable. The ADVANTECH MIC-3392MILS is a full-size PICMG 1.3 System Host Board (SHB) engineered for demanding industrial control applications — from automated assembly lines and process control cabinets to SCADA workstations and machine vision systems. Sourced as an original spare part, the MIC-3392MILS enables maintenance teams to execute rapid board-level replacements without redesigning the backplane architecture or requalifying the control system.

When a system host board fails in a production environment, every minute of downtime translates directly into lost output and escalating recovery costs. Stocking the MIC-3392MILS as a certified spare eliminates the lead-time risk associated with emergency procurement and ensures your maintenance team can restore operations within a single shift window. TOPNLMS supplies this board as an original ADVANTECH component, fully tested prior to dispatch, and backed by a 12-month warranty.

Critical Technical Specs

Preventive Maintenance Strategy

A system host board replacement is rarely an isolated event. In a PICMG 1.3 industrial chassis, the MIC-3392MILS operates in close interdependency with multiple subsystems — and a board-level failure is often a signal that adjacent components have been operating under stress. A disciplined preventive maintenance approach treats the MIC-3392MILS replacement as the anchor of a broader inspection cycle.

During a scheduled shutdown or emergency board swap, maintenance engineers should simultaneously inspect the ADVANTECH MIC-5052 or MIC-5054 backplane for trace damage, connector wear, and slot integrity. The backplane is the electrical backbone of the entire chassis; a degraded backplane can cause intermittent faults that are frequently misdiagnosed as CPU or memory failures. Alongside the backplane, the chassis power supply unit — typically an ATX-format industrial PSU rated at 300W or above — should be load-tested, as aging capacitors in the PSU are a leading cause of SHB instability under thermal cycling.

Memory modules (DDR3 ECC DIMMs) seated in the MIC-3392MILS should be reseated and tested with a memory diagnostic utility during any planned maintenance window. If the system has been in service for more than three years, replacing the DIMMs proactively with matched pairs is a low-cost measure that significantly reduces the risk of parity errors in process-critical applications. Similarly, the SATA storage devices — whether industrial SSDs or CFast cards — connected to the board’s six SATA III ports should have their S.M.A.R.T. data reviewed; reallocated sector counts above threshold are a reliable early warning of imminent drive failure.

For systems using the MIC-3392MILS in a networked SCADA or DCS environment, the Intel GbE LAN ports and associated managed Ethernet switches in the control cabinet should be inspected for port errors and duplex mismatches. Communication modules such as PROFIBUS DP interface cards or EtherCAT master cards installed in the PICMG expansion slots should be verified for firmware currency and connector seating. Loose PCIe card seating is a common source of intermittent fieldbus communication faults that are difficult to reproduce under normal operating conditions.

The MIC-3392MILS serial ports (RS-232/422/485) are frequently used to interface with legacy PLCs, barcode readers, and weighing terminals. During inspection, verify that the serial port isolation is intact and that the connected signal isolators or RS-485 repeaters are functioning within specification — these low-cost components are often overlooked until a communication dropout causes a line stoppage. Finally, review the UPS or DC power conditioning unit supplying the chassis; voltage sag events during peak load are a primary cause of premature SHB failure in facilities with aging electrical infrastructure.

Strategic Replacement Solutions

The ADVANTECH MIC-3392MILS was designed for long-lifecycle industrial deployments, and many facilities continue to operate MIC-3392 series chassis well beyond the original product’s commercial availability window. TOPNLMS maintains stock of the MIC-3392MILS specifically to support these extended-lifecycle scenarios, providing a direct original-specification replacement that requires no BIOS reconfiguration, no driver migration, and no backplane modification.

For facilities transitioning from older PICMG 1.0 or PICMG 1.2 architectures, the MIC-3392MILS represents a validated upgrade path that preserves the existing chassis investment while delivering a significant improvement in processing headroom, PCIe bandwidth, and I/O density. The board’s support for Intel iAMT 8.0 enables out-of-band remote management — a capability that reduces the need for on-site intervention during off-hours fault events and is particularly valuable in geographically distributed manufacturing operations.

Maintenance planners managing multi-site operations should consider establishing a centralized spare parts buffer that includes at least one MIC-3392MILS per production line cluster. The board’s standardized PICMG 1.3 interface means a single spare can serve as a hot standby across multiple chassis configurations, reducing the total spare parts investment while maintaining full coverage. Combined with a documented swap procedure and a pre-configured OS image stored on an industrial SSD, the MIC-3392MILS enables a target recovery time of under two hours for a complete board-level failure — a benchmark that is achievable without specialized embedded computing expertise on the maintenance team.

Support FAQ

Q1: Is the MIC-3392MILS supplied as a genuine original ADVANTECH component?
Yes. TOPNLMS supplies the MIC-3392MILS as an original ADVANTECH board. Each unit undergoes functional testing — including POST verification, memory slot validation, SATA port enumeration, and LAN link testing — before shipment. A test report is available upon request.

Q2: What is the warranty coverage and what does it include?
All MIC-3392MILS units supplied by TOPNLMS carry a 12-month warranty from the date of shipment. The warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover physical damage caused by incorrect installation, ESD mishandling, or operation outside the specified environmental envelope. Warranty claims are processed within 5 business days of receipt of the returned unit.

Q3: Can the MIC-3392MILS be used as a direct drop-in replacement without reconfiguration?
In most cases, yes. The MIC-3392MILS is a PICMG 1.3 compliant SHB and will operate in any PICMG 1.3 compatible backplane. When replacing a failed board of the same model, the existing OS installation, BIOS settings (exported via BIOS backup utility), and peripheral configuration can be restored without modification. If the replacement board carries a different BIOS revision, a BIOS update to match the original version is recommended before restoring the system image.

Q4: How should the MIC-3392MILS be stored as a long-term spare?
Store the board in its original anti-static packaging in a climate-controlled environment at 10°C to 30°C with relative humidity below 60%, non-condensing. Avoid storage near magnetic fields or in environments with airborne conductive particulates. For long-term storage exceeding 12 months, inspect the board annually for oxidation on connector pins and reseat any socketed components before returning the board to service. TOPNLMS recommends rotating spare stock on a first-in, first-out basis to maintain warranty coverage continuity.
