Advanced Energy 2305227-C Original Industrial Spare RF: Sustaining System Stability in Critical Manufacturing Environments

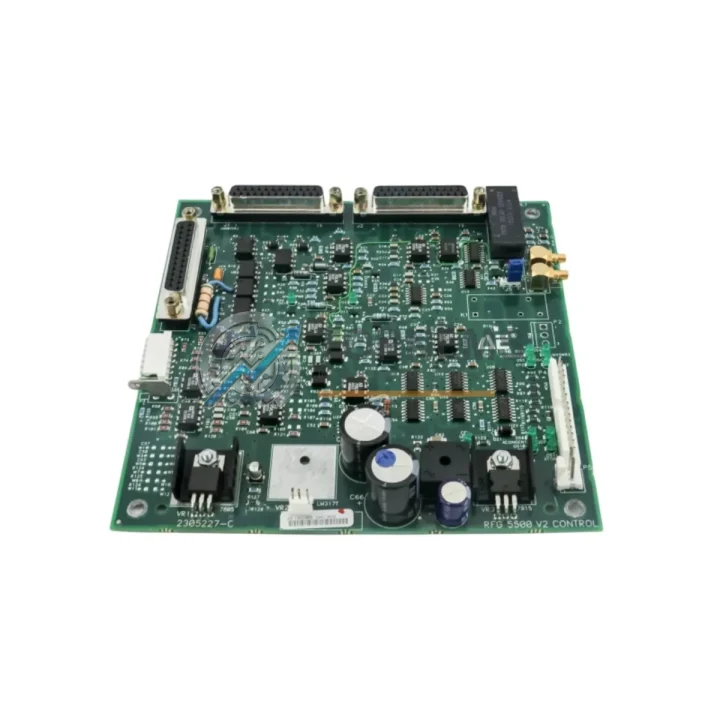

In high-demand semiconductor fabrication, plasma processing, and precision industrial manufacturing environments, the reliability of your RF power delivery system is non-negotiable. The Advanced Energy 2305227-C RF Power Supply Control Board — also referenced under part numbers 0620-01727 and 0620-02245 — is a factory-original control board engineered for the Advanced Energy RF Generator Control Series. This board governs the core power regulation, feedback control, and protection logic of the RF generator, making it one of the most critical spare components in any preventive maintenance or emergency replacement program for plasma-based process equipment.

Whether you are managing a scheduled turnaround, responding to an unplanned shutdown, or building a strategic spare parts inventory to extend the operational life of aging RF generator systems, the 2305227-C represents a high-value, low-risk procurement decision. Sourced as an original Advanced Energy component, it ensures full compatibility with existing system firmware, impedance matching networks, and process recipes — eliminating the integration risk associated with aftermarket substitutes.

Critical Technical Specs

Preventive Maintenance Strategy

A control board failure in an RF generator rarely occurs in isolation. In most field cases, the 2305227-C fault is preceded or accompanied by degradation in adjacent subsystems. A disciplined preventive maintenance program should treat the RF generator as a system — not a collection of independent parts.

When scheduling a planned replacement of the 2305227-C control board, maintenance engineers should simultaneously inspect the RF output power module and driver amplifier stage, as thermal stress from a failing control board frequently accelerates wear on these downstream components. The impedance matching network (matchbox) — typically an Advanced Energy Paramount or Navigator series unit — should be verified for tuning accuracy and capacitor condition, since a mismatched load is one of the leading causes of control board stress and premature failure.

The DC power supply module feeding the control board deserves equal attention. Voltage ripple or transient spikes from an aging internal PSU can corrupt control logic and trigger false fault codes. Replacing or bench-testing the DC supply in parallel with the control board replacement eliminates a common root cause of repeat failures. Similarly, the cooling fan assembly and thermal interface materials on the heat sink should be inspected — inadequate airflow is a silent killer of RF control electronics.

On the signal and communication side, the RS-232 / RS-485 serial communication interface board or Profibus/DeviceNet communication module (depending on your system integration) should be tested for signal integrity. A degraded communication interface can cause the host PLC or DCS controller to misread generator status, leading to unnecessary process aborts or, worse, undetected fault conditions. If your facility uses a Siemens S7-300/S7-400 PLC or an ABB AC800M DCS controller for process automation, verifying the I/O signal mapping to the RF generator interlock circuit is a recommended step during any control board swap.

Do not overlook the RF coaxial cable assemblies connecting the generator output to the matchbox and process chamber. Connector oxidation, dielectric breakdown, or impedance discontinuities in these cables can cause reflected power events that stress the replacement control board from day one. Inspecting and, where necessary, replacing the N-type or HN-type RF connectors and associated coaxial feedthroughs is a low-cost step that protects a high-value spare investment.

Finally, the process interlock relay module and safety I/O terminal block assembly within the generator control cabinet should be verified for contact integrity and correct wiring. Loose terminal connections or degraded relay contacts are a frequent source of intermittent faults that are misdiagnosed as control board failures — a thorough cabinet inspection before and after board replacement prevents unnecessary repeat maintenance events.

Strategic Replacement Solutions

The Advanced Energy 2305227-C is a direct OEM replacement for earlier board revisions including the 0620-01727 and 0620-02245 assemblies. This cross-compatibility means facilities operating legacy RF generator systems — some of which may be 10 to 15 years into their service life — can source a single current-revision board to replace multiple obsolete part numbers, simplifying spare parts inventory management and reducing procurement complexity.

For facilities managing end-of-life RF generator fleets, stocking one or two 2305227-C boards per production line provides a critical buffer against lead-time risk. Advanced Energy RF generators are deeply embedded in semiconductor and flat-panel display manufacturing lines where unplanned downtime costs can reach tens of thousands of dollars per hour. A pre-positioned spare board reduces mean time to repair (MTTR) from days — the typical lead time for an emergency OEM order — to hours, the time required for a trained technician to perform a board swap and system verification.

The 2305227-C is shipped fully tested and verified against Advanced Energy factory specifications. Each unit undergoes functional testing prior to dispatch, and is accompanied by our standard 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. This warranty coverage, combined with the board’s OEM origin, makes it a lower total-cost-of-ownership choice compared to refurbished or third-party alternatives that may introduce compatibility uncertainty or shortened service intervals.

For facilities transitioning to newer RF generator platforms, the 2305227-C also serves as a bridge component — maintaining production continuity on existing equipment while capital planning for system upgrades proceeds on a controlled timeline, rather than being forced by an emergency failure event.

Support FAQ

Q1: Is the 2305227-C compatible with all Advanced Energy RF Generator Control Series units?
The 2305227-C is designed for the Advanced Energy RF Generator Control Series and is backward-compatible with systems previously using the 0620-01727 and 0620-02245 board revisions. If you are uncertain about compatibility with your specific generator model and firmware revision, please contact us with your generator serial number and we will confirm fitment before shipment.

Q2: How is the board tested before shipment?
Each 2305227-C unit is functionally tested against Advanced Energy factory electrical specifications prior to dispatch. Testing covers power regulation performance, fault protection logic, and communication interface integrity. A test report summary is available upon request for quality-critical procurement processes.

Q3: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and functional failures arising under normal operating conditions from the date of shipment. It does not cover damage resulting from incorrect installation, overvoltage events, physical impact, or operation outside specified environmental parameters. Warranty claims are processed with priority turnaround to minimize your facility downtime.

Q4: How should we manage spare board inventory for multi-line facilities?
For facilities operating three or more RF generator systems of the same series, we recommend maintaining a minimum of one 2305227-C board per three generators as a rotating spare. For high-criticality single-line operations, a dedicated on-site spare is advisable. We can support blanket order arrangements and consignment stocking programs for volume customers — contact us to discuss inventory partnership options.
