ADEPT 10338-53100 Replacement Upgrade for 10338 Series

Product Overview

ADEPT 10338-53100 Replacement & Upgrade Solution for 10338 Series: Smooth Transition from Legacy Amplifier Systems

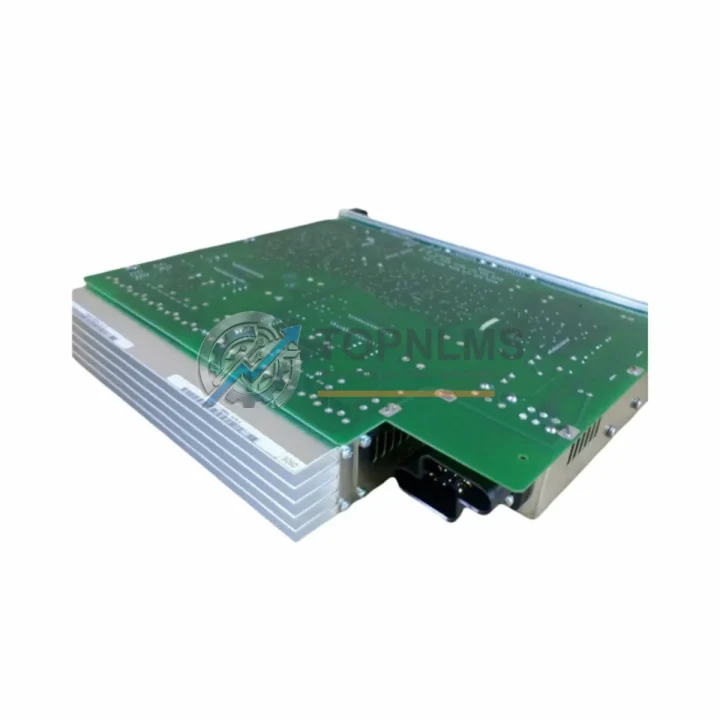

The ADEPT 10338-53100 Amplifier Module is a precision servo amplifier component widely deployed in ADEPT robotic and industrial automation control systems. As legacy ADEPT controllers age and original spare parts become increasingly scarce, facilities running ADEPT V+ or ADEPT SmartController-based architectures face mounting pressure to source reliable, drop-in compatible replacements that preserve existing wiring, programming logic, and system architecture without triggering a full-line shutdown.

TOPNLMS supplies the ADEPT 10338-53100 as a tested, verified replacement module for engineers and procurement teams managing planned or emergency retrofits. Whether you are replacing a failed amplifier in a live production cell or pre-positioning inventory ahead of a scheduled maintenance window, this module is stocked, inspected, and ready to ship from our Xiamen warehouse.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful ADEPT amplifier module replacement rarely involves a single component in isolation. In most retrofit scenarios, the 10338-53100 is installed alongside or in coordination with several other system elements that must be verified or simultaneously upgraded to ensure stable operation.

When replacing the amplifier module in an ADEPT SmartController rack, engineers typically inspect the ADEPT 10332-series servo drive boards and the associated ADEPT 10338-series axis interface modules to confirm that no adjacent slot has developed latent faults. In systems where the ADEPT Cobra or Viper robot arm is the end effector, the amplifier module interfaces directly with the ADEPT SmartController MV or CX controller chassis, and the integrity of the ADEPT 10300-series backplane connector must be confirmed before the replacement module is seated.

For facilities migrating from older ADEPT AdeptOne or AdeptThree controller cabinets to the SmartController platform, the 10338-53100 amplifier module is often part of a broader upgrade that includes replacing the ADEPT 10100-series power supply module to ensure the new amplifier receives clean, regulated DC power within specification. Simultaneously, the ADEPT programming cable (used to connect a PC running ADEPT Desktop or V+ IDE to the controller for parameter upload and motion program verification) should be on hand during commissioning to validate axis tuning parameters after the swap.

In multi-axis cells, the ADEPT 10338-53100 may be installed in parallel with ADEPT 10338-53200 or 10338-53300 amplifier variants serving additional robot axes. Ensuring all amplifier modules in the rack are from the same firmware revision family minimizes the risk of inter-axis communication faults during coordinated motion sequences. Where the control cabinet also houses third-party I/O expansion — such as a Beckhoff EK1100 EtherCAT coupler or a Phoenix Contact Axioline F I/O slice — the amplifier replacement should be scheduled to avoid disrupting the fieldbus scan cycle, particularly in systems where the ADEPT controller is integrated into a broader Siemens S7 or Allen-Bradley ControlLogix supervisory PLC architecture via DeviceNet or EtherNet/IP.

Signal isolation between the ADEPT amplifier outputs and downstream servo feedback wiring is another consideration in aging installations. If the existing Heidenhain or Renishaw encoder feedback cables show signs of insulation degradation, installing a signal isolator module in the feedback path before commissioning the new 10338-53100 can prevent nuisance faults and protect the replacement module from transient damage during initial power-up.

Retrofit Guidance FAQ

Q: Can I reuse existing field wiring when installing the 10338-53100?
A: Yes. The 10338-53100 uses the same OEM connector pinout as the original module. Existing servo motor power cables, encoder feedback wiring, and I/O signal cables can be reconnected without re-termination, provided the wiring is in good condition and insulation resistance checks pass.

Q: Do I need to re-upload or modify my V+ motion programs after replacement?
A: In most cases, no. The 10338-53100 is a direct hardware replacement and does not alter the V+ program structure. However, axis tuning parameters (Kp, Ki, Kd, velocity feedforward) stored in the controller’s non-volatile memory should be verified and re-confirmed after installation, as amplifier gain characteristics may vary slightly between production batches.

Q: What communication protocol does the 10338-53100 use?
A: The module communicates via the ADEPT proprietary motion control bus integrated into the SmartController backplane. No external fieldbus configuration is required for the amplifier itself. If your system uses DeviceNet or EtherNet/IP for supervisory integration, those network configurations are unaffected by the amplifier replacement.

Q: Will the module fit in my existing control cabinet without modification?
A: Yes. The 10338-53100 maintains the original OEM form factor and mounts directly into the existing SmartController rack slot. No cabinet cutouts, DIN rail adapters, or additional mounting hardware are required.

Q: How do I verify the replacement module is functioning correctly after installation?
A: Power up the controller with the new module seated and monitor the ADEPT SmartController status LEDs. Use the ADEPT Desktop software or V+ IDE to run a manual jog test on the affected axis at low speed before resuming automated production. Check for encoder feedback errors, overcurrent faults, and axis following error within the first 10 minutes of operation.

Q: What if my system uses an older ADEPT AdeptOne or AdeptThree controller?
A: The 10338-53100 is designed for the SmartController platform. If you are operating an AdeptOne or AdeptThree system, please contact our technical team at [email protected] to confirm compatibility or identify the correct replacement part number for your specific controller generation.

Warranty Assurance

Every ADEPT 10338-53100 Amplifier Module shipped by TOPNLMS is covered by a 12-Month Warranty from the date of shipment. Prior to dispatch, each unit undergoes a multi-point outgoing inspection that includes visual examination, connector integrity verification, and functional bench testing where applicable. Units that do not meet our quality threshold are quarantined and not offered for sale.

In the event of a warranty claim, our after-sales team responds within 1 business day. Defective units are eligible for replacement or refund depending on the nature of the fault and the elapsed warranty period. We maintain reserve stock of critical ADEPT components specifically to support rapid warranty replacements, minimizing the impact on your production schedule.

For procurement teams requiring documentation, we can provide a test report, packing list, and commercial invoice at the time of shipment. Express shipping via DHL, FedEx, or UPS is available for urgent orders, with typical transit times of 3–7 business days to most international destinations from our Xiamen facility.

For technical pre-sales questions, compatibility confirmation, or bulk pricing inquiries, contact our team directly.
