ABB ZMAC-542 3AXD50000022463 Original Industrial Spare ACS800 Compatible

Product Overview

ABB ZMAC-542 3AXD50000022463 Original Industrial Spare ACS800 Compatible: System Stability & Maintenance Value

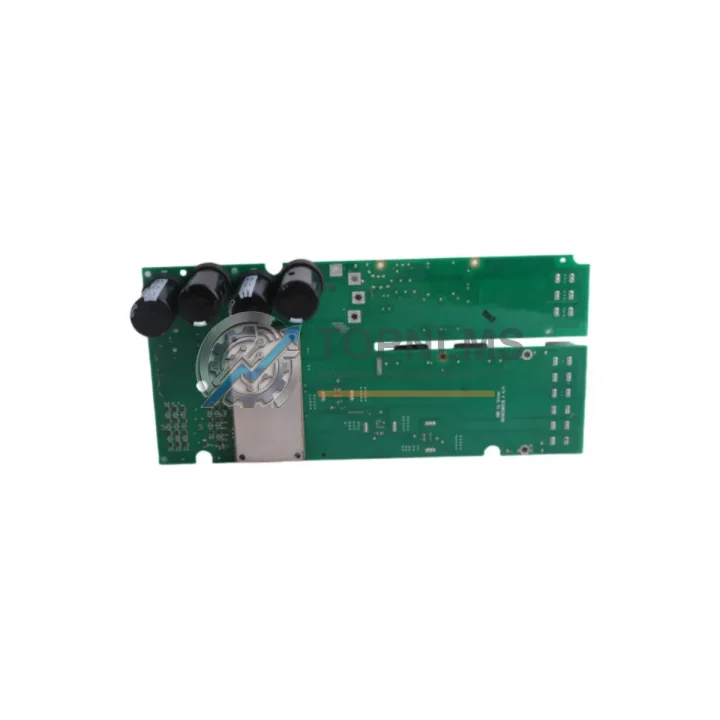

The ABB ZMAC-542 (part number 3AXD50000022463) is an original gate driver board engineered specifically for the ABB ACS800 series variable frequency drive (VFD) platform — one of the most widely deployed industrial drive families in global manufacturing, pulp & paper, oil & gas, water treatment, and heavy process industries. When an ACS800 drive trips on an IGBT fault, gate drive fault, or DC bus anomaly, the ZMAC-542 is frequently the root-cause component. Sourcing a verified original replacement immediately is the difference between a two-hour repair and a multi-day production shutdown.

At TOPNLMS, every ZMAC-542 unit is sourced from authorized supply channels, individually inspected, and function-tested before dispatch. Each unit ships with a 12-month quality warranty, a detailed inspection report, and anti-static protective packaging to ensure the board arrives in field-ready condition.

Critical Technical Specs

Preventive Maintenance Strategy

A gate driver board failure in an ACS800 drive rarely occurs in isolation. The IGBT power modules, DC bus capacitors, and control boards all operate as an interdependent system under continuous thermal and electrical stress. When scheduling a corrective or preventive maintenance window around the ZMAC-542, experienced maintenance engineers treat it as an opportunity to audit the entire drive cabinet.

Begin with the IGBT power module (e.g., ABB 3AUA0000025701 or equivalent frame-matched module) — the gate driver board interfaces directly with the IGBT’s gate and emitter terminals, and a degraded IGBT can cause repeated gate driver failures if not replaced simultaneously. Next, inspect the ACS800 AINT-02C or AINT-14C inverter control board, which coordinates PWM signals to the ZMAC-542; firmware corruption or capacitor aging on the control board can produce intermittent gate faults that are misdiagnosed as driver board failures.

The DC bus capacitor bank is another critical co-inspection item — bulging, leaking, or high-ESR capacitors generate voltage ripple that stresses gate driver circuitry. Pair the ZMAC-542 replacement with a capacitor bank inspection or scheduled replacement, particularly on drives that have been in service for more than seven years. While the cabinet is open, check the APOW-01 or APOW-02 auxiliary power supply board, which provides the low-voltage rails (+24 V, +15 V, −15 V) that the gate driver depends on; a sagging auxiliary supply is a common hidden cause of nuisance gate faults.

For drives installed in dusty or humid environments, inspect and clean the cooling fan assembly (ABB ACS800 frame-specific fan units) and verify that the thermistor/PTC sensor circuit on the heat sink is reading correctly — thermal runaway is the leading cause of IGBT and gate driver damage. If the drive communicates over PROFIBUS, MODBUS, or DeviceNet, also verify the RDCO-03 or RDCO-04 communication option board for loose connectors and firmware version compatibility, as communication faults during a drive restart after maintenance can mask underlying hardware issues.

For multi-drive cabinet installations, extend the inspection to the common DC bus busbars and fuse modules — a blown DC bus fuse or a loose busbar connection can cause asymmetric loading that damages gate driver boards on otherwise healthy drive modules. Finally, review the ACS800 I/O extension module (e.g., AIMA-01) and any signal isolator cards in the control circuit to ensure analog reference signals are clean and within specification, as signal noise on speed or torque references can cause erratic switching behavior that accelerates gate driver wear.

Strategic Replacement Solutions

The ABB ACS800 platform was introduced in the late 1990s and remains in active service across thousands of industrial facilities worldwide. ABB’s official end-of-life and limited-availability notices for certain ACS800 sub-components have made sourcing original spare boards increasingly challenging through standard distribution channels. The ZMAC-542 / 3AXD50000022463 is one such component where lead times from OEM channels can extend to 8–20 weeks, making pre-stocked aftermarket supply critical for facilities that cannot tolerate extended downtime.

Replacing the ZMAC-542 with a verified original unit — rather than an unverified substitute — preserves the drive’s CE/UL certification integrity, maintains compatibility with ABB’s DriveWindow and Drive Composer diagnostic tools, and avoids the risk of mismatched gate timing that can destroy IGBT modules within hours of commissioning. For facilities operating multiple ACS800 frames (R2 through R8), maintaining a minimum of one ZMAC-542 per frame size in local inventory is a recognized best practice in IEC 62443-aligned maintenance programs.

TOPNLMS supplies the ZMAC-542 with full traceability documentation, pre-shipment electrical testing, and ESD-safe packaging. Our global logistics network supports delivery to mainland China, Southeast Asia, the Middle East, and Europe, with DHL Express and FedEx Priority options available for emergency breakdown scenarios. For facilities managing ACS800 fleets of five or more drives, we offer volume pricing and consignment stock arrangements — contact our technical sales team to discuss a tailored spare parts program.

Support FAQ

Q1: How do I confirm the ZMAC-542 is compatible with my specific ACS800 frame size?
The ZMAC-542 / 3AXD50000022463 is used across multiple ACS800 frame sizes. Please provide your drive’s full type code (found on the nameplate, e.g., ACS800-01-0016-3) and we will confirm compatibility before shipment. Our technical team can cross-reference the part against ABB’s internal BOM to verify the correct revision.

Q2: What does the 12-month warranty cover?
The warranty covers manufacturing defects and functional failure under normal operating conditions for 12 months from the date of shipment. Each unit is tested prior to dispatch. In the event of a warranty claim, we provide a replacement unit or full refund after fault verification. The warranty does not cover damage caused by incorrect installation, overvoltage events, or use outside the specified operating environment.

Q3: Can I install the ZMAC-542 myself, or do I need an ABB-certified engineer?
The ZMAC-542 is a field-replaceable board designed for maintenance personnel familiar with ACS800 drive architecture. ABB’s ACS800 Hardware Manual provides step-by-step replacement procedures. We recommend following lockout/tagout (LOTO) procedures, discharging the DC bus fully before handling, and using ESD wrist straps. For facilities without in-house drive expertise, we recommend engaging a qualified drive service partner.

Q4: Do you offer expedited shipping for emergency breakdown situations?
Yes. For confirmed in-stock units, we support same-day dispatch on orders placed before 14:00 CST. DHL Express and FedEx Priority International options are available at checkout, with typical transit times of 2–5 business days to most destinations. Contact [email protected] or +86 18359293191 for urgent breakdown support and we will prioritize your order.
