ABB YPP109A Replacement Upgrade Solution for Symphony

Product Overview

ABB YPP109A Replacement Upgrade Solution for Symphony: Seamless Transition from Legacy DCS Power Infrastructure

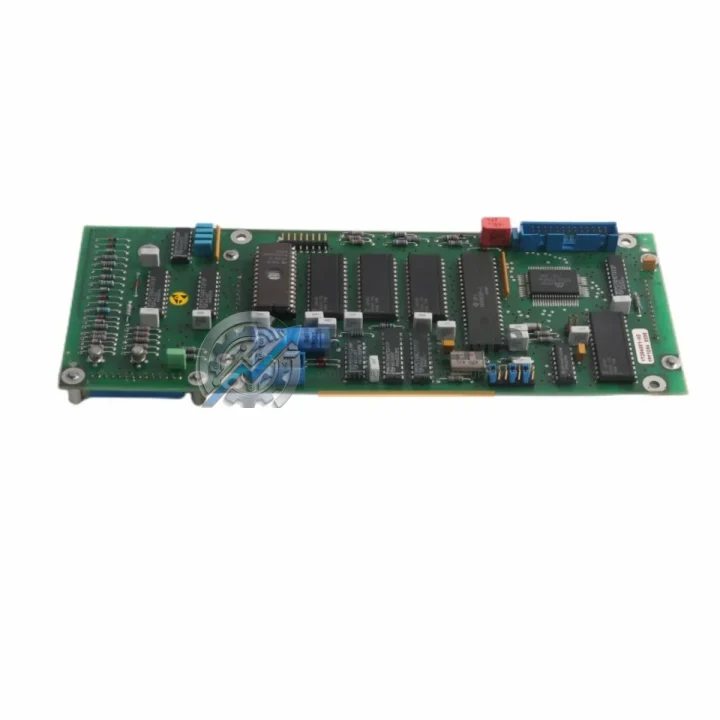

The ABB YPP109A (YT204001-DL) / YPN106A (YT204001-BD) EG2401S-AR is a precision-engineered digital power module designed for the ABB Symphony Distributed Control System platform. As process facilities worldwide continue to operate aging Symphony-based control architectures — including the Symphony Plus, Harmony, and earlier Melody variants — the demand for verified original replacement power modules has intensified. This unit serves as a direct, drop-in upgrade solution for facilities transitioning away from failed or end-of-life power supply assemblies within their existing DCS cabinet infrastructure.

Whether your facility is executing a targeted component-level replacement to restore a faulted power rail, or undertaking a broader cabinet modernization to extend the operational life of a Symphony system by five to ten years, the YPP109A / YPN106A EG2401S-AR provides the electrical compatibility, form factor, and communication interface alignment required for a low-risk, minimal-downtime installation.

Compatibility Comparison Table

Seamless Upgrade Solutions

A power module replacement within a Symphony DCS cabinet rarely occurs in isolation. When a YPP109A / YPN106A EG2401S-AR unit fails or is flagged during a scheduled inspection, experienced DCS engineers treat the event as an opportunity to audit the surrounding power distribution and I/O infrastructure for latent degradation — particularly in systems that have been in continuous service for more than a decade.

The power module operates in direct electrical relationship with the ABB YPR111A Power Supply Module and the YPQ105A Redundant Power Controller, both of which share the same 24 VDC cabinet bus. A degraded or intermittently faulting power supply upstream of the YPP109A is a common root cause of power module failures that are initially misdiagnosed as module-level faults. Inspecting and, where necessary, replacing the YPR111A during the same maintenance window eliminates the risk of a repeat failure after the new power module is installed.

Within the same Symphony card file, the ABB IMFEC11 Field Interface Module and IMDSO14 Digital Output Module draw regulated power from the same backplane rail as the digital power module. If the power module has been operating in a degraded state — delivering marginally low voltage or exhibiting ripple — these I/O modules may have accumulated stress that shortens their remaining service life. Stocking tested spares of the IMFEC11 and IMDSO14 alongside the YPP109A replacement unit is a standard risk mitigation practice for facilities managing Symphony systems through an extended operational horizon.

For facilities undertaking a broader Symphony cabinet modernization — replacing multiple end-of-life modules across a card file rather than performing single-point repairs — the upgrade scope typically extends to the ABB IMASI23 Analog Input Module, IMCIS02 Communication Interface Module, and the NTCL01 Termination Unit. The NTCL01 termination unit is particularly important in migration projects: it provides the field wiring interface that allows existing cable runs to be preserved when modules are swapped, eliminating the need for rewiring and dramatically reducing installation time during a planned outage.

Communication continuity is a critical consideration in any Symphony upgrade. The ABB INNIS21 Network Interface Module and IMHSS03 High-Speed Serial Interface manage the data exchange between the Symphony controller and the operator station or historian. If the power module failure has caused intermittent communication dropouts, these interface modules should be tested and their firmware versions verified against the current Symphony Plus compatibility matrix before the system is returned to service. Maintaining a spare INNIS21 in the facility’s critical spares inventory ensures that a communication module failure during the post-replacement commissioning phase does not extend the outage window.

Finally, for facilities that operate ABB AC800M controllers or Freelance DCS systems alongside legacy Symphony infrastructure, cross-platform power supply and I/O module procurement can be consolidated into a single supplier relationship, reducing administrative overhead and improving spare parts availability across the entire control system estate.

Retrofit Guidance FAQ

Q1: Does replacing the YPN106A with the YPP109A require any wiring changes or terminal block modifications?
No. The YPP109A / YPN106A EG2401S-AR is a direct form-fit-function replacement for the earlier YPN106A revision. The connector pinout, card slot dimensions, and backplane interface are identical. Existing field wiring, terminal blocks, and cabinet cable runs are fully preserved. The replacement procedure involves powering down the affected card file section, extracting the failed module, inserting the replacement unit, and restoring power — no rewiring or mechanical modification is required.

Q2: Is any programming or configuration change needed after installing the replacement module?
In standard Symphony DCS architectures, the digital power module does not carry application-level programming. Configuration parameters are held in the controller and I/O modules, not in the power module itself. After a direct swap, the system should recognize the replacement unit automatically upon power restoration. We recommend verifying module status via the Symphony operator station and confirming that all downstream I/O modules report healthy status before returning the loop to automatic control.

Q3: How is physical space compatibility confirmed for cabinets with non-standard card file configurations?
The YPP109A / YPN106A EG2401S-AR conforms to the standard Symphony module form factor and is designed to occupy a single card slot in a compatible Symphony card file. For cabinets with custom or modified card file arrangements, we recommend providing the card file part number and slot configuration when placing your order. Our technical team will confirm physical fitment before shipment to eliminate the risk of a dimensional mismatch on-site.

Q4: What communication protocols does this power module support, and is it compatible with Symphony Plus?
The EG2401S-AR digital power module communicates via the Symphony internal backplane bus protocol, which is consistent across Symphony, Symphony Plus, and Harmony platform variants. It does not implement an independent fieldbus or Ethernet interface — its communication role is limited to backplane-level status reporting and power management signaling. Compatibility with Symphony Plus card files has been verified for standard slot configurations.

Warranty Assurance

Every ABB YPP109A / YPN106A EG2401S-AR unit shipped by TOPNLMS is covered by a 12-month warranty against functional failure under normal operating conditions. This warranty commitment reflects our confidence in the pre-shipment testing process applied to every unit before dispatch.

Pre-shipment Testing: Each unit undergoes function-level electrical verification on compatible test equipment prior to packaging. Testing covers power output integrity, backplane communication signaling, and connector condition. A test report is available upon request for quality assurance and asset management documentation purposes.

Warranty Claims: If a unit fails within the 12-month warranty period under normal operating conditions, TOPNLMS will provide a replacement unit or full refund following fault verification. Claims are initiated by contacting [email protected] with a fault description, installation details, and order reference number. Typical claim assessment and resolution time is 3–5 business days from receipt of the fault report.

Shipping and Availability: Units are dispatched from verified stock via DHL, FedEx, or EMS depending on destination and urgency. Express shipping options are available for emergency replacement scenarios where minimizing downtime is the primary procurement driver. Lead time for in-stock units is typically 1–3 business days from order confirmation.

Procurement Assurance: For facilities managing Symphony systems through a multi-year operational extension or phased migration, TOPNLMS supports volume procurement agreements that lock in unit availability and pricing across a defined supply horizon. This eliminates the risk of spot-market shortages during critical maintenance windows and supports the inventory planning requirements of ISO 55000-aligned asset management programs.
