ABB YPC104B YT204001-BT Replacement for YPC Series

Product Overview

ABB YPC104B YT204001-BT Replacement for YPC Series: Seamless Transition & Compatibility Upgrade

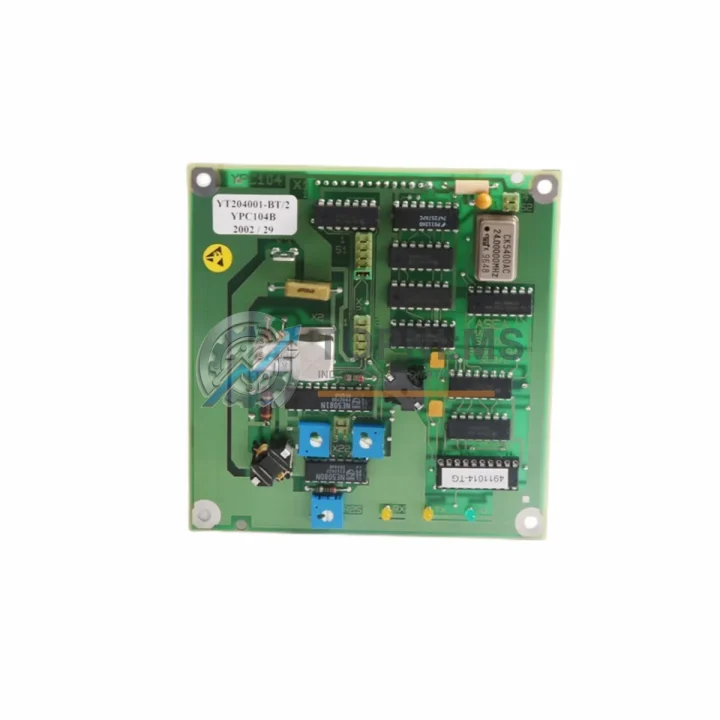

The ABB YPC104B YT204001-BT is a FSK Modem Power Line Communication Module engineered for ABB’s YPC Series distributed control and protection relay platforms. As legacy installations age and original ABB stock becomes increasingly scarce, plant engineers and procurement teams face mounting pressure to source verified replacements that maintain full system integrity without triggering costly re-engineering or extended downtime. This module addresses that challenge directly — offering a tested, compatible replacement path for facilities running ABB YPC Series communication architectures.

The YPC104B YT204001-BT uses Frequency Shift Keying (FSK) modulation to transmit control and protection signals over existing power line infrastructure. This eliminates the need for dedicated communication cabling in retrofit scenarios, making it especially valuable in brownfield upgrades where running new signal cables through conduit or cable trays is impractical or cost-prohibitive. The module integrates directly into the existing YPC Series rack and backplane, preserving the original wiring harness, terminal block assignments, and communication bus topology.

When migrating from an older ABB YPC Series installation — particularly systems built around discontinued or end-of-life communication modules — the YPC104B YT204001-BT provides a direct form-factor match. The module occupies the same DIN rail or rack slot as its predecessor, and the FSK signal parameters are compatible with the existing line coupling units and receiver modules already installed in the control cabinet. Engineers performing the swap typically report no changes required to the protection relay configuration or the SCADA polling addresses, significantly reducing commissioning time on site.

For facilities upgrading from older ABB REF, REC, or REL series protection relay systems that relied on earlier-generation power line carrier communication, the YPC104B YT204001-BT serves as a bridge component. It can operate alongside ABB LDCM (Line Data Communication Modem) units and is compatible with the signal conditioning requirements of ABB’s FOX series communication platforms in hybrid retrofit configurations. When the broader system includes ABB COM600 or COM610 substation communication gateways, the YPC104B YT204001-BT maintains the expected FSK channel parameters without requiring gateway reconfiguration.

In control cabinet installations, physical space is often a constraint. The YPC104B YT204001-BT maintains the same mechanical envelope as the original YPC Series module, ensuring it fits within existing enclosure layouts without modification to mounting rails, cable management channels, or adjacent module spacing. This is particularly relevant in compact switchgear panels where clearance between modules is minimal and any dimensional change would require panel redesign.

Power supply compatibility is another critical factor in replacement decisions. The YPC104B YT204001-BT operates within the standard auxiliary voltage range used across the YPC Series platform, meaning the existing ABB PSMV or equivalent 24 VDC/48 VDC panel power supply does not need to be upsized or replaced. This keeps the bill of materials for the retrofit focused and predictable.

Communication protocol continuity is maintained through the module’s native FSK implementation, which is compatible with the IEC 60870-5-101 and proprietary ABB SPACOM protocol layers used in older YPC Series deployments. For sites that have partially modernized to IEC 61850-based architectures, the YPC104B YT204001-BT can coexist with ABB REX640 or RET670 IED units operating on the same substation LAN, provided the power line carrier channel is kept as a dedicated protection signaling path separate from the Ethernet-based process bus.

Procurement teams sourcing this module as a critical spare or emergency replacement will find that the YPC104B YT204001-BT ships fully tested and function-verified. Each unit undergoes pre-shipment inspection covering FSK modulation output, power supply input tolerance, and backplane connector integrity. Units are packaged in anti-static ESD-safe materials with individual serial number documentation, supporting traceability requirements for ISO 9001-certified maintenance programs.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful YPC104B YT204001-BT replacement is rarely a single-module exercise. In practice, the migration scope typically extends to adjacent components that share the same rack, backplane, or communication channel. When replacing the FSK modem module, it is common to simultaneously audit and refresh the ABB YPC Series line coupling unit (LCU) that interfaces the modem output to the power line, as aging coupling capacitors and band-pass filters can degrade FSK signal quality even after the modem itself is replaced.

For sites where the YPC Series rack also houses ABB YPQ or YPR series I/O modules, these should be inspected for contact wear and firmware currency as part of the same maintenance window. Replacing the communication module while leaving degraded I/O modules in service defeats the purpose of the upgrade and risks a repeat outage within the same maintenance cycle.

The ABB PSMV series panel power supply module is another component frequently addressed during YPC Series retrofits. If the existing power supply has been in continuous service for more than ten years, its output ripple and regulation characteristics may no longer meet the tighter tolerance requirements of newer replacement modules. Upgrading the power supply in the same intervention avoids voltage-related commissioning issues post-replacement.

In installations where the YPC104B YT204001-BT is part of a broader protection relay upgrade, the ABB REF615 or REF630 feeder protection relay is a common companion replacement for legacy REF series units. These modern IEDs support both IEC 61850 GOOSE messaging and legacy serial communication, allowing a phased migration where the power line carrier channel (served by the YPC104B YT204001-BT) remains active while the Ethernet-based protection architecture is commissioned in parallel.

For the programming and configuration side of the retrofit, an ABB-compatible optical or USB programming cable and the corresponding relay configuration tool (such as PCM600 or Relion Configuration Tool) are required to verify relay settings and communication parameters after module replacement. Having these tools on site before the maintenance window begins is essential to avoid delays during the commissioning phase.

Signal isolation is another consideration in older installations where ground loops or common-mode noise on the power line may interfere with FSK communication. A DIN-rail mounted signal isolator or surge protection module installed at the line coupling interface can significantly improve communication reliability in electrically noisy environments, particularly in industrial plants with large variable frequency drives (VFDs) or arc furnaces on the same bus.

Finally, for control cabinets being partially modernized, ABB’s CP600 or CP635 HMI panels are frequently specified alongside YPC Series communication upgrades to provide local operator visibility into protection relay status and alarm conditions, replacing older text-based operator panels that lack the display resolution needed for modern diagnostic workflows.

Retrofit Guidance FAQ

Q: Do I need to rewire the terminal blocks when replacing the old YPC module with the YPC104B YT204001-BT?
A: No. The YPC104B YT204001-BT is pin-compatible with the YPC Series terminal block layout. Existing wiring, including the line coupling connections and auxiliary power feeds, can remain in place. Verify terminal torque values against the installation manual before re-energizing.

Q: Will the replacement module require changes to the protection relay program or settings?
A: In most cases, no. The FSK channel parameters of the YPC104B YT204001-BT are compatible with the existing relay configuration. However, it is recommended to perform a channel loop test after installation to confirm signal levels and trip/block command response times meet the original protection scheme requirements.

Q: Is the YPC104B YT204001-BT compatible with IEC 61850 substations?
A: The module itself operates on the FSK power line carrier channel, which is independent of the IEC 61850 process bus. It can coexist in substations that have been partially migrated to IEC 61850, provided the power line carrier channel is maintained as a dedicated protection signaling path.

Q: What is the physical installation space requirement?
A: The YPC104B YT204001-BT matches the mechanical dimensions of the original YPC Series module. No modifications to the control cabinet, DIN rail, or adjacent module spacing are required.

Q: How do I verify communication is working after installation?
A: Perform a local loop test using the ABB relay test set or PCM600 tool to inject a test signal and confirm the FSK modem is transmitting and receiving correctly. Check the line coupling unit output with a spectrum analyzer if signal quality issues are suspected.

Q: Can this module be used as a long-term spare for multiple sites?
A: Yes. The YPC104B YT204001-BT is suitable for use as a critical spare across any installation running ABB YPC Series communication infrastructure. Units are stored in ESD-safe packaging and maintain shelf life when stored in a controlled environment (15–35°C, <75% RH).

Warranty Assurance

Every ABB YPC104B YT204001-BT unit supplied by TOPNLMS is backed by a 12-Month Warranty covering manufacturing defects, functional failures, and component-level faults identified under normal operating conditions. The warranty period begins from the date of shipment confirmation.

Pre-Shipment Testing: Each module undergoes a structured pre-shipment inspection protocol that includes power-on functional verification, FSK modulation output measurement, backplane connector inspection, and visual quality check. Units that do not pass all test criteria are quarantined and not shipped.

Replacement Support: In the event of a warranty claim, TOPNLMS will arrange a replacement unit dispatch within 3–5 business days of claim confirmation. Defective units are to be returned in original packaging with a completed fault description form. No-fault-found returns are subject to inspection before warranty credit is issued.

After-Sales Response: Our technical support team is available to assist with installation queries, compatibility confirmation, and commissioning guidance. Response time for technical inquiries is within 24 hours on business days.

Procurement Assurance: All units are sourced through verified supply channels with full traceability documentation available on request. Certificates of conformity, test reports, and country-of-origin documentation (Germany) can be provided for customs clearance and quality audit purposes.

For volume orders, scheduled delivery programs, and consignment stock arrangements, contact our sales team to discuss terms tailored to your maintenance and procurement cycle.
