ABB SSPAM150C-AA RS641006 Replacement for SPAM Series: Smooth Transition & Legacy System Compatibility

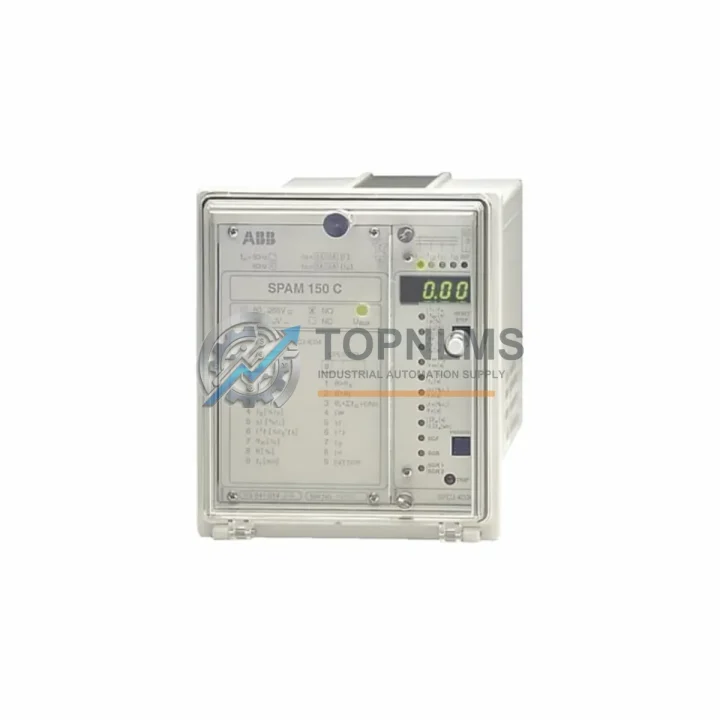

The ABB SSPAM150C-AA RS641006 is a motor protection relay from ABB’s SPAM series, engineered for reliable overcurrent, earth-fault, and thermal overload protection in medium-voltage motor feeder applications. For facilities operating aging SPAM150 or earlier SPAM100 variants that have reached end-of-life or are no longer supported under ABB’s active spare parts program, the SSPAM150C-AA RS641006 represents the most direct and field-proven upgrade path — preserving existing wiring infrastructure, panel cutout dimensions, and relay logic without requiring a full protection scheme redesign.

Industrial sites running legacy ABB SPACOM or PYRAMID integrator-based protection systems frequently encounter the challenge of sourcing compatible replacement relays as original production batches are discontinued. The SSPAM150C-AA RS641006 addresses this directly: its RS641006 hardware revision maintains backward-compatible terminal assignments with earlier SPAM150 builds, allowing maintenance engineers to swap the unit into an existing relay panel with minimal rewiring. The 24 VDC auxiliary supply input and standard DIN rail or flush-panel mounting footprint align with the physical constraints of most MCC (Motor Control Center) and switchgear cubicles already in service.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful motor protection relay migration rarely involves a single component. When upgrading from a legacy SPAM150 or SPACOM-based protection scheme to the SSPAM150C-AA RS641006, the surrounding system architecture must be evaluated in parallel. The SPA-bus communication backbone — typically running from the relay to an ABB SRIO 1000M or SRIO 500M remote I/O unit — should be verified for optical fiber integrity and protocol compatibility before commissioning the replacement relay. In installations where the SPA-bus master is an older ABB PYRAMID integrator or a COM600 series station computer, the RS641006 firmware revision communicates natively without gateway conversion, simplifying the migration considerably.

For sites transitioning to IEC 61850-based substation automation, the SSPAM150C-AA RS641006 can coexist with ABB REF615 or REM615 feeder and motor protection IEDs during a phased migration, allowing critical feeders to be upgraded one at a time without taking the entire protection scheme offline. Terminal modules such as the ABB RTXP 18 or RTXP 24 test switch assemblies are directly compatible and should be retained or replaced in kind to maintain the relay’s test and isolation functionality during live-panel maintenance.

Power supply integrity is equally critical. The 24 VDC auxiliary rail feeding the SSPAM150C-AA RS641006 should be sourced from a dedicated ABB UNS 0861 or equivalent DIN-rail DC/DC converter to ensure stable supply voltage during motor starting transients. Where the existing MCC uses a shared AC auxiliary bus, an interposing relay or signal isolator — such as a Phoenix Contact or Weidmüller DIN-rail signal conditioner — may be required to interface binary output contacts with the new relay’s input logic thresholds.

Programming and parameterization of the SSPAM150C-AA RS641006 is performed via the ABB CAP 505 relay setting tool or the newer PCM600 protection and control IED manager, both of which support the SPAM series parameter file format. Existing setting files from the legacy SPAM150 can be imported and reviewed, with only minor adjustments required for the updated thermal model coefficients in the RS641006 revision. This significantly reduces commissioning time compared to a full relay replacement with a different product family.

Retrofit Guidance FAQ

Q: Can I reuse the existing CT wiring when replacing a SPAM150 with the SSPAM150C-AA RS641006?
A: Yes. The current transformer (CT) secondary wiring connections follow the same terminal numbering convention as the SPAM150 series. Verify CT ratio settings in the relay parameters match the installed CTs before energizing.

Q: Is the SPA-bus address configuration preserved after replacement?
A: The SPA-bus slave address is set via front-panel DIP switches or parameter settings. You must manually re-enter the original address to maintain communication with the existing SCADA or substation automation master. Document the legacy relay’s address before removal.

Q: What programming software is required?
A: ABB CAP 505 (legacy) or PCM600 (current) are both supported. The RS641006 hardware revision is recognized by PCM600 version 2.7 and later. Ensure your engineering workstation has the correct relay type library installed.

Q: Will the physical panel cutout need modification?
A: No. The SSPAM150C-AA RS641006 uses the same flush-panel mounting dimensions as the SPAM150 series. Standard M4 fixing screws and the existing gasket frame can be reused.

Q: How do I handle the thermal memory function during replacement?
A: The thermal memory (accumulated thermal state) is stored in non-volatile memory. After replacement, the relay initializes with a cold thermal state. For motors with recent heavy-load history, apply a conservative restart delay or manually set an initial thermal state via the parameter tool before returning the feeder to service.

Q: Is the earth-fault protection scheme compatible with high-impedance or low-impedance earthed systems?
A: The SSPAM150C-AA RS641006 supports both solidly earthed and resistance-earthed neutral configurations. Confirm the earth-fault current setting (Io>) matches the system earthing impedance and the installed core-balance CT ratio.

Warranty Assurance

Every ABB SSPAM150C-AA RS641006 unit supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes functional verification including auxiliary supply input check, output relay contact continuity test, and communication port integrity inspection. Units are shipped in anti-static protective packaging with original or equivalent documentation.

In the event of a confirmed unit defect within the warranty period, TOPNLMS provides direct replacement support with priority processing. Our technical team is available to assist with pre-installation parameter verification, compatibility confirmation, and post-installation commissioning queries. Typical order processing time is 1–3 business days, with express air freight options available for urgent plant maintenance requirements.

Stock availability is maintained for immediate dispatch. For volume procurement, blanket order arrangements and consignment stock programs are available on request. All units are sourced through verified supply channels and are accompanied by traceability documentation upon request.
