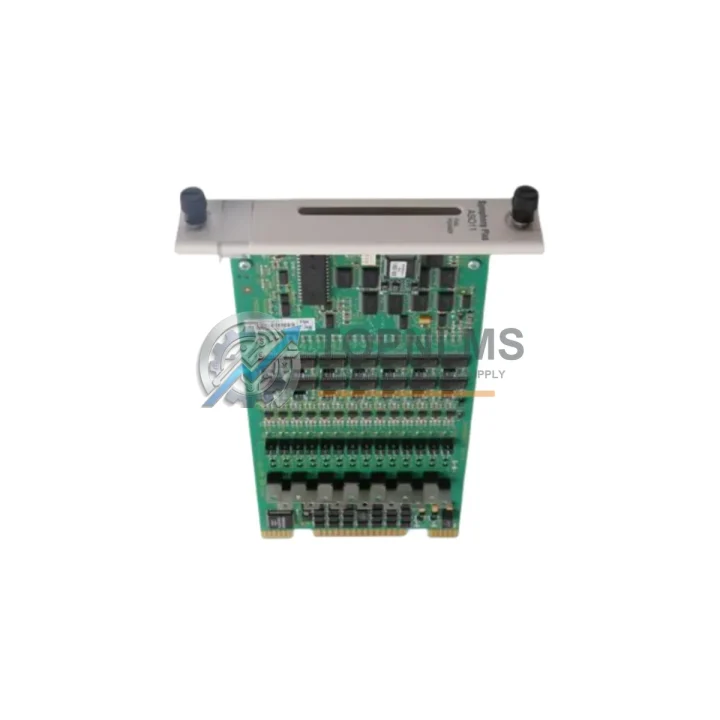

ABB SPAS011 Replacement/Upgrade Solution for ADVANT OCS

Product Overview

ABB SPAS011 Replacement/Upgrade Solution for ADVANT OCS: Smooth Transition from Legacy Analog Output Systems

The ABB SPAS011 is a high-precision analog output module originally designed for the ABB ADVANT OCS (Open Control System) platform — one of the most widely deployed distributed control architectures in process industries including oil & gas, power generation, pulp & paper, and chemical manufacturing. As the ADVANT OCS platform approaches end-of-life and spare parts become increasingly scarce, plant engineers and procurement teams face mounting pressure to source verified replacement units or plan a structured migration to a supported control architecture.

TOPNLMS specializes in exactly this scenario. We maintain verified stock of the SPAS011 module and provide full technical support for both direct replacement and phased migration projects. Whether your goal is to extend the operational life of an existing ADVANT OCS installation or to execute a controlled cutover to a modern ABB System 800xA or AC500 platform, this page provides the procurement and engineering information you need to make a confident decision.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful SPAS011 replacement or ADVANT OCS migration rarely involves a single module in isolation. In practice, field engineers encounter a cascade of interdependent components that must be evaluated together to ensure system continuity and minimize unplanned downtime.

The SPAS011 analog output module sits within an ADVANT S100 or S400 I/O subrack, sharing a backplane with companion modules such as the SPAI110 analog input module and the SPDI110 digital input module. When replacing the SPAS011, it is standard practice to inspect the adjacent SPTB110 termination board, which carries the field wiring connections. A corroded or damaged termination board will cause signal errors even with a new SPAS011 installed, so procurement teams often order both components together.

Power integrity is another critical factor. The ADVANT OCS rack relies on the SPSU module (typically SPSU111 or SPSU112) to supply regulated 24 VDC to all installed I/O cards. Before inserting a replacement SPAS011, verify that the SPSU module’s total load budget accommodates the additional draw. If the existing SPSU is already near capacity — a common situation in fully populated racks — a parallel SPSU unit may be required.

For sites executing a phased migration rather than a direct replacement, the communication architecture requires careful planning. The ADVANT OCS platform uses the AF100 Advant Fieldbus as its primary I/O communication backbone. Migrating to a modern ABB System 800xA environment typically involves introducing an S800 I/O Remote Unit alongside a CI854 AF100 Communication Interface module, which allows the new controller to communicate with legacy ADVANT field devices during the transition period. This hybrid approach is widely used in brownfield upgrades where a full cutover in a single maintenance window is not feasible.

On the controller side, sites migrating away from the ADVANT Controller 450 (AC450) or AC410 often target the ABB AC500 PLC platform as the modern equivalent. The AC500’s modular architecture, support for IEC 61131-3 programming, and compatibility with standard PROFIBUS DP and PROFINET I/O make it a natural migration destination. The analog output functionality of the SPAS011 is replicated in the AC500 ecosystem by the AO523 analog output module, which supports 8 channels of 4–20 mA output with HART pass-through capability — a significant functional upgrade for sites requiring field device diagnostics.

For installations where the ADVANT OCS communicates with third-party SCADA systems or DCS platforms via serial protocols, a PCSB110 communication module or equivalent serial gateway may be part of the existing architecture. These communication modules should be inventoried and tested alongside the SPAS011 replacement, as firmware version mismatches between communication and I/O modules can cause intermittent data errors after a module swap.

Finally, sites that use ABB’s Advant Station 500 Series operator interface or a third-party HMI connected via the ADVANT Fieldbus should verify that the HMI tag database reflects the correct channel assignments after the SPAS011 is replaced. In most cases, a direct module swap preserves all tag mappings without requiring HMI reconfiguration, but this should be confirmed during the pre-maintenance engineering review.

Retrofit Guidance FAQ

Q: Can I replace the SPAS011 without modifying field wiring?
A: Yes, in the vast majority of cases. The SPAS011 connects to the field via the SPTB termination board, which remains in place during a module swap. Field wiring does not need to be disturbed. Verify that the termination board model matches the SPAS011 variant (standard vs. isolated output) before ordering.

Q: Do I need to re-download the control program after replacing the SPAS011?
A: No. The ADVANT OCS control program resides in the AC450 or AC410 controller, not in the I/O module. A direct SPAS011 replacement does not require any programming changes. The module will be recognized automatically by the controller upon power-up, and analog output channels will resume normal operation within one scan cycle.

Q: Is the SPAS011 compatible with PROFIBUS or FOUNDATION Fieldbus networks?
A: No. The SPAS011 is a native ADVANT Fieldbus (AF100) module and does not support PROFIBUS DP, PROFIBUS PA, or FOUNDATION Fieldbus natively. If your migration plan requires integration with a PROFIBUS-based DCS, a protocol gateway or a full I/O migration to S800 Remote I/O with CI854 interface is required.

Q: What is the physical installation space requirement?
A: The SPAS011 occupies one standard slot in the ADVANT S100 or S400 I/O subrack. No additional DIN rail space or panel cutout is required. The module is hot-swappable in most ADVANT OCS configurations, allowing replacement during a brief process hold without a full system shutdown.

Q: How do I verify the module is functioning correctly after installation?
A: Use the ABB Master engineering tool or Advant Builder to perform a channel-by-channel output test. Apply a known load to each output channel and verify the measured current or voltage against the commanded setpoint. All 8 channels should be verified before returning the loop to automatic control.

Q: What if my ADVANT OCS rack has mixed SPAS and SPAI modules?
A: Mixed I/O racks are standard in ADVANT OCS installations. The SPAS011 replacement does not affect adjacent SPAI110 analog input modules or SPDI110 digital input modules. Each module operates independently on the backplane. Ensure the rack’s SPSU power supply is not overloaded after the swap.

Warranty Assurance

Every ABB SPAS011 unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Our pre-shipment testing protocol includes functional verification of all 8 analog output channels, backplane connector inspection, and firmware version confirmation. Units that do not pass our outgoing quality check are not shipped.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund within the warranty period. Our technical support team is available to assist with installation questions, compatibility verification, and commissioning guidance. We understand that industrial control system downtime is measured in production losses, not inconvenience — our response SLA for warranty cases is 24 hours.

For procurement teams managing multi-site ADVANT OCS installations, we offer blanket order arrangements with reserved stock allocation, ensuring that replacement modules are available on demand without lead time uncertainty. Contact our team to discuss volume pricing and consignment stock options.

All units are shipped with full export documentation, including commercial invoice, packing list, and certificate of origin (China). Express shipping via DHL, FedEx, or UPS is available to all major industrial markets. Standard lead time from Xiamen warehouse is 3–7 business days for in-stock units.
