ABB SDCS-PIN-51-COAT 3ADT220090R0006 Original Industrial Spare DCS800 Compatible: System Stability & Industrial Spare Maintenance Value

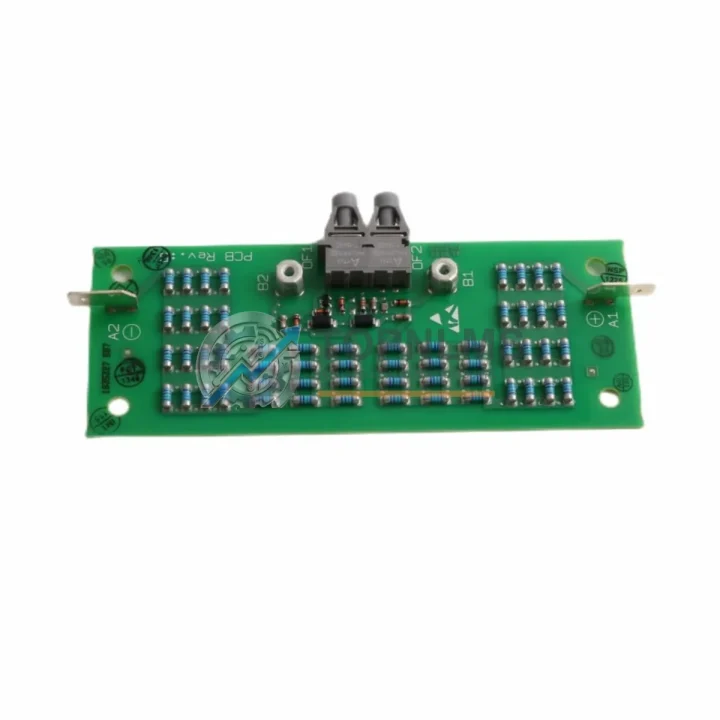

The ABB SDCS-PIN-51-COAT (Part No. 3ADT220090R0006) is an original conformal-coated measurement card engineered specifically for the ABB DCS800 series DC drive platform. In industrial environments where DC motor control is mission-critical — from paper mills and steel rolling lines to mining conveyors and marine propulsion systems — the integrity of the drive’s measurement circuitry directly determines uptime, process quality, and personnel safety. This card handles armature current and voltage feedback, providing the DCS800 controller with the precise real-time data it needs to regulate motor torque and speed with accuracy. The conformal coating (COAT variant) adds a critical layer of protection against humidity, condensation, dust, and corrosive atmospheres, making it the preferred choice for harsh industrial installations.

Sourced directly from ABB’s authorized supply chain and verified against OEM specifications, every unit stocked at TOPNLMS undergoes incoming inspection before dispatch. Whether you are managing a planned overhaul, responding to an unscheduled drive fault, or building a strategic spare parts buffer for a multi-drive installation, the SDCS-PIN-51-COAT is a direct, plug-in replacement that restores full DCS800 functionality without firmware reconfiguration or parameter re-entry.

Critical Technical Specs

Preventive Maintenance Strategy

A drive fault on a DCS800 unit rarely originates from a single failed component in isolation. Experienced maintenance engineers know that when a measurement card such as the SDCS-PIN-51-COAT shows signs of degradation — erratic speed feedback, overcurrent trips without load change, or intermittent armature voltage readings — the surrounding control architecture deserves simultaneous inspection. During a planned shutdown or corrective maintenance window, it is best practice to audit the complete drive control stack rather than replace only the faulted board.

Begin with the SDCS-CON-F (DCS800 Main Control Board), which processes all feedback signals from the measurement card. A degraded control board can mask or amplify measurement card faults, leading to misdiagnosis. Alongside it, inspect the SDCS-POW-F (Power Supply Board) — unstable DC rail voltages are a leading cause of premature measurement card failure and should be verified with a calibrated multimeter before the new SDCS-PIN-51-COAT is installed.

The SDCS-FEX-2 (Field Excitation Module) operates in close electrical relationship with the armature measurement circuit. If field current regulation is erratic, the armature feedback loop is placed under abnormal stress. Similarly, the SDCS-IOB-3 (I/O Extension Board) should be checked for loose terminal connections and oxidized contacts, as poor signal integrity at the I/O layer can produce false measurement readings that are incorrectly attributed to the measurement card itself.

Do not overlook the SDCS-COM-8 (PROFIBUS Communication Module) or equivalent fieldbus adapter fitted to your DCS800 unit. Communication faults between the drive and the PLC or DCS supervisory layer can trigger protective shutdowns that appear to originate from the measurement circuit. Verifying the communication module’s firmware version and bus termination status takes only minutes but can eliminate a significant diagnostic dead end.

At the cabinet level, inspect the DC bus fuse assemblies and semiconductor fuses protecting the drive’s thyristor bridge. A partially blown fuse creates asymmetric current waveforms that the SDCS-PIN-51-COAT must process, accelerating wear on the measurement circuitry. Replace any fuse showing signs of thermal discoloration. Also check the snubber capacitor network on the thyristor assembly — degraded snubbers increase voltage transients that stress the measurement card’s analog front end.

For installations in humid or chemically aggressive environments, the cabinet door gaskets, anti-condensation heaters, and ventilation filter mats should be inspected at the same interval as the measurement card. Even with conformal coating, sustained exposure to condensation accelerates PCB degradation. Replacing filter mats and verifying heater operation costs a fraction of an unplanned drive replacement.

Finally, review the encoder or tachometer feedback wiring connected to the DCS800’s speed feedback input. Shielding breaks, ground loops, or connector corrosion in the speed feedback circuit produce noise that the measurement card must filter, reducing its effective service life. A full cable inspection from the motor terminal box to the drive cabinet, including the SDCS-PIN-48 pulse encoder interface card if fitted, rounds out a comprehensive preventive maintenance visit.

Strategic Replacement Solutions

The DCS800 platform has been in service across global industries for over two decades, and many installations continue to operate legacy configurations where the original measurement cards are no longer available through standard distribution channels. The SDCS-PIN-51-COAT 3ADT220090R0006 is a direct OEM replacement that eliminates the need for drive parameter reconfiguration, third-party adaptation kits, or firmware updates — it installs in the same slot, uses the same connector pinout, and is recognized immediately by the DCS800 control software.

For maintenance teams managing aging DC drive fleets, the strategic value of stocking one or two SDCS-PIN-51-COAT units on the shelf is significant. A measurement card failure that triggers an unplanned production stop can cost tens of thousands of dollars per hour in lost output. With a spare on hand, mean time to repair (MTTR) is reduced from days — the typical lead time for emergency procurement — to under an hour. This is particularly relevant for continuous-process industries such as pulp and paper, metals, and chemical processing, where a single drive controls a critical process stage with no bypass capability.

The conformal coating variant is strongly recommended as the standard stocking choice even for installations in climate-controlled environments. The marginal cost difference over the non-coated SDCS-PIN-51 is negligible compared to the additional protection it provides against the humidity spikes and airborne contaminants that occur during maintenance activities, cabinet door openings, and seasonal temperature swings.

Support FAQ

Q1: Is the SDCS-PIN-51-COAT 3ADT220090R0006 compatible with all DCS800 drive sizes?
The SDCS-PIN-51-COAT is designed for the ABB DCS800 series and is compatible across the standard DCS800 drive range where the SDCS-PIN-51 measurement card is specified. Always cross-reference your drive’s hardware manual or the existing card’s part number label before ordering. If you are unsure of compatibility for your specific DCS800 frame size or software version, contact our technical team at [email protected] with your drive nameplate data.

Q2: What pre-shipment testing is performed on each unit?
Every SDCS-PIN-51-COAT unit is visually inspected for PCB integrity, connector condition, and conformal coating coverage before dispatch. Functional electrical verification is performed where test equipment is available. Units that do not pass inspection are quarantined and not shipped. All shipped units are covered by a 12-month warranty from the date of shipment.

Q3: How should I verify the card is functioning correctly after installation?
After installation, power up the DCS800 drive in a no-load condition and monitor the armature current and voltage feedback values via the drive’s keypad or commissioning tool (DriveWindow or DriveStudio). The feedback readings should be stable and consistent with the motor’s no-load characteristics. If the drive generates a measurement-related fault code immediately after installation, verify connector seating and check that the drive firmware version is compatible with the SDCS-PIN-51-COAT hardware revision.

Q4: What is your recommended spare parts stocking strategy for DCS800 installations?
