ABB SDCS-PIN-48-COAT 3ADT220090R0043 DCS800 Replacement

Product Overview

ABB SDCS-PIN-48-COAT 3ADT220090R0043 DCS800 Replacement & Upgrade Solution

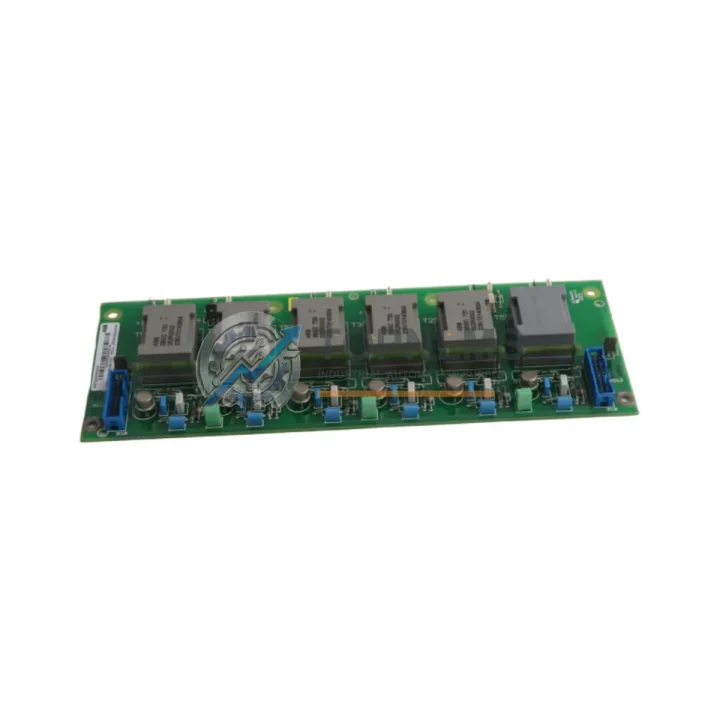

The ABB SDCS-PIN-48-COAT (part number 3ADT220090R0043) is a DC Drive Power Interface Board engineered for the ABB DCS800 series DC drive platform. As legacy DCS400, DCS500, and earlier DCS600 series drives reach end-of-life or become increasingly difficult to source, plant engineers and procurement teams are actively migrating their motor control infrastructure to the DCS800 architecture. The SDCS-PIN-48-COAT serves as a critical power interface layer within this migration path, bridging the gap between the drive’s control electronics and the power conversion stage.

This board is designed to operate within the DCS800 modular drive cabinet, interfacing directly with the SDCS-CON-4 control board and the SDCS-POW-4 power supply board. When replacing a failed or obsolete power interface board from an earlier DCS series, engineers will find that the SDCS-PIN-48-COAT maintains backward-compatible connector pinouts for standard 48V DC bus configurations, significantly reducing rewiring effort during a panel retrofit. The conformal coating (COAT suffix) provides enhanced protection against humidity, dust, and condensation — a key advantage in factory environments where older uncoated boards have historically suffered from corrosion-related failures.

During a typical DCS800 upgrade project, the SDCS-PIN-48-COAT is installed alongside the SDCS-CON-4 control board, which handles the closed-loop speed and current regulation via SDCS firmware. Engineers migrating from DCS500B or DCS600 platforms will note that the DCS800 system uses a unified SDCS backplane architecture, meaning the SDCS-PIN-48-COAT slots into the same physical rack space as the SDCS-CON-4 and SDCS-POW-4 without requiring a new cabinet frame in most standard 400–690V AC input configurations. This dramatically reduces installation downtime — a critical factor in continuous-process industries such as paper mills, steel rolling lines, and mining conveyors.

From a communications and programming perspective, the DCS800 platform supports PROFIBUS-DP, Modbus RTU, and DeviceNet via optional SDCS fieldbus adapter modules. When migrating from a legacy DCS500 system that used SDCS-FEX-2 field excitation boards or SDCS-AMC-DC-1 control cards, the new SDCS-PIN-48-COAT integrates cleanly into the updated drive topology without requiring changes to the PLC program logic at the field device level — provided the drive parameters are correctly mapped using DriveWindow Light or Drive Composer Pro software. This means your existing Siemens S7-300 or Allen-Bradley ControlLogix PLC programs communicating over PROFIBUS can continue to operate without modification after the drive board replacement.

For sites running multiple DCS800 drives in a common DC bus configuration, the SDCS-PIN-48-COAT supports the standard ABB common DC bus topology, allowing regenerative braking energy to be shared across the bus. This is particularly relevant in crane and hoist applications where the SDCS-CON-4 and SDCS-PIN-48-COAT combination replaces older DCS400 or DCS500 units that lacked regenerative capability. The physical footprint of the SDCS-PIN-48-COAT is consistent with the DCS800 standard module dimensions, ensuring compatibility with existing DIN rail mounting arrangements and cable duct routing inside the control cabinet.

Procurement teams should note that the SDCS-PIN-48-COAT is stocked and tested prior to shipment from our Xiamen warehouse. Each unit undergoes functional verification against ABB DCS800 drive test bench parameters before dispatch. We maintain buffer stock to support urgent replacement orders, with standard lead times of 3–7 business days for international air freight and 1–3 business days for domestic express delivery within China. All units are shipped with anti-static packaging and include a detailed inspection report.

Compatibility Comparison Table

Seamless Upgrade Solutions

A complete DCS800 drive modernization project typically involves more than a single board swap. When replacing the SDCS-PIN-48-COAT as part of a broader system upgrade, engineers commonly source the SDCS-CON-4 control board to handle closed-loop regulation, and the SDCS-POW-4 power supply board to provide stable 24V DC logic power to the drive electronics. For field excitation control in separately excited DC motor applications, the SDCS-FEX-2 field excitation board integrates directly into the DCS800 backplane alongside the SDCS-PIN-48-COAT.

Communication integration is handled via the RDCO-03 or RDCO-04 DDCS fiber optic communication modules, which connect the DCS800 drive to ABB’s ACS800 or ACS880 inverter systems in multi-drive architectures. For sites requiring PROFIBUS-DP connectivity to a Siemens S7 PLC or a Rockwell ControlLogix system, the RPBA-01 PROFIBUS adapter module mounts to the drive’s option slot and requires no changes to the SDCS-PIN-48-COAT installation. Panel builders retrofitting older cabinets will also typically replace the SDCS-AMC-DC-1 analog and digital I/O expansion card to gain additional process signal inputs compatible with the DCS800 firmware.

For HMI integration, the DCS800 platform supports ABB’s CDP312R control panel, which provides local parameter access and drive diagnostics without a laptop connection — useful during commissioning and field troubleshooting. Signal isolation between the drive’s analog outputs and the plant DCS is commonly achieved using Phoenix Contact MINI MCR or equivalent DIN-rail signal isolators, ensuring clean 4–20mA or 0–10V process signals reach the control room without ground loop interference. Finally, for sites using ABB’s ACS800 or ACS880 AC drive systems in parallel with the DCS800 DC drive, the SDCS-PIN-48-COAT’s conformal coating specification aligns with the environmental protection class used across ABB’s industrial drive product family, simplifying spare parts standardization across the plant.

Retrofit Guidance FAQ

Q: Can the SDCS-PIN-48-COAT replace an SDCS-PIN-41 or SDCS-PIN-51 from a DCS500 system?
A: The SDCS-PIN-48-COAT is designed for the DCS800 platform and is not a direct plug-in replacement for DCS500 series boards. A full DCS800 drive module set (including SDCS-CON-4 and SDCS-POW-4) is required for a complete platform migration. Wiring adaptation at the motor terminal block and field excitation circuit is typically required.

Q: Will my existing PROFIBUS PLC program need to be rewritten?
A: In most cases, no. The DCS800 with RPBA-01 PROFIBUS adapter uses the same PPO message types as the DCS500 PROFIBUS interface. Drive parameter mapping (speed reference, current limit, status word) should be verified in DriveWindow Light before go-live, but the PLC function block logic typically requires only minor parameter address adjustments.

Q: Does the conformal coating affect heat dissipation or board replacement procedures?
A: The conformal coating on the SDCS-PIN-48-COAT is applied to the PCB surface only and does not affect the board’s thermal interface with the drive chassis. Standard ESD precautions apply during installation. No special tools are required beyond a standard Torx screwdriver for the backplane connector retention screws.

Q: What is the physical installation space requirement?
A: The SDCS-PIN-48-COAT occupies a standard DCS800 module slot within the drive’s internal backplane. Cabinet depth requirements follow the DCS800 frame size specifications (Frame D–F for most industrial applications). No additional DIN rail space is required beyond the existing DCS800 drive enclosure.

Q: How do I verify the board is functioning correctly after installation?
A: After installation, use DriveWindow Light or Drive Composer Pro to perform a drive identification run. Monitor the DC bus voltage feedback and gate pulse signals via the drive’s diagnostic parameters. ABB recommends a no-load test run at 10% rated speed before connecting the motor load.

Warranty Assurance

Every SDCS-PIN-48-COAT (3ADT220090R0043) unit supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each board is tested on an ABB DCS800 drive test bench to verify power interface signal integrity, backplane connector continuity, and conformal coating integrity. Units that do not pass functional verification are quarantined and not shipped.

In the event of a warranty claim, TOPNLMS provides a replacement unit dispatch within 5 business days of receiving the defective board. Our after-sales team is available via email and phone to support installation troubleshooting, parameter configuration guidance, and compatibility verification for your specific DCS800 drive frame size and application. We maintain a dedicated stock buffer for SDCS-PIN-48-COAT to ensure replacement availability throughout the warranty period.

For urgent plant breakdown situations, we offer priority express shipping with same-day dispatch for orders confirmed before 14:00 CST. Customs documentation, including commercial invoice, packing list, and HS code declaration, is prepared for all international shipments to minimize clearance delays.
