ABB SDCS-PIN-48 3BSE004939R0002 Replacement for DCS800 — Seamless Transition & Compatible Upgrade

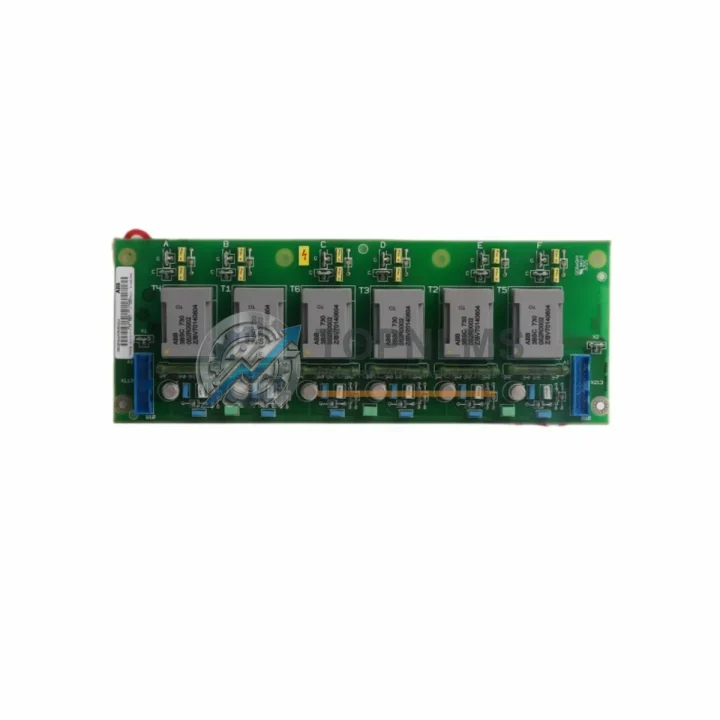

The ABB SDCS-PIN-48 (part number 3BSE004939R0002) is a critical pulse transformer board — also referred to as a gate firing card — used within the ABB DCS800 series DC drive platform. As legacy DCS500 and earlier DCS800 configurations age out of active production support, facilities running DC motor control systems face increasing pressure to source reliable replacement boards that maintain full electrical and functional compatibility without requiring a complete drive overhaul. This product page is designed to support engineers and procurement teams navigating that exact transition.

The SDCS-PIN-48 3BSE004939R0002 serves as the gate pulse isolation and distribution interface between the SDCS-CON-4 control board and the thyristor firing circuits within the DCS800 power bridge. Its role is to translate low-voltage control signals into isolated gate pulses that trigger the SCR (thyristor) devices responsible for DC bus voltage regulation. When this board fails or degrades, the drive typically faults on gate firing errors, phase loss alarms, or SCR overcurrent trips — all of which result in unplanned motor downtime in critical production environments.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful DCS800 gate firing board replacement rarely involves a single component in isolation. In most retrofit scenarios, the SDCS-PIN-48 3BSE004939R0002 is replaced alongside or in coordination with several other boards and modules within the same drive cabinet.

The most common companion replacement is the SDCS-CON-4 3BSE006249R1 control board, which is the primary logic and regulation board that generates the firing angle commands sent to the SDCS-PIN-48. If the CON-4 board has experienced firmware corruption or analog output degradation, replacing only the pulse transformer board will not resolve the underlying fault. Engineers should verify CON-4 output signal integrity before commissioning the new PIN-48.

In drives where the power supply section has also aged, the SDCS-POW-4 3BSE006250R1 power supply board is frequently replaced in the same service window. This board provides the regulated DC voltages required by both the CON-4 and PIN-48 boards, and a failing POW-4 can cause intermittent gate firing faults that mimic a defective pulse transformer board.

For facilities migrating from DCS500B to DCS800 architecture, the transition often involves replacing the older SDCS-PIN-41 with the SDCS-PIN-48 while simultaneously upgrading the control board from SDCS-CON-2 to SDCS-CON-4. This combination upgrade allows the drive to support DDCS fiber-optic communication via the SDCS-COM-8 adapter board, enabling integration with ABB’s AC800M DCS platform or third-party PROFIBUS DP masters without rewiring the field I/O.

Where the existing control cabinet uses an SDCS-AMC-DC3 application macro controller for speed regulation, the PIN-48 replacement must be validated against the AMC firmware version to ensure firing angle synchronization remains within specification. In multi-drive systems using a common DC bus, the SDCS-DSL-4 digital speed link board may also require reconfiguration after the gate firing board is replaced to maintain master-follower synchronization.

For sites running ABB Panel Builder or DriveWindow Light for drive parameterization, the NDPA-01 or NPBA-12 PROFIBUS adapter may be present in the drive’s option slot. These communication adapters are unaffected by the PIN-48 replacement but should be noted in the service record. Similarly, if the drive cabinet includes an AINT-02 or AINT-14 inverter interface board for regenerative braking control, those boards operate independently of the gate firing circuit and do not require replacement during a PIN-48 swap.

In summary, the SDCS-PIN-48 3BSE004939R0002 is a direct drop-in replacement for the gate firing function in DCS800 drives. When combined with a verified SDCS-CON-4 and SDCS-POW-4, the complete control section of the drive can be restored to factory specification without modifying field wiring, motor parameters, or communication network topology.

Retrofit Guidance FAQ

Q: Is the SDCS-PIN-48 3BSE004939R0002 a direct replacement for the SDCS-PIN-41?
A: Yes, in most DCS800 frame sizes. The PIN-48 uses the same 6-channel transformer-coupled gate pulse architecture and the same connector pinout as the PIN-41. No wiring changes are required. Verify the drive firmware version supports the R0002 revision before installation.

Q: Can I replace the PIN-48 without replacing the SDCS-CON-4?
A: Yes, provided the CON-4 is functioning correctly. Use DriveWindow or the drive’s keypad to confirm that the firing angle reference signal is within normal range before installing the new board. If the CON-4 is also suspect, replace both boards in the same service window to avoid repeat downtime.

Q: Does this board support PROFIBUS or DDCS communication?
A: The SDCS-PIN-48 itself does not handle communication protocols — it is a hardware firing interface only. Communication is managed by the SDCS-CON-4 and optional adapter boards such as the SDCS-COM-8 or NPBA-12. Replacing the PIN-48 has no effect on the drive’s communication configuration.

Q: What are the physical installation requirements?
A: The SDCS-PIN-48 3BSE004939R0002 mounts directly to the DCS800 power board chassis using the original standoffs and connector. No additional mounting hardware is required. Ensure the drive is fully de-energized and the DC bus capacitors are discharged before handling the board.

Q: How do I verify the replacement was successful?
A: After installation, power up the drive in a no-load condition and monitor for gate firing fault codes (F507, F508, or equivalent). Use DriveWindow to observe the firing angle feedback and confirm symmetrical pulse output across all six channels. Run the drive at low speed under load before returning to full production.

Warranty Assurance

Every ABB SDCS-PIN-48 3BSE004939R0002 shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to shipment, each board undergoes functional verification including gate pulse output testing, isolation resistance measurement, and visual inspection for component damage or counterfeit indicators.

If a board is found to be defective on arrival (DOA) or fails within the warranty period under normal operating conditions, TOPNLMS will provide a replacement unit or full refund. Our technical support team is available to assist with installation verification, fault code interpretation, and compatibility confirmation before and after purchase.

Orders are typically processed and dispatched within 1–3 business days from our Xiamen warehouse. Express international shipping is available to most destinations. All shipments include a packing list, test record, and certificate of conformity where applicable.

For procurement inquiries, bulk pricing, or urgent replacement requests, contact our team directly.
