ABB SDCS-PIN-205B-COAT 3ADT220090R0035 DCS800 Replacement: Seamless Transition from Legacy DC Drive Systems

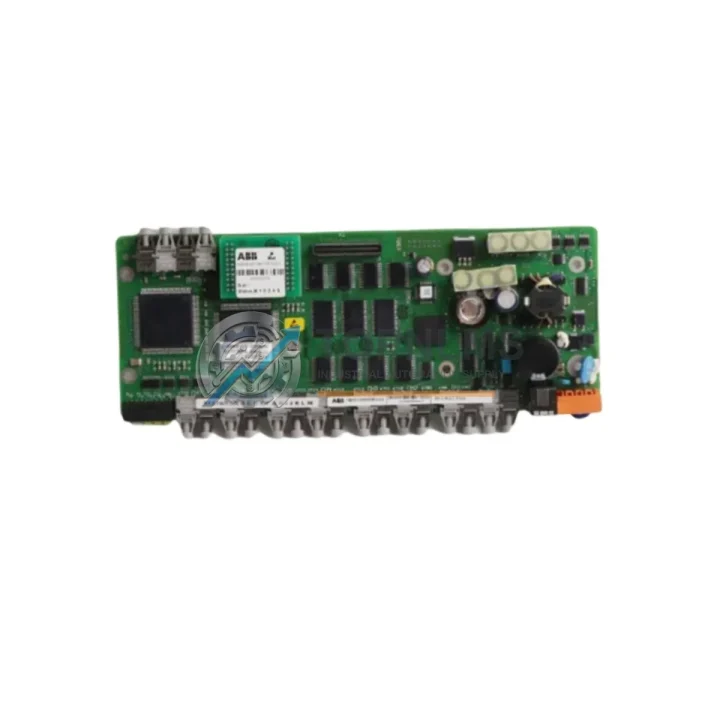

The ABB SDCS-PIN-205B-COAT (part number 3ADT220090R0035) is the factory-original pulse interface board designed for the ABB DCS800 series DC drive platform. As legacy DC drive installations age and original boards reach end-of-life, plant engineers and maintenance teams face increasing pressure to source verified replacement components that preserve existing wiring infrastructure, control architecture, and commissioning investments. This listing provides a direct, drop-in replacement for the SDCS-PIN-205B-COAT 3ADT220090R0035, enabling a smooth migration path without requiring full drive replacement or extensive re-engineering.

The SDCS-PIN-205B-COAT serves as the pulse encoder interface within the DCS800 drive’s feedback chain. It receives incremental encoder signals from the motor shaft and conditions them for the main control board — typically the SDCS-CON-F or SDCS-CON-G — which uses this data for closed-loop speed regulation. The conformal coating (COAT suffix) provides enhanced protection against humidity, dust, and airborne contaminants, making it suitable for demanding industrial environments such as steel mills, paper machines, extruder lines, and crane drive systems.

When replacing a failed or degraded SDCS-PIN-205B-COAT, the physical installation is straightforward: the board mounts directly onto the DCS800 drive’s internal backplane connector without modification. Existing encoder wiring — typically routed through the drive’s terminal block or D-sub connector — connects identically to the replacement board. No firmware changes are required on the SDCS-CON control board, as the pulse interface board operates transparently within the drive’s signal path. Engineers migrating from an earlier SDCS-PIN-205A variant should verify encoder voltage compatibility (5 V or 15 V HTL/TTL) before installation, as the 205B revision introduced refined input threshold tolerances.

For sites running multiple DCS800 drives in a coordinated line — for example, a multi-stand rolling mill or a winder/unwinder pair — it is common to simultaneously audit and replace the SDCS-FEX-2 field excitation board and the SDCS-DSL-4 serial link board alongside the pulse interface board. These components share the same drive generation and are subject to similar wear cycles. Proactive replacement during a planned maintenance window significantly reduces the risk of unplanned downtime caused by cascading board failures.

Communication architecture is unaffected by this replacement. The DCS800 drive’s fieldbus connectivity — whether via RDCO-02 DDCS fiber-optic adapter, RPBA-01 PROFIBUS adapter, or RCAN-01 CANopen adapter — remains fully operational. The SDCS-PIN-205B-COAT interfaces exclusively with the encoder feedback path and does not interact with the fieldbus layer, so no changes to PLC programs, PROFIBUS node addresses, or drive parameter sets (such as Group 50 encoder parameters in DriveWindow) are required beyond a standard encoder feedback verification after installation.

Sites transitioning from older ABB DCS500 or Mentor II DC drive platforms to the DCS800 series will find that the DCS800’s modular board architecture — including the SDCS-PIN-205B-COAT — supports a phased migration strategy. Rather than replacing the entire drive cabinet, maintenance teams can upgrade individual drive units while retaining existing motor windings, field supply transformers, and control cabinet wiring trays. The SDCS-PIN-205B-COAT’s compatibility with standard incremental encoders (1024 PPR, 2048 PPR) means that existing motor-mounted encoders typically do not require replacement during the drive upgrade.

For applications where the DCS800 drive interfaces with a higher-level control system — such as an ABB AC800M DCS, a Siemens S7-400 PLC, or a Rockwell ControlLogix system — the replacement of the SDCS-PIN-205B-COAT has no impact on the supervisory control layer. Speed reference signals, torque commands, and status feedback continue to flow through the drive’s existing analog I/O terminals or fieldbus interface without reconfiguration. This isolation of the encoder feedback board from the control interface layer is a key advantage of the DCS800’s modular design and simplifies the replacement process for multi-vendor control environments.

All units supplied through TOPNLMS undergo pre-shipment functional inspection, including visual inspection of the conformal coating integrity, connector pin condition, and component-level verification. Each board is individually packaged in anti-static ESD shielding with foam cushioning to prevent transit damage. Shipment is available from our Xiamen warehouse via DHL Express, FedEx International Priority, or sea freight consolidation for bulk orders. Typical lead time for in-stock units is 3–5 business days to most international destinations.

Compatibility Comparison Table

Seamless Upgrade Solutions

A complete DCS800 drive restoration or migration project typically involves more than a single board replacement. During the same maintenance window, engineers commonly address the SDCS-CON-F main control board if parameter memory corruption is suspected, or the SDCS-FEX-2 field excitation controller if field current regulation has become unstable. The SDCS-DSL-4 serial link board is frequently replaced alongside the pulse interface board on drives that use DDCS fiber-optic communication to an AC800M or Symphony Plus DCS.

For drives equipped with optional fieldbus adapters, the RPBA-01 PROFIBUS-DP adapter and RCAN-01 CANopen adapter are common companion components that may require inspection or replacement during a full drive refurbishment. On the power side, the SDCS-POW-4 power supply board provides the internal DC voltages that all control boards — including the SDCS-PIN-205B-COAT — depend on; a failing power supply board can cause intermittent encoder feedback errors that are misdiagnosed as pulse interface board failures.

In cabinet-level migration projects, the DCS800’s control wiring often interfaces with external signal conditioning components such as Phoenix Contact or Weidmüller signal isolators, which decouple encoder signals from ground loops in long cable runs. Replacing the SDCS-PIN-205B-COAT is also an appropriate time to inspect the motor-side encoder cable shielding and the encoder’s mechanical coupling, as these are common sources of feedback noise that can mask the improvement achieved by a board replacement. For sites upgrading from DCS500 to DCS800, the SDCS-PIN-205B-COAT’s compatibility with standard 24 V HTL encoders means that existing encoder installations on DC motors can typically be retained without modification.

Retrofit Guidance FAQ

Q: Do I need to re-enter drive parameters after replacing the SDCS-PIN-205B-COAT?
A: No full re-commissioning is required. However, it is recommended to verify Group 50 encoder parameters (encoder pulses per revolution, encoder voltage level) using DriveWindow Light or the drive’s keypad after installation to confirm the feedback chain is operating correctly.

Q: Is the wiring to the encoder connector identical between the 205A and 205B revisions?
A: Yes. The D-sub encoder connector pinout is unchanged between revisions. Existing encoder cables can be reconnected without modification.

Q: Will replacing this board affect my PROFIBUS or DDCS communication?
A: No. The SDCS-PIN-205B-COAT is isolated from the fieldbus layer. PROFIBUS node addresses, DDCS node numbers, and all communication parameters remain unaffected.

Q: Can this board be used in a DCS800 drive that was previously running a non-coated SDCS-PIN-205B?
A: Yes. The conformal coating is an environmental protection feature only and does not affect electrical or functional compatibility. The coated and non-coated variants are functionally interchangeable.

Q: What encoder types are supported?
A: The SDCS-PIN-205B-COAT supports standard incremental encoders with TTL (5 V) or HTL (15–24 V) output signals. Typical resolutions used with DCS800 drives range from 1024 to 4096 PPR.

Q: How much physical space does the replacement board require?
A: The SDCS-PIN-205B-COAT is a plug-in board that occupies the same slot as the original. No cabinet modification, additional DIN rail space, or wiring tray changes are required.

Warranty Assurance

Every SDCS-PIN-205B-COAT 3ADT220090R0035 supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Our pre-shipment inspection process includes visual examination of the conformal coating, connector integrity check, and component-level verification to ensure the board meets ABB’s original manufacturing specifications before dispatch.

In the event of a warranty claim, TOPNLMS provides direct replacement support. Defective units are collected and a verified replacement is dispatched within 5 business days of claim confirmation. Our after-sales team is reachable via email at [email protected] or by phone at +86 18359293191 for technical pre-sales consultation, installation guidance, and post-delivery support.

Bulk procurement inquiries — including requests for multiple units, mixed DCS800 board kits, or scheduled delivery programs — are welcome. Volume pricing and extended warranty terms are available for qualified industrial end-users and system integrators.
