ABB SDCS-IOE-2-COAT Ruggedized I/O Extension Module for Harsh Environments

Product Overview

ABB SDCS-IOE-2-COAT Ruggedized I/O Extension Module: Industrial Resilience for Harsh Environments

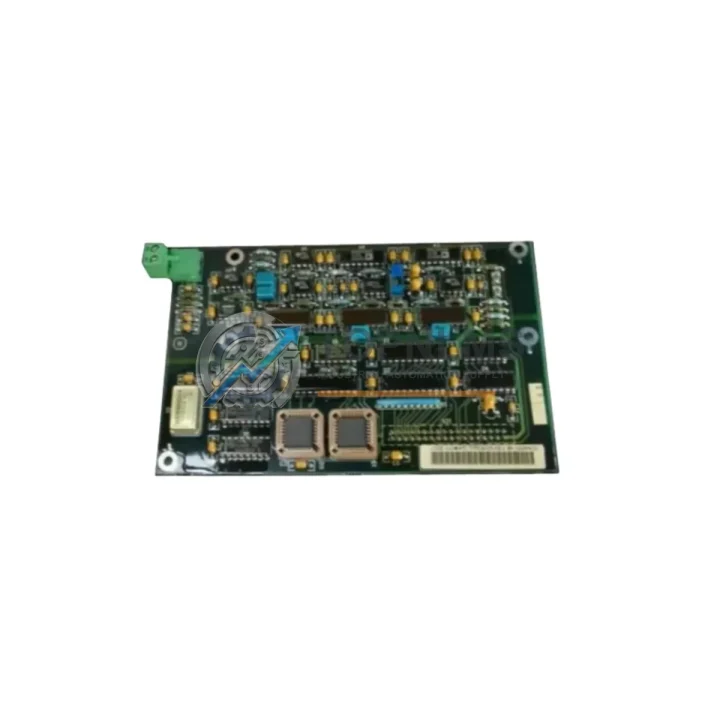

The ABB SDCS-IOE-2-COAT is a conformal-coated I/O extension counter board engineered specifically for the ABB DCS800 series DC drive platform. Designed to operate reliably in the most demanding industrial environments — including high-humidity foundries, dusty mining galleries, vibration-intensive steel mills, and chemically aggressive process plants — this module delivers the signal integrity and long-term stability that mission-critical automation systems demand.

Conformal coating is not a cosmetic feature; it is a fundamental engineering decision. The SDCS-IOE-2-COAT’s PCB is protected by a dielectric polymer layer that seals copper traces, solder joints, and passive components against moisture ingress, condensation cycling, airborne particulates, and corrosive gases such as H₂S and SO₂ commonly found in oil refinery and wastewater treatment environments. This protection directly extends mean time between failures (MTBF) and reduces unplanned downtime on continuous production lines where a single drive fault can cascade into a full-line stoppage.

Within the DCS800 drive architecture, the SDCS-IOE-2-COAT expands the drive’s I/O capability by providing additional digital and counter inputs that interface with encoders, pulse generators, and field sensors. This makes it indispensable in applications requiring precise speed feedback, position counting, or multi-axis coordination — such as winding machines, hoists, extruders, and rolling mills. The board communicates natively with the DCS800 control board (SDCS-CON-4 or SDCS-CON-F) via the drive’s internal backplane, ensuring zero-latency data exchange and deterministic control loop performance.

In high-vibration environments such as compressor rooms, mining conveyors, and offshore platforms, the conformal coating also acts as a mechanical damper for micro-components, reducing the risk of solder fatigue and trace cracking that standard boards experience over extended duty cycles. When paired with the SDCS-AMC-DC-COAT (the conformal-coated AMC board) and the SDCS-FEX-2 field excitation module, the SDCS-IOE-2-COAT forms a fully ruggedized DCS800 drive stack capable of operating continuously in ambient temperatures up to 55 °C without derating.

For system integrators building control cabinets in petrochemical or pharmaceutical plants, the SDCS-IOE-2-COAT pairs seamlessly with ABB’s NINT-41C PROFIBUS adapter module and the RDCO-03 DriveWindow communication module, enabling full remote diagnostics and parameter management over industrial fieldbus networks. This is particularly valuable in hazardous area installations where physical access to the drive cabinet is restricted by safety protocols.

Replacement and spare-parts planning is a critical concern for plant engineers managing aging DCS800 fleets. The SDCS-IOE-2-COAT is a direct drop-in replacement for the standard SDCS-IOE-2 (non-coated variant), requiring no firmware changes or parameter re-mapping. This backward compatibility means maintenance teams can upgrade their spare-parts inventory to the coated variant as a proactive measure, gaining enhanced environmental protection without any engineering rework. Alongside the SDCS-PIN-51 pulse encoder interface board and the SDCS-DSL-4 digital serial link board, the SDCS-IOE-2-COAT completes the I/O and communications ecosystem of the DCS800 platform.

In power generation and water treatment facilities, where drives operate in partially enclosed pump houses or outdoor switchgear rooms subject to seasonal humidity swings, the conformal coating provides the margin of safety that standard industrial-grade boards cannot. The SDCS-IOE-2-COAT has been validated for use alongside ABB’s AINT-02C inverter interface board and the SDCS-POW-4 power supply board, ensuring that the entire drive’s control electronics maintain consistent performance across the full operating temperature range of -10 °C to +55 °C.

Rugged Specifications Table

Comprehensive Protection Solutions

The SDCS-IOE-2-COAT does not operate in isolation — it is one component in a layered protection and control architecture. In a fully specified DCS800 drive cabinet, it works in concert with the SDCS-CON-4 main control board, which handles the core speed and torque regulation loops, and the SDCS-POW-4 internal power supply board, which provides regulated DC rails to all control electronics. For field excitation in separately excited DC motor applications, the SDCS-FEX-2 field excitation module interfaces directly with the DCS800 platform and benefits from the same conformal-coated board ecosystem.

On the communications side, the NINT-41C PROFIBUS DP adapter and the RDCO-03 DriveWindow Link module extend the drive’s connectivity to plant-level SCADA and DCS systems, enabling real-time monitoring of I/O states reported through the SDCS-IOE-2-COAT. For installations requiring pulse encoder feedback — common in winding, unwinding, and positioning applications — the SDCS-PIN-51 pulse encoder interface board complements the counter inputs of the SDCS-IOE-2-COAT to deliver closed-loop position accuracy. Safety-critical installations may also incorporate ABB’s AINT-02C inverter interface board to ensure safe torque-off (STO) compliance across the drive system.

From a cabinet-level perspective, the SDCS-IOE-2-COAT is typically installed alongside industrial-grade terminal blocks, shielded signal cables, and surge protection devices to form a complete, EMI-hardened I/O subsystem. This holistic approach to cabinet design — combining conformal-coated boards with proper cable routing, grounding, and shielding — is the standard recommended by ABB for installations in Zone 2 hazardous areas and high-interference industrial environments.

Application in Critical Infrastructure

In oil and gas upstream and midstream facilities, DC drives controlling pump motors and compressors are exposed to H₂S-laden atmospheres, salt spray, and extreme temperature cycling. The SDCS-IOE-2-COAT’s conformal coating provides the corrosion barrier that keeps the drive’s I/O subsystem operational between scheduled maintenance windows, which may be 12–24 months apart in offshore installations.

In mining and mineral processing, conveyor drives, hoist drives, and crusher drives operate in environments saturated with silica dust, coal dust, and high vibration. The SDCS-IOE-2-COAT’s ruggedized construction ensures that counter inputs tracking conveyor belt speed and load remain accurate even as the surrounding environment degrades standard electronics within months.

In metallurgy and steel production, rolling mill drives and furnace auxiliary drives face radiated heat, electromagnetic interference from high-current bus bars, and mechanical shock from mill stands. The SDCS-IOE-2-COAT maintains signal integrity in these conditions, supporting the precise speed synchronization required between tandem mill stands.

In power generation and utilities, including hydroelectric, thermal, and nuclear auxiliary systems, drives controlling cooling water pumps, feed pumps, and ventilation fans must meet stringent reliability requirements. The SDCS-IOE-2-COAT’s extended environmental tolerance makes it a preferred spare-parts choice for plant engineers who cannot afford drive downtime during peak generation periods.

In water and wastewater treatment, pump drives in wet wells and aeration basins are subject to continuous high humidity and occasional flooding events. The conformal coating on the SDCS-IOE-2-COAT provides the moisture barrier that keeps the drive operational through these conditions, reducing the risk of insulation breakdown and ground faults that can trip the drive and interrupt treatment processes.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is it enforced?
The SDCS-IOE-2-COAT supplied by TOPNLMS carries a 12-month warranty covering manufacturing defects and functional failure under normal operating conditions. If the module fails within the warranty period due to a verified manufacturing or component defect, TOPNLMS will provide a replacement unit or full refund. Warranty claims are processed via email at [email protected] with a fault description and order reference.

Q2: How is each unit tested before shipment?
Every SDCS-IOE-2-COAT unit undergoes a multi-stage inspection process prior to dispatch: visual inspection for physical damage, conformal coating integrity check, functional power-on test, and I/O continuity verification. Units that do not pass all inspection stages are quarantined and not shipped. A test report is available upon request for critical infrastructure procurement.

Q3: Is the SDCS-IOE-2-COAT compatible with all DCS800 variants, and can it replace the non-coated SDCS-IOE-2?
Yes. The SDCS-IOE-2-COAT is a direct functional replacement for the SDCS-IOE-2 across all DCS800 drive variants. No firmware updates, parameter changes, or hardware modifications are required. The conformal coating is an additive protection layer that does not alter the board’s electrical or communication characteristics. Compatibility extends to DCS800-S01, S02, and S03 power ranges.

Q4: Can TOPNLMS support long-term supply for fleet maintenance programs?
Yes. TOPNLMS maintains dedicated stock of DCS800 series spare boards, including the SDCS-IOE-2-COAT, to support plant maintenance programs requiring consistent, long-term supply. For fleet operators managing multiple DCS800 drives, volume pricing and reserved stock arrangements are available. Contact [email protected] or call +86 18359293191 to discuss your maintenance supply requirements.
