ABB SDCS-IOB-3 3BSE004086R1 Ruggedized I/O Module

Product Overview

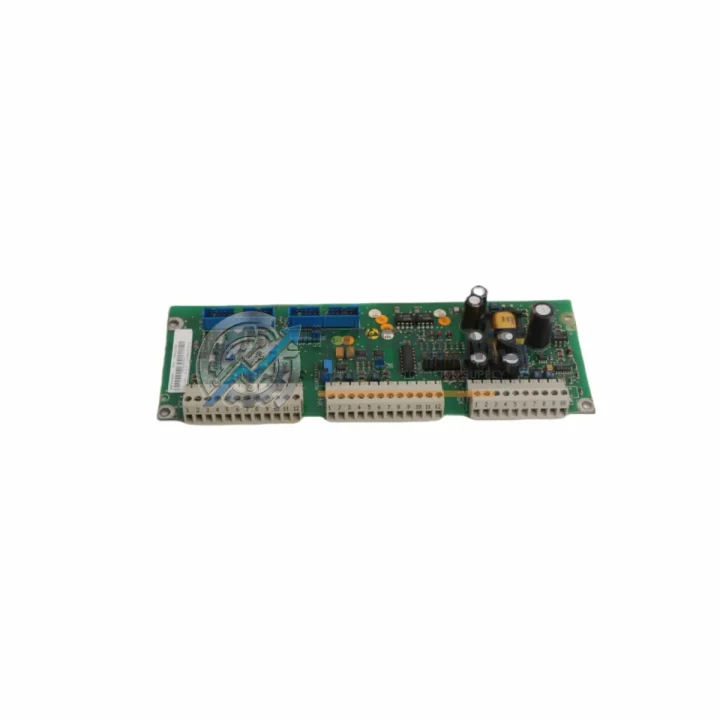

ABB SDCS-IOB-3 3BSE004086R1 Ruggedized I/O Extension Module for Harsh Industrial Environments

The ABB SDCS-IOB-3 (3BSE004086R1) is a precision-engineered I/O extension board designed for the ABB DCS800 series DC drive platform — one of the most widely deployed DC drive architectures in heavy industry worldwide. Built to ABB’s exacting standards for industrial resilience, this module extends the analog and digital I/O capacity of the DCS800 drive system, enabling tighter process control, faster fault response, and seamless integration into demanding automation architectures.

In environments where ambient temperatures fluctuate between −10 °C and +55 °C, where relative humidity can reach 95% non-condensing, where airborne particulates and conductive dust are constant threats, and where electromagnetic interference from variable-frequency drives, large motors, and power switching equipment is unavoidable, the SDCS-IOB-3 continues to perform without compromise. Its conformal-coated PCB, robust connector design, and EMI-shielded signal paths make it a dependable choice for continuous production lines where unplanned downtime is not an option.

Whether installed in a sealed control cabinet on a steel mill floor, a petrochemical processing unit, a water treatment facility, or a mining hoist control room, the SDCS-IOB-3 delivers the signal integrity and I/O expansion that mission-critical DC drive applications demand. For procurement engineers and maintenance managers sourcing verified spare parts, TOPNLMS maintains ready stock of this module with full pre-shipment functional testing and a 12-month warranty from dispatch date.

Rugged Specifications Table

Comprehensive Protection Solutions

The SDCS-IOB-3 is a critical node within the broader ABB DCS800 drive control architecture. In a typical heavy-industry control cabinet, this I/O extension board works in concert with the SDCS-CON-4 main control board, which handles the core speed and current regulation loops of the DC drive. The SDCS-POW-4 power supply board provides regulated internal voltages that keep both the CON-4 and IOB-3 operating within specification even when the incoming supply fluctuates due to grid disturbances or large motor starts.

For applications requiring fieldbus connectivity, the DCS800 platform supports optional communication adapter boards such as the RDCO-03 DDCS fiber-optic link module and the RPBA-01 PROFIBUS-DP adapter, which allow the drive — and by extension the I/O signals routed through the SDCS-IOB-3 — to be fully integrated into a plant-wide DCS or SCADA system. In facilities running ABB’s AC800M distributed control system, the DCS800 drive with its IOB-3 extension can be supervised directly from the controller, enabling coordinated control of multiple drive axes on a single production line.

On the safety and power side, the SDCS-IOB-3 is commonly deployed alongside ABB SACE series circuit breakers and ABB XTCE series contactors within the same Motor Control Center panel, ensuring that I/O signals for emergency stop, drive enable, and fault reset are hardwired through certified safety-rated components. For installations in ATEX or IECEx classified hazardous zones, the I/O signals from the SDCS-IOB-3 are typically routed through Zener barrier or galvanic isolator modules before reaching field instruments, maintaining intrinsic safety integrity throughout the signal chain.

In paper mills and continuous casting lines, the SDCS-IOB-3 is frequently paired with ABB ACS880 series AC drives on auxiliary axes, with the DCS800 handling the main DC motor drive and the IOB-3 providing cross-drive I/O coordination signals. Terminal modules such as the ABB NTAI05 analog input termination unit are used to condition and route field signals before they reach the IOB-3 inputs, ensuring clean, noise-free analog readings even in high-EMI environments. The SDCS-FEX-2 field excitation board is another common companion module in the same DCS800 rack, managing the DC motor field current while the IOB-3 handles process I/O — together they form a complete, tightly integrated drive control solution.

Application in Critical Infrastructure

In oil and gas upstream and midstream facilities, the DCS800 DC drive with SDCS-IOB-3 extension controls pump motors, compressor drives, and wellhead equipment where variable torque control and precise speed regulation are essential for process safety. The I/O extension capability allows operators to monitor additional process variables — pressure, temperature, flow — directly through the drive’s control system, reducing the number of separate I/O modules required in the control cabinet and simplifying the overall system architecture. In these environments, where a single unplanned shutdown can cost tens of thousands of dollars per hour, having a verified spare SDCS-IOB-3 on the shelf is a standard risk-mitigation practice.

In mining applications — particularly hoist drives, conveyor systems, and crusher drives — the SDCS-IOB-3 enables the DCS800 to interface simultaneously with load cells, position encoders, and safety interlocks. The module’s resistance to vibration and shock, combined with its wide operating temperature range, makes it suitable for underground installations where environmental conditions are severe and access for maintenance is limited. Spare parts availability and fast replacement are therefore critical procurement considerations, and TOPNLMS maintains verified stock of the SDCS-IOB-3 to support exactly these scenarios.

In power generation and grid infrastructure, DC excitation systems for large synchronous generators frequently use the DCS800 platform. The SDCS-IOB-3 provides the additional I/O channels needed to interface with AVR (Automatic Voltage Regulator) systems, protection relays, and plant DCS, ensuring that the excitation drive remains fully integrated into the plant’s protection and control hierarchy. Any failure of the I/O extension board in this context can compromise generator voltage regulation, making rapid spare part availability a safety-critical requirement.

In water and wastewater treatment plants, the DCS800 with SDCS-IOB-3 controls large pump motors and aeration blowers. The extended I/O allows the drive to receive signals from level sensors, flow meters, and dissolved oxygen analyzers, enabling energy-optimized pump control strategies that reduce operating costs while maintaining process compliance. The module’s humidity tolerance is particularly relevant in these installations, where condensation and moisture ingress are persistent challenges in pump stations and wet wells.

In metallurgy and steel production, rolling mill main drives and coiler drives built on the DCS800 platform rely on the SDCS-IOB-3 for real-time tension feedback, roll gap position signals, and strip speed synchronization I/O. The module’s ability to handle multiple analog input channels simultaneously — with the signal conditioning and EMI rejection required in a high-power rolling mill environment — makes it indispensable for maintaining product quality and preventing costly cobbles or strip breaks on continuous casting and hot rolling lines.

Security & Quality FAQ

Q1: What warranty does the SDCS-IOB-3 3BSE004086R1 carry?
Every SDCS-IOB-3 supplied by TOPNLMS is covered by a 12-month warranty from the date of dispatch. Each unit undergoes functional testing prior to shipment to verify that all I/O channels, communication interfaces, and power rails meet ABB’s original specification. A test report is available upon request for quality-critical procurement processes.

Q2: How do I verify compatibility with my existing DCS800 drive?
The SDCS-IOB-3 (3BSE004086R1) is compatible with the ABB DCS800 series DC drive across all standard firmware revisions. Compatibility is determined by the drive’s hardware revision and the slot assignment within the control board rack. Our technical team can cross-reference your drive’s nameplate data and existing board configuration to confirm fitment before you place an order. Contact us at [email protected] with your drive serial number and existing board layout.

Q3: Can this module be used as a direct replacement in a running production line?
Yes. The SDCS-IOB-3 is a plug-in replacement for the same board position in the DCS800 control rack. No firmware changes are required on the main drive controller when replacing a like-for-like board. For installations where drive parameters are stored on the SDCS-CON-4 or an external parameter backup device, the replacement procedure is straightforward and can typically be completed during a planned maintenance window without requiring a full drive recommissioning.

Q4: What is your long-term supply commitment for this part?
TOPNLMS specializes in the supply of industrial automation spare parts for legacy and current-generation platforms. We maintain ongoing stock of the SDCS-IOB-3 and related DCS800 series boards to support customers with long-lifecycle plant assets. For customers requiring guaranteed supply over a multi-year maintenance contract, we offer reserved stock arrangements. Contact our sales team at [email protected] to discuss your long-term spare parts strategy.
