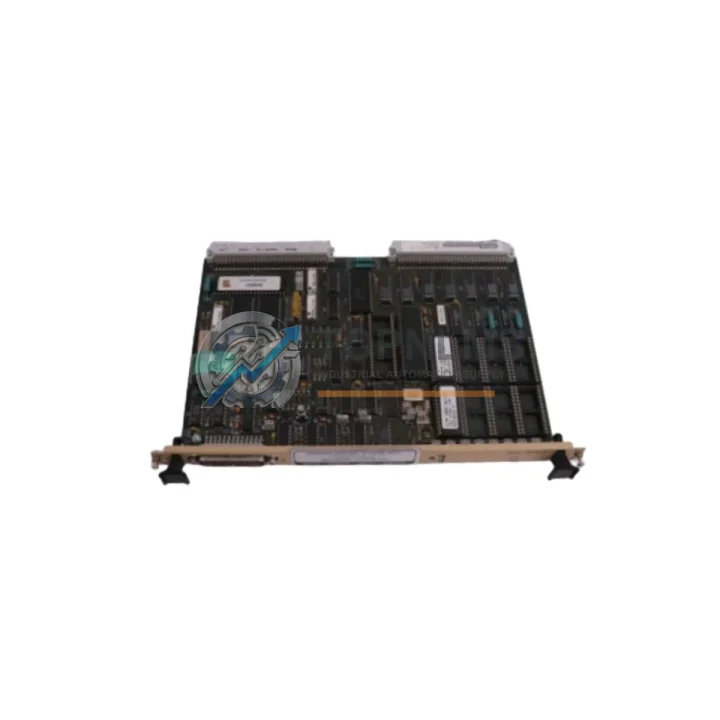

ABB SDCS-FEP-1 3BSE006309R0001 Replacement for SDCS Series

Product Overview

ABB SDCS-FEP-1 3BSE006309R0001 Replacement for SDCS Series: Smooth Transition & Legacy System Compatibility

The ABB SDCS-FEP-1 (part number 3BSE006309R0001) is a field excitation and overvoltage protection card designed for ABB’s SDCS series DC drive platform. As aging DCS-400, DCS-500, and DCS-600 drive systems approach end-of-life or encounter discontinued spare part availability, plant engineers and procurement teams increasingly rely on verified replacement modules to maintain production continuity without committing to a full drive replacement. This card serves as a direct functional replacement within the SDCS drive family, preserving existing wiring layouts, control architecture, and field bus communication configurations.

Upgrading or replacing the SDCS-FEP-1 does not require reprogramming the main drive controller in most retrofit scenarios. The card interfaces directly with the SDCS-CON-2 or SDCS-CON-4 control boards via the internal backplane connector, maintaining compatibility with existing SDCS-PIN-51 and SDCS-PIN-205 power interface boards. Engineers migrating from earlier SDCS-FEP revisions will find that the 3BSE006309R0001 variant retains the same terminal block pinout, simplifying field wiring verification during commissioning.

For facilities running ABB’s DCS-600 MultiDrive or DCS-400 standalone configurations, the SDCS-FEP-1 integrates without modification to the existing SDCS-DSL-4 serial communication link or SDCS-COM-8 fieldbus adapter. This is particularly valuable in applications where the drive communicates over PROFIBUS-DP or Modbus RTU, as no gateway reconfiguration is required. The card’s overvoltage protection circuit is factory-calibrated to the SDCS platform’s DC bus voltage range, eliminating the need for field adjustment after installation.

In retrofit projects where the original SDCS-FEP-1 has failed due to capacitor aging, thermal stress, or surge events, the replacement procedure typically involves powering down the drive, discharging the DC bus, removing the SDCS-FEP-1 from its card slot on the SDCS-PIN board assembly, and inserting the new module. No firmware flashing is required on the replacement card itself; the SDCS-CON control board retains all drive parameters. This significantly reduces planned maintenance windows and minimizes production downtime — a critical factor in continuous-process industries such as paper mills, steel rolling lines, and chemical plants.

When planning a broader SDCS platform modernization, the SDCS-FEP-1 replacement is often one component of a phased upgrade strategy. Facilities frequently source the SDCS-FEP-1 alongside the SDCS-CON-2 control board, SDCS-IOB-3 I/O expansion board, and SDCS-MEM-8 memory module to establish a complete spare parts inventory. For drives integrated into larger control cabinets, the SDCS-FEP-1’s compact form factor ensures it fits within the original card rack without requiring panel modifications. Power supply compatibility with the SDCS-POW-4 auxiliary power board is maintained, and the card draws within the same current budget as the original revision.

For systems where the SDCS drive communicates with a higher-level PLC — such as an ABB AC500, Siemens S7-300, or Allen-Bradley ControlLogix — the field excitation card replacement has no impact on the PLC program or the drive’s process data object (PDO) mapping. The SDCS-DSL-4 link layer remains transparent to the replacement, and existing HMI screens built on ABB Panel Builder or third-party SCADA systems continue to display drive status without modification.

Procurement teams evaluating this replacement should note that the 3BSE006309R0001 part number is the current active revision of the SDCS-FEP-1. Earlier suffix variants (R0000) are functionally equivalent but may differ in minor PCB layout revisions. TOPNLMS supplies the R0001 revision exclusively, ensuring compatibility with the latest SDCS-CON-4 firmware baseline. Each unit undergoes functional verification prior to shipment, covering field excitation output regulation, overvoltage trip threshold, and backplane communication integrity.

Compatibility Comparison Table

Seamless Upgrade Solutions

A complete SDCS platform retrofit typically involves more than a single card replacement. When sourcing the SDCS-FEP-1 3BSE006309R0001, many customers simultaneously procure the SDCS-CON-4 control board to upgrade from the older SDCS-CON-2 baseline, gaining improved diagnostic capability and expanded parameter sets. The SDCS-IOB-3 I/O expansion board is commonly added to support additional analog and digital I/O channels required by modernized process control strategies. For drives with aging power supply sections, the SDCS-POW-4 auxiliary power board is a recommended concurrent replacement to ensure stable card-level supply voltages.

Communication modernization projects often include the SDCS-COM-8 fieldbus adapter, enabling migration from legacy serial links to PROFIBUS-DP or DeviceNet without changing the drive’s core control architecture. In cabinet-level upgrades, the SDCS-DSL-4 serial link module is retained or replaced to maintain the drive-to-drive communication chain in multi-drive installations. For applications requiring signal conditioning between the SDCS drive and legacy analog instrumentation, DIN-rail-mounted signal isolators are installed alongside the card replacement to eliminate ground loop interference. HMI panels connected to the drive — whether ABB CP600 series or third-party Weintek and Siemens TP panels — continue to operate without screen redesign, as the drive’s process data interface remains unchanged. Memory module SDCS-MEM-8 is also frequently stocked as a preventive spare alongside the SDCS-FEP-1 to cover all critical card positions in a single procurement cycle.

Retrofit Guidance FAQ

Q: Does replacing the SDCS-FEP-1 require rewiring the field excitation terminals?
A: No. The 3BSE006309R0001 uses the same terminal block pinout as all prior SDCS-FEP-1 revisions. Existing field wiring can be reconnected directly without modification.

Q: Will the drive parameters be lost during card replacement?
A: No. Drive parameters are stored on the SDCS-CON control board, not on the SDCS-FEP-1. Replacing the field excitation card does not affect the parameter set.

Q: Is the SDCS-FEP-1 compatible with both PROFIBUS-DP and Modbus RTU communication?
A: Yes. The fieldbus protocol is managed by the SDCS-COM-8 adapter and SDCS-CON board. The SDCS-FEP-1 replacement has no impact on the communication configuration.

Q: Can this card be installed in a DCS-600 MultiDrive cabinet?
A: Yes. The SDCS-FEP-1 3BSE006309R0001 is compatible with DCS-600 MultiDrive configurations using the standard SDCS card rack. No physical panel modification is required.

Q: What is the typical installation time for a field replacement?
A: With the DC bus fully discharged and the drive powered down, card swap and recommissioning typically takes 30–60 minutes for a trained drive technician familiar with the SDCS platform.

Q: Is the overvoltage protection threshold factory-set or field-adjustable?
A: The overvoltage trip threshold is factory-calibrated for the SDCS platform DC bus voltage range. No field adjustment is required or recommended after installation.

Warranty Assurance

Every SDCS-FEP-1 3BSE006309R0001 supplied by TOPNLMS carries a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes a multi-point functional verification covering field excitation output regulation accuracy, overvoltage protection trip response, backplane communication integrity, and visual inspection for component condition and PCB integrity. Units that do not pass all verification checkpoints are quarantined and not shipped.

In the event of a warranty claim, TOPNLMS provides replacement support with priority processing. Our technical team is available to assist with installation guidance, fault diagnosis, and compatibility confirmation before and after shipment. Customers receive a test report upon request, documenting the pre-shipment verification results for their quality records.

Standard lead time for in-stock units is 3–7 business days for international shipments via DHL Express or FedEx International Priority, with tracking provided at dispatch. Expedited shipping options are available for urgent plant breakdown situations. All export documentation, including commercial invoice and packing list, is prepared to facilitate smooth customs clearance.

For volume procurement, blanket order arrangements and consignment stock programs are available to ensure continuous spare parts availability without repeated sourcing cycles.
