ABB SDCS-DSL-4 Replacement Solution for DCS-600 Series

Product Overview

ABB SDCS-DSL-4 Replacement Solution for DCS-600 Series: Smooth Transition, Zero Compromise

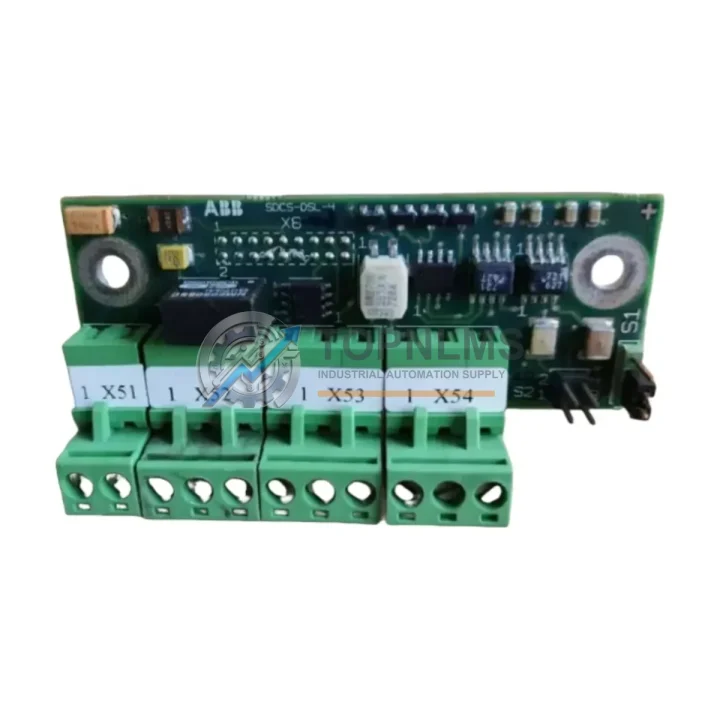

When a legacy ABB DCS-600 Series DC drive system reaches end-of-life or a critical signal processing board fails on the production floor, every hour of unplanned downtime translates directly into lost revenue and operational risk. The ABB SDCS-DSL-4 Signal Processing Board is the authoritative drop-in replacement for aging or failed DSL boards within the DCS-600 drive platform, enabling maintenance engineers and procurement teams to restore full drive functionality with minimal disruption to existing wiring, control architecture, and commissioning parameters.

The SDCS-DSL-4 serves as the central signal processing and interface board within the DCS-600 drive chassis. It manages the critical communication bridge between the main control board — typically the SDCS-CON-4 — and the power electronics section, handling analog and digital signal conditioning, encoder feedback processing, and real-time data exchange across the drive’s internal bus. When this board degrades or fails, the entire drive becomes inoperable, making rapid, reliable replacement a top procurement priority.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful DCS-600 drive restoration or system upgrade rarely involves a single component. In practice, maintenance teams replacing the SDCS-DSL-4 often simultaneously inspect or replace adjacent boards and modules to ensure the entire drive system returns to full operational integrity.

The SDCS-CON-4 main control board is the most common companion replacement — it works in direct coordination with the SDCS-DSL-4 to execute speed and torque control algorithms. If the DSL-4 has failed due to a power surge or overcurrent event, the CON-4 should be inspected as well, as both boards share the same internal power rail. Similarly, the SDCS-PIN-51 and SDCS-PIN-205 power interface boards govern the gate firing signals to the thyristor bridge; a compromised DSL-4 can sometimes cause erratic firing patterns that stress these boards over time.

For facilities upgrading from older DCS-500 Series drives to the DCS-600 platform, the migration path typically involves replacing the legacy SDCS-DSL-3 or equivalent signal boards with the SDCS-DSL-4, while retaining the existing motor, transformer, and cabinet infrastructure. This approach dramatically reduces capital expenditure compared to a full drive replacement. The SDCS-FEX-2 field excitation board and SDCS-FEX-425 are also commonly upgraded in parallel, as they interface directly with the DSL board for field current regulation.

On the communications side, many DCS-600 installations use the SDCS-COM-8 fieldbus adapter to connect the drive to PROFIBUS-DP, Modbus RTU, or DeviceNet networks. When replacing the DSL-4, it is advisable to verify that the COM-8 adapter firmware remains compatible with the replacement board’s signal interface. In larger control architectures, the DCS-600 drives are often supervised by an ABB AC800M controller or a third-party SCADA system via the NDPA-02 or NINT-02 communication interface modules — all of which remain fully compatible after a DSL-4 board swap.

For cabinet-level integration, terminal blocks, shielded signal cables, and DIN-rail mounted signal isolators should be inspected during the replacement process to ensure signal integrity is maintained across the entire control loop. TOPNLMS maintains stock of associated DCS-600 spare parts to support complete system restoration in a single procurement cycle.

Retrofit Guidance FAQ

Q1: Does replacing the SDCS-DSL-4 require rewiring the drive cabinet?
No. The SDCS-DSL-4 uses the same board connectors and form factor as the original DSL board in the DCS-600 chassis. Replacement is a direct board swap — remove the failed board, seat the replacement, and reconnect the existing ribbon cables and signal connectors. No rewiring, no cabinet modification, and no changes to the motor or transformer connections are required.

Q2: Will my existing drive parameters and PID tuning be preserved after the board replacement?
Drive parameters in the DCS-600 are stored in the SDCS-CON-4 main control board’s non-volatile memory, not in the DSL-4. Replacing the DSL-4 alone does not erase or alter stored parameters. However, TOPNLMS recommends performing a full parameter backup using the ABB DriveWindow or DriveWindow Light software before any board replacement as a standard commissioning precaution.

Q3: Is the SDCS-DSL-4 compatible with all DCS-600 frame sizes (R1 through R7)?
Yes. The SDCS-DSL-4 is designed for use across the DCS-600 drive family, covering frame sizes R1 through R7. Compatibility extends to both single-quadrant and four-quadrant (regenerative) drive configurations. If your installation uses a DCS-600 MultiDrive or common DC bus configuration, please contact TOPNLMS to confirm the specific board revision required.

Q4: What communication protocols does the DCS-600 support after the DSL-4 replacement?
The DCS-600 platform supports PROFIBUS-DP, Modbus RTU, DeviceNet, and ABB’s proprietary DDCS protocol via optional fieldbus adapter modules. The SDCS-DSL-4 replacement does not affect fieldbus adapter compatibility. All existing network configurations, node addresses, and baud rate settings remain intact after the board swap.

Warranty Assurance

Every SDCS-DSL-4 Signal Processing Board supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes a structured pre-shipment inspection protocol that includes visual inspection for physical damage, connector integrity verification, and functional bench testing where applicable. Units that do not meet our quality standards are quarantined and never shipped to customers.

In the event of a warranty claim, TOPNLMS provides a straightforward replacement or refund process. Our technical support team — reachable at [email protected] or +86 18359293191 — is available to assist with installation guidance, compatibility verification, and post-installation commissioning questions. We understand that industrial spare parts procurement is a high-stakes decision, and we back every shipment with the documentation and after-sales support that B2B buyers require.

TOPNLMS maintains a dedicated inventory of ABB DCS-600 Series spare parts, including the SDCS-DSL-4 and related boards, to support rapid dispatch for urgent replacement scenarios. Standard lead times are 3–7 business days for international shipments from Xiamen, China, with expedited options available upon request. All units are shipped in anti-static packaging with full traceability documentation.

For volume procurement, long-term supply agreements, or technical pre-sales consultation, contact our industrial automation team directly. We serve OEMs, system integrators, plant maintenance departments, and MRO procurement teams across Asia, Europe, the Middle East, and the Americas.
